QN1325 ATC cnc router with 700mm high z axis for wood mould

Release Time:2023-02-21 11:39 Reading Times:

QN1325 ATC cnc router with 700mm high z axis for wood mould

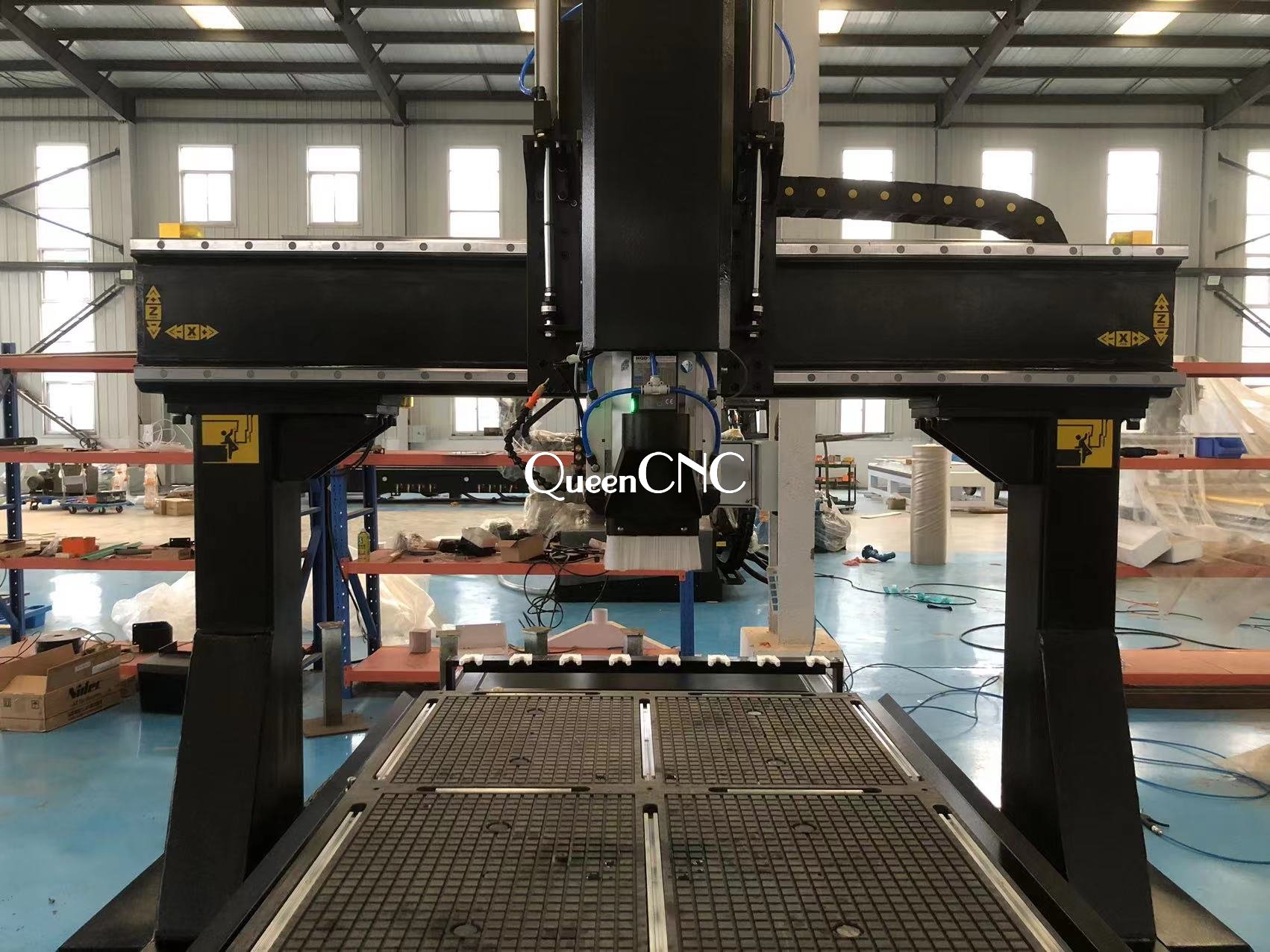

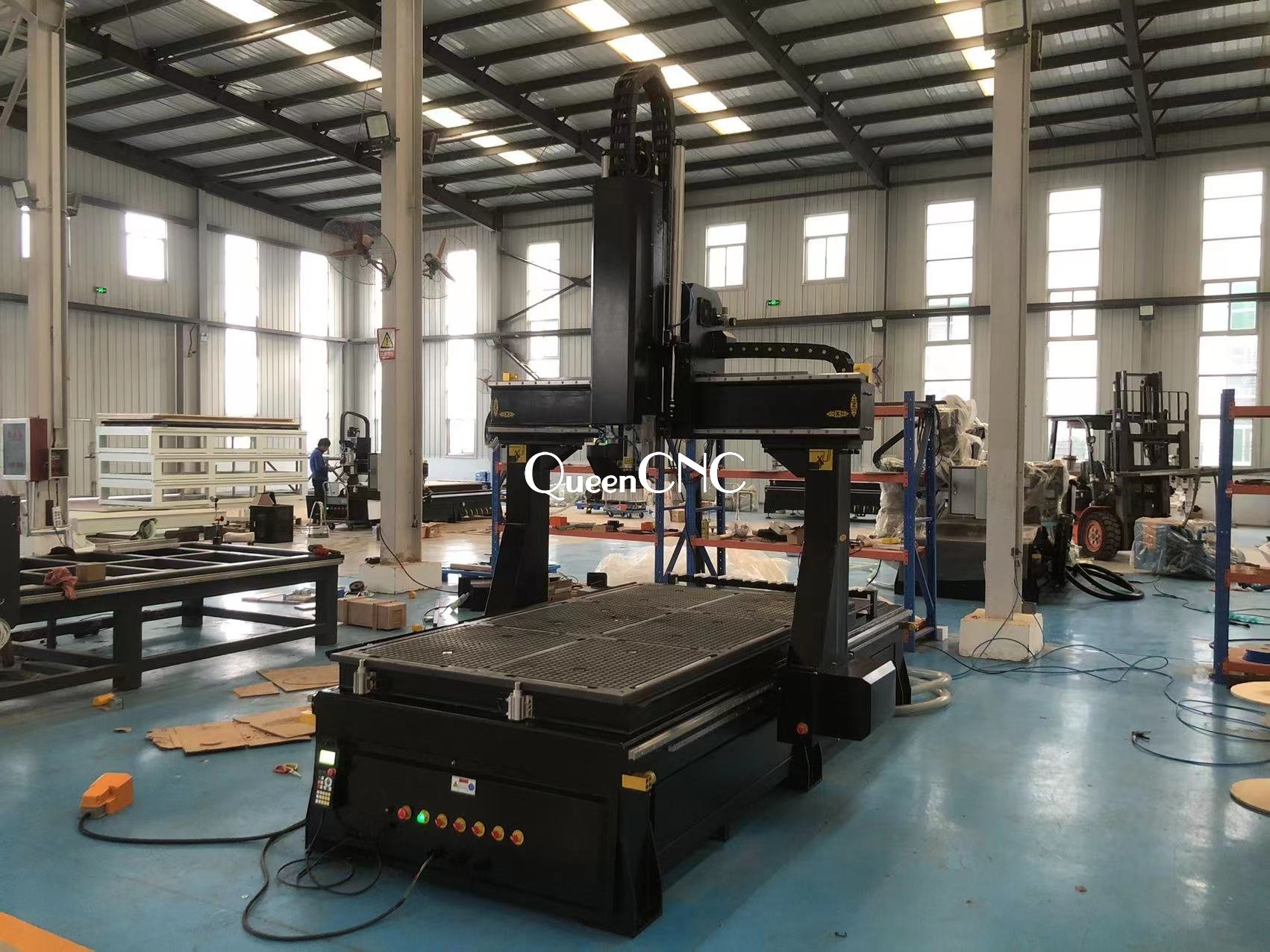

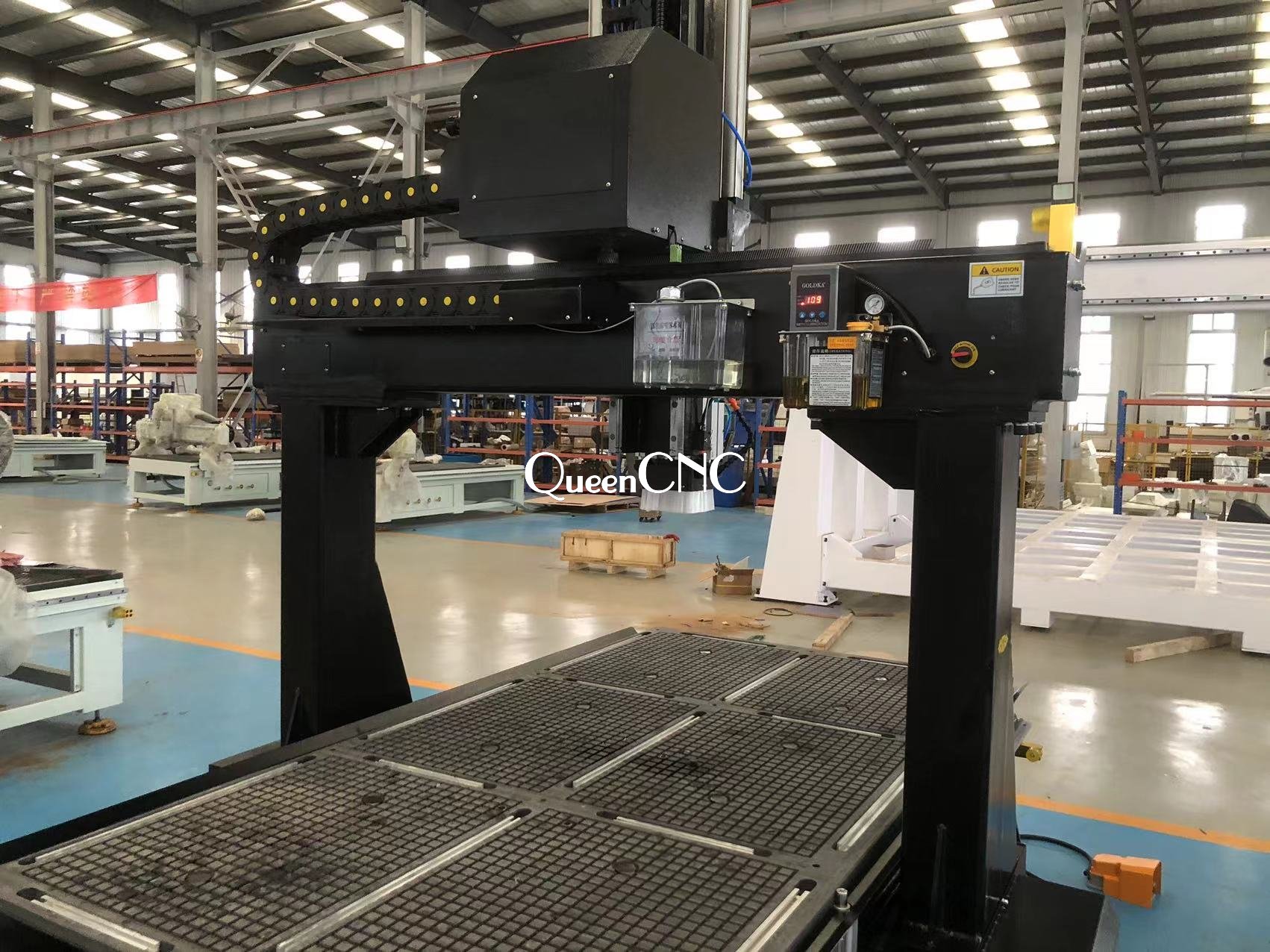

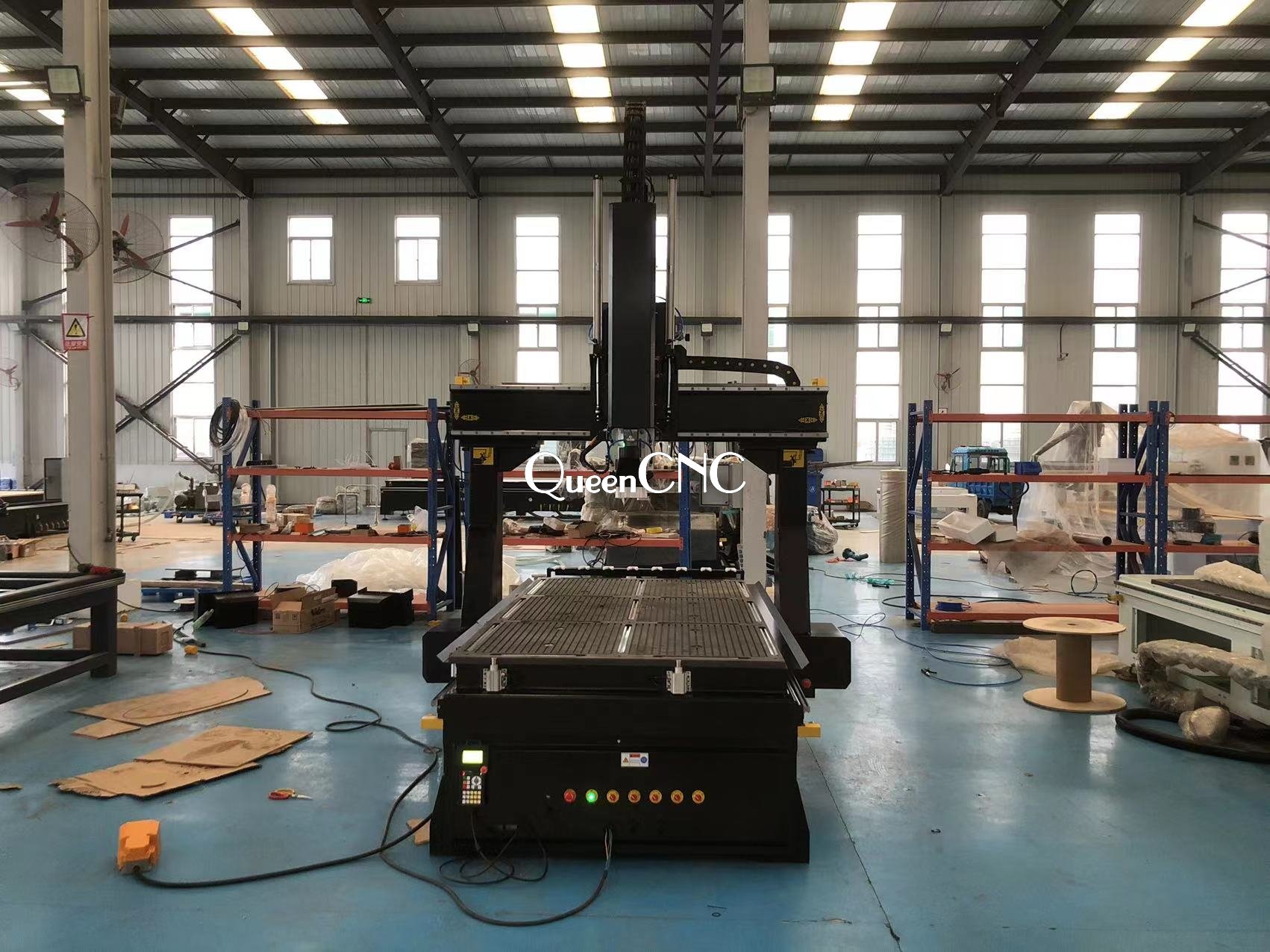

More machine pics:

This is an economic atc cnc router with inner control cabinet to save space,a very suitable machine for customers who has a limited budget and space.
Technical parameter of QN1325 ATC cnc router with 700mm high z axis for wood mould

Model	QN1325 linear type auto tool changer cnc router
Working size	13002500700mm
Spindle	9.0kw air cooled auto tool changer spindle
Driver motor	leadshine servo motors and drivers 750w
Inverter	Fuling inverter 11kw
Machine table	Vacuum and T-slot combined
Positioning system	Yes
Control system	Mach3 Nk105 G3 control system
Linear rails	Taiwan T-win linear square rails
Z axis transmission	Germany Ball screw transmission
Transmission	Rack and pinion
Auto Oiling system	Yes
Voltage	380v,Three phase,50HZ/220v,single phase
Precision	<0.1mm
Max speed	70m/min
Tool sensor	Yes
Limits	Yes
Tool chuck	8 pcs
Machine frame	Thicken heavy duty
Net weight	1700KG
Gross weight	1800KG
