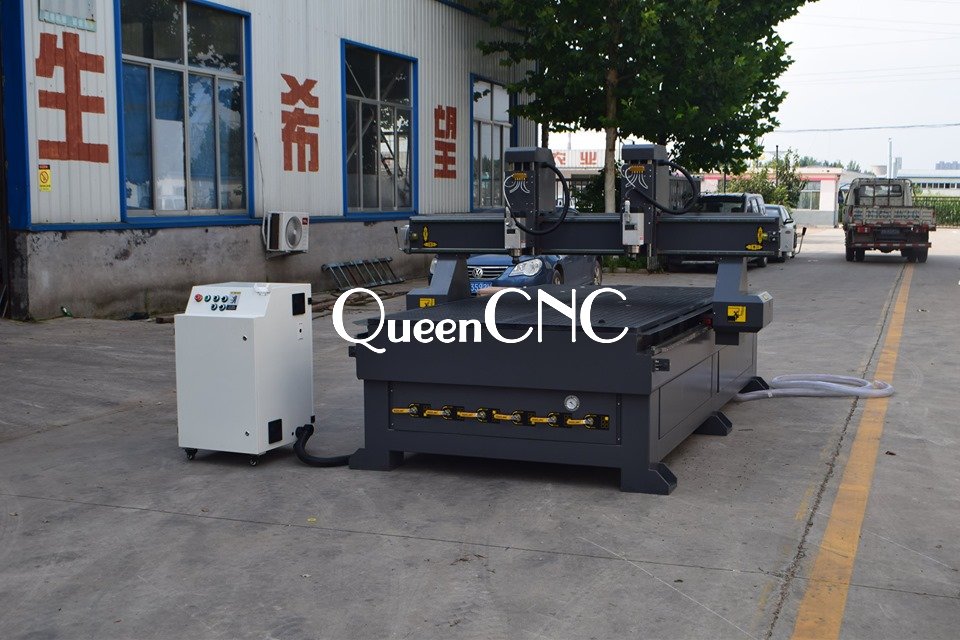

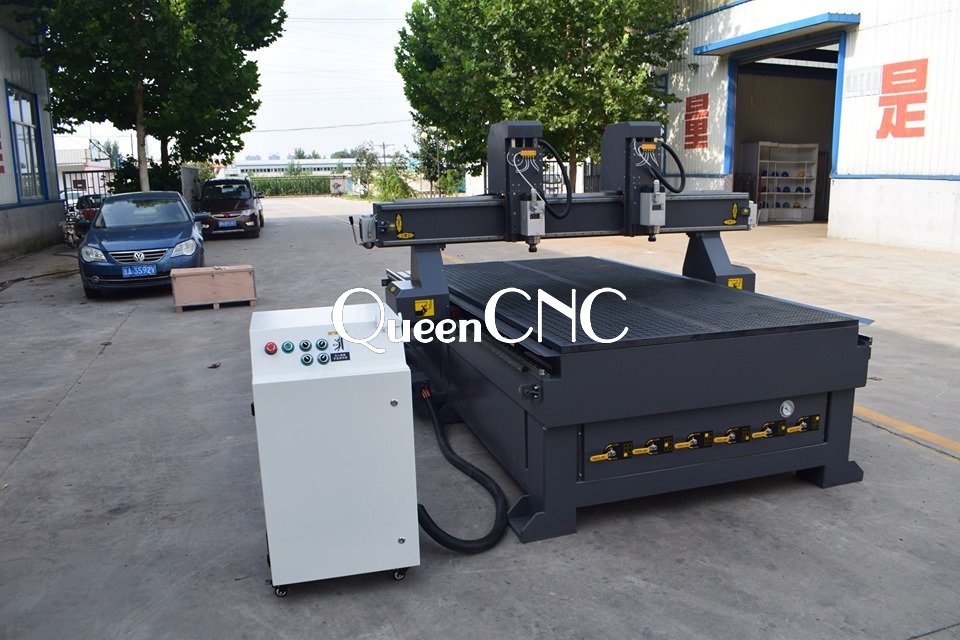

QN1325 dual heads woodworking cnc router machine

Release Time:2023-01-31 12:19 Reading Times:

Features of QN1325 dual heads woodworking cnc router machine:
· It has two individual motion heads; It refers to that each head has its own X axis and Z axis. Using one or two head, as you like, very flexible.
· Machine base is heavy duty load; welded with thick square tubes and milled by cnc machining center, not a hand-finished job at all.
· The design of the combined table is very flexible for both cutting and engraving. When cutting wood, vacuum table can hold the wood by suction in shortest time, when engraving 3D on wood, can hold the wood by clamps to save power.
· In order to make a high-performance and durable machine, all the components are the ones with the best performance and durability among the similar products. • All motion axes are supported by precise square linear guideways and bearings; besides this, there are a central lubricating system for the guideways and bearings.
· Re-carving function after power failure.

Technical Parameter of QN1325 dual heads woodworking cnc router machine:

Parameters	Dual heads cnc router
Machine Model No.	QN1325-2 / QN2030-2 CNC Router
X Y Z axis working area	1300x2500x200mm or 2000x3000x200mm
Spindle	4.5kw (3.5KW/6KW/7.5KW/9KW are options)
X Y Z traveling positioning accuracy	+-0.01/2000mm
Table	Combined vacuum table and T slot table,can hold the material by clamps or suction
Vacuum pump	5.5KW/7.5KW, water cooling or air cooling
X Y Z rail and transmission	Taiwan TBI ball screw and gear rack
Max.rapid travel rate	30m/min for stepper machine
Max.working speed	15m/min for stepper machine
Spindle speed	0-24000RPM or 0-18000RPM
Driver motors	Stepper (Servo is option)
Working voltage	220V/380V/50HZ/60Hz
Command language	G code
Control system	Mach 3 controller (others are optional)
Software compatibility	Artcam,Ucancam,Type3,Powermill,Mastercam,Vcarve
Running environment	Temperature:0~45°C Relative humidity:30%~75%
Lubricate system	Yes
Frame structure	Thick and rigid seamless steel tube welding structure
Optional parts	1). 4th Rotary for processing columns 2). Spray mist system for aluminum processing 3). Roller wheels for pressing thin materials
