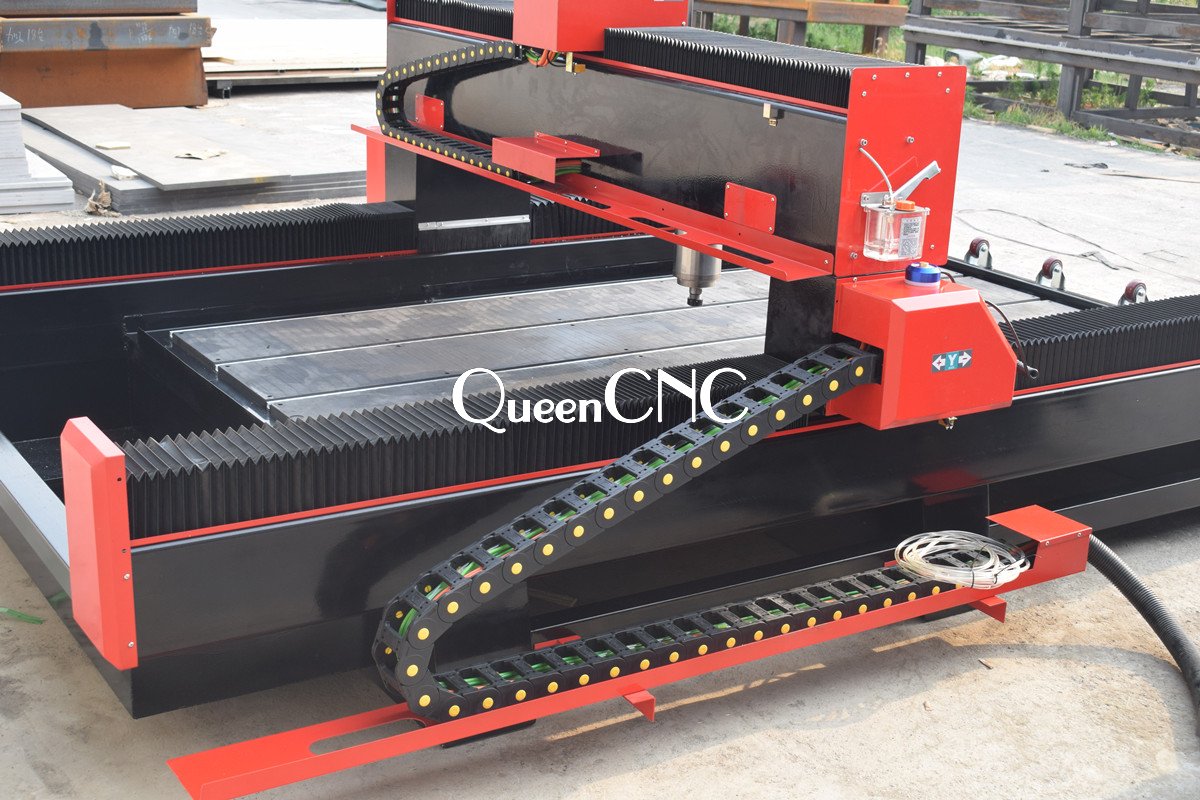

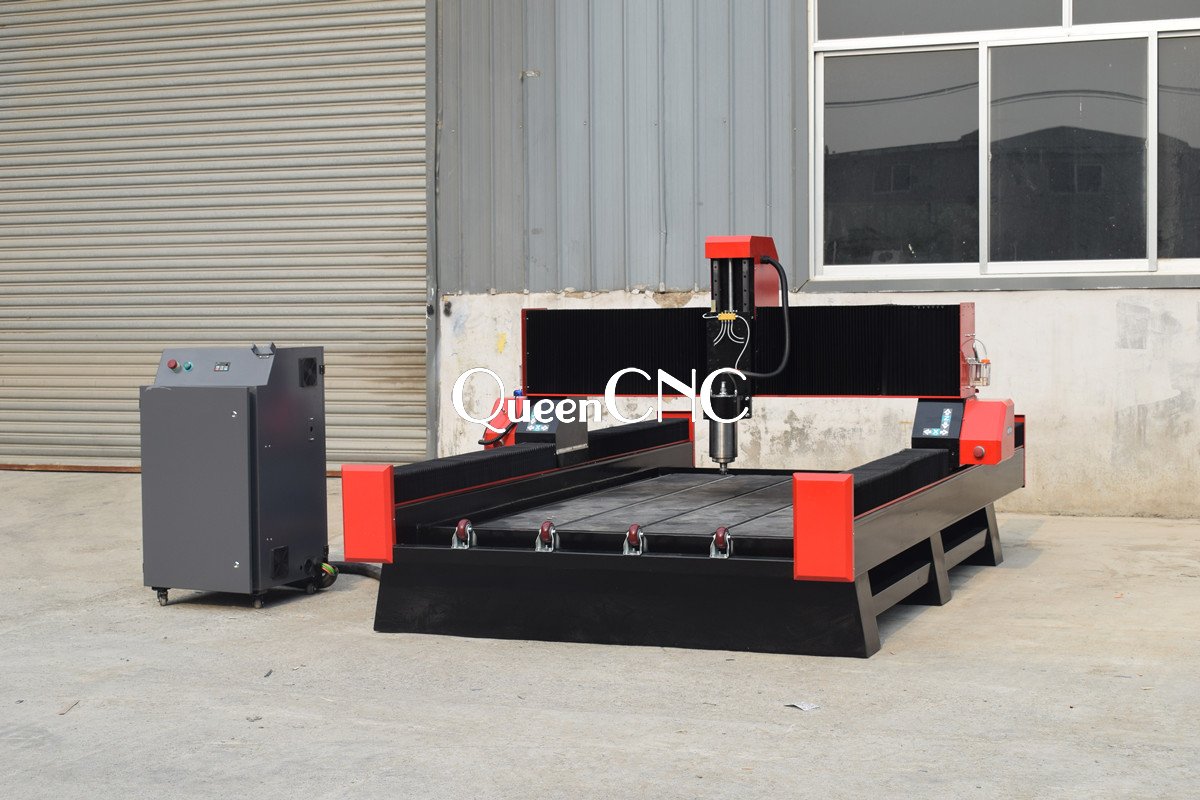

Cnc Router
| working area | (X=1300mm)*(Y=2500mm) |
| Max Feeding Height | 300mm |
| Machine Body | 8mm thickness welded steel tube, cast iron vertical shafts and steel gantry |
| Working table | Aluminum T-slot table with PVC |
| Guide rail | Hiwin linear square guide rail |
| Driving method | Taiwan Gears Rack drive for X Y-axis,lead screw drive for z-axis |
| Motor and driver | Stepper motor and Leadshine driver |
| Spindle Motor | 5.5KW water cooling spindle |
| Inverter | Fuling inverter |
| Spindle speed | 0-24000rpm/min |
| Spindle collect size | ER25 |
| Voltage | 3phase, 50-60Hz |
| Working speed | 0-12000mm/min |
| Machine Accuracy | <0.05/300mm |
| Control system | Ncstudio control system |
| Compatible software | Type3/Castmate/Coreldraw/AutoCADand other CAM/CAD software |
