Cnc Router
| Parameters | Standard Specifications |
| Working Area | 2000*4000*200mm |

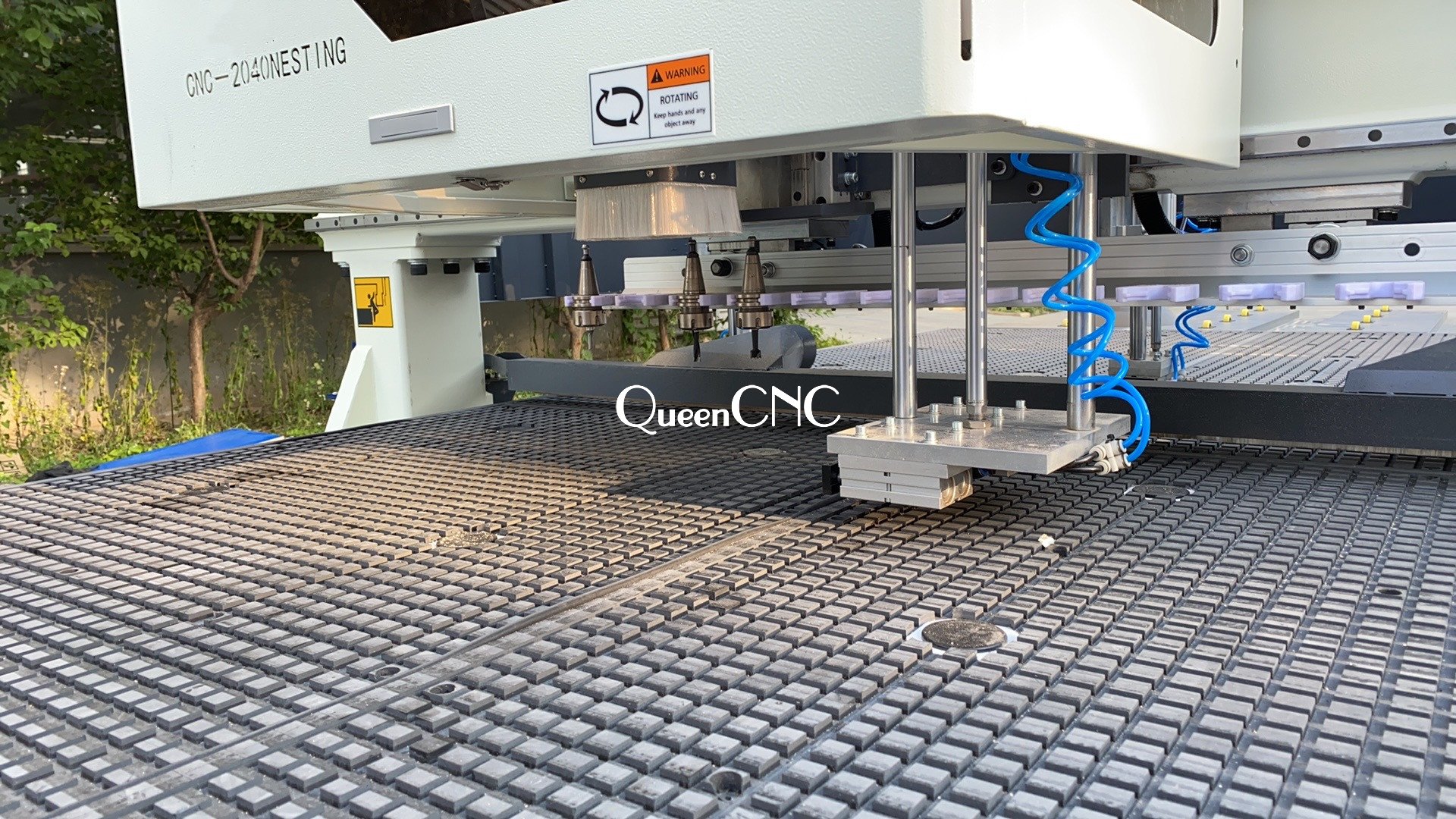

| Table Surface | Vacuum table |
| X,Y Transmission | Gear and HENRION 2M helical Rack transmission |
| Z Transmission | TBI Ball 2510 screw transmission |
| XYZ Guide Rail | T-WIN 30mm Guide Rail |
| XYZ Traveling Positioning Accuracy | 0.02mm/2000mm |
| Max Rapid Travel Rate | 50000mm/min |
| Max Working Speed | 20000mmin |
| Spindle Power | HQD9kw air cooled ATC spindle,ISO30 tool holder |
| Spindle Speed | 0-24000RPM |
| Drive Motors | Leadshine 1500w servo motor and driver |
| Reducer | Japan SHIMPO |
| Inverter | FULING 11KW inverter |
| Operating System | Taiwan SYNTEC control system |
| Cable length from machine to control cabinet | 3m or customer’s requirement |
| Tool sensor | Automatic |
| Tool changer | 16pcs following type tool changer |
| Positioning cylinder | X –3pcs,Y---4pcs |
| Working Voltage | 220V/3PH/50HZ,380V/3PH/50HZ |
| Command Language | G Code |
| Interface | USB |
| Software Compatibility | Artcam,Ucancam,etc. |
| Running Environment |
Temperature:0℃-45℃ Relative Humidity:30%-75% |
| Machine Size | 4100*2200*2200mm |
| Machine Weight |
Net Weight:2000KGS Gross Weight:2300KGS |
