4 axis auto tool changer cnc router machine for wooden doors
|
X, Y Working size
|
1300*2500/1500*3000/2000*3000/2000*4000mm
|
|
Z feed Height
|
400mm (500/600/700/800mm available)
|
|
Table Surface
|
Vacuum and T-slot Combined
|
|
Pump
|
7.5KW air cooling pump
|
|
X, Y Structure
|
Rack and Pinion Drive, Linear Square Guide Rail
|
|
Z Structure
|
Linear Square Guide Rail and Ball Screw
|
|
Max. Power Consumption
|
(Without spindle) 2.0Kw
|
|
Max. Rapid Travel Rate
|
40m/min
|
|
Max. Working Speed
|
30m/min
|
|
Spindle Power
|
HQD 9KW air cooling spindle
|
|
Spindle Speed
|
0-24000RPM
|
|
Inverter
|
Delta 11KW
|
|
Drive Motors
|
SYNTEC 1000W bus control servo motors
|
|
Tools magazine
|
Linear tools changer 8 tools (Disc tools changer available)
|
|
Working Voltage
|
AC380V/50/60Hz
|
|
Command Language
|
G code
|
|
Control System
|
SYNTEC 60WE 4 axis system
|
|
X,Y,Z repositioning Accuracy
|
±0.01mm
|
|
X,Y Resolution
|
<0.01mm
|
|
Software
|
Artcam + post processor
|
|
Running Temperature
|
0 degree - 45 degree
|
|
Relative Humidity
|
30% - 75%
|
|
Optional Parts
|
Rotary system, Mist-cooling system (metal working)
|

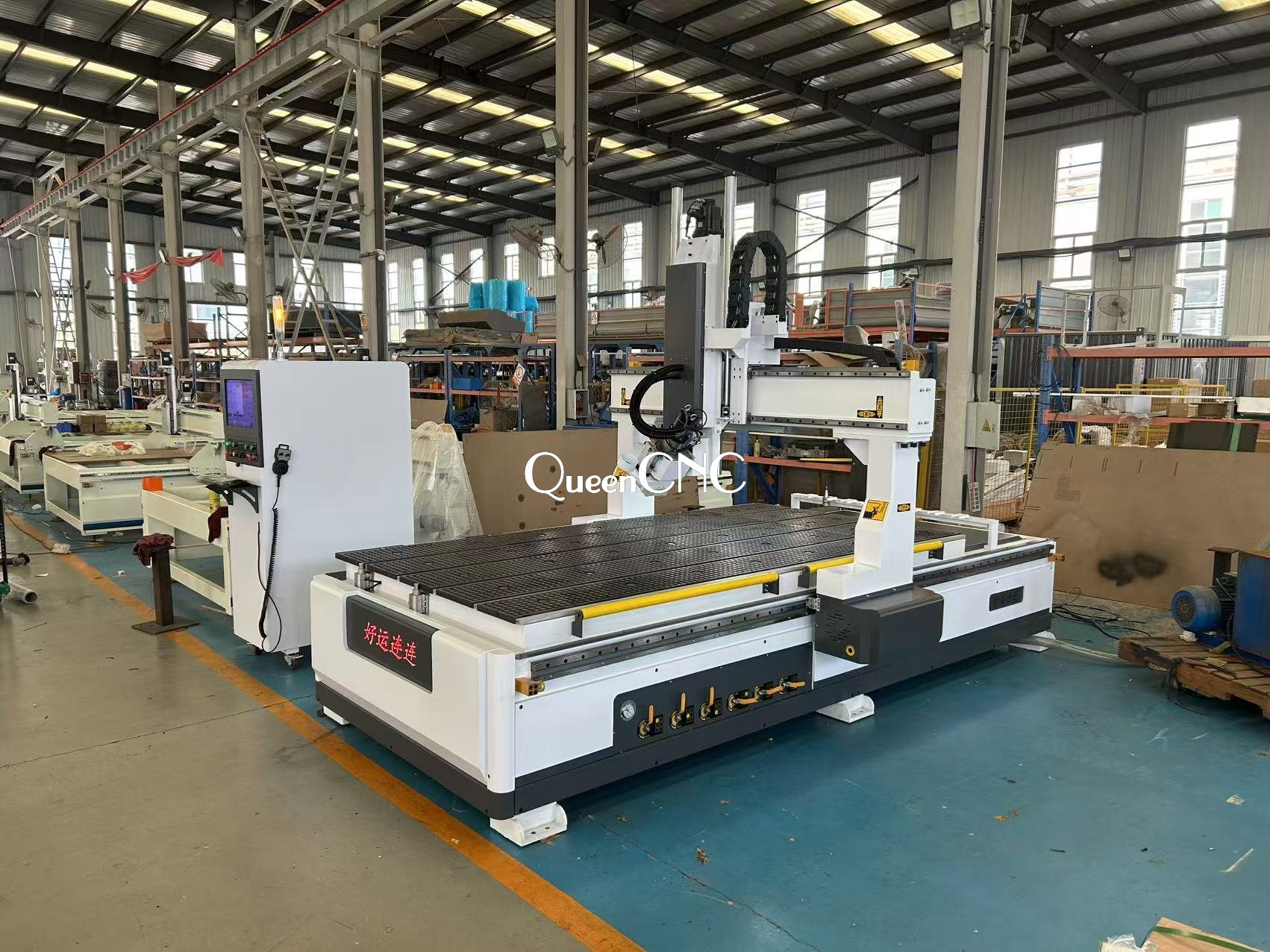

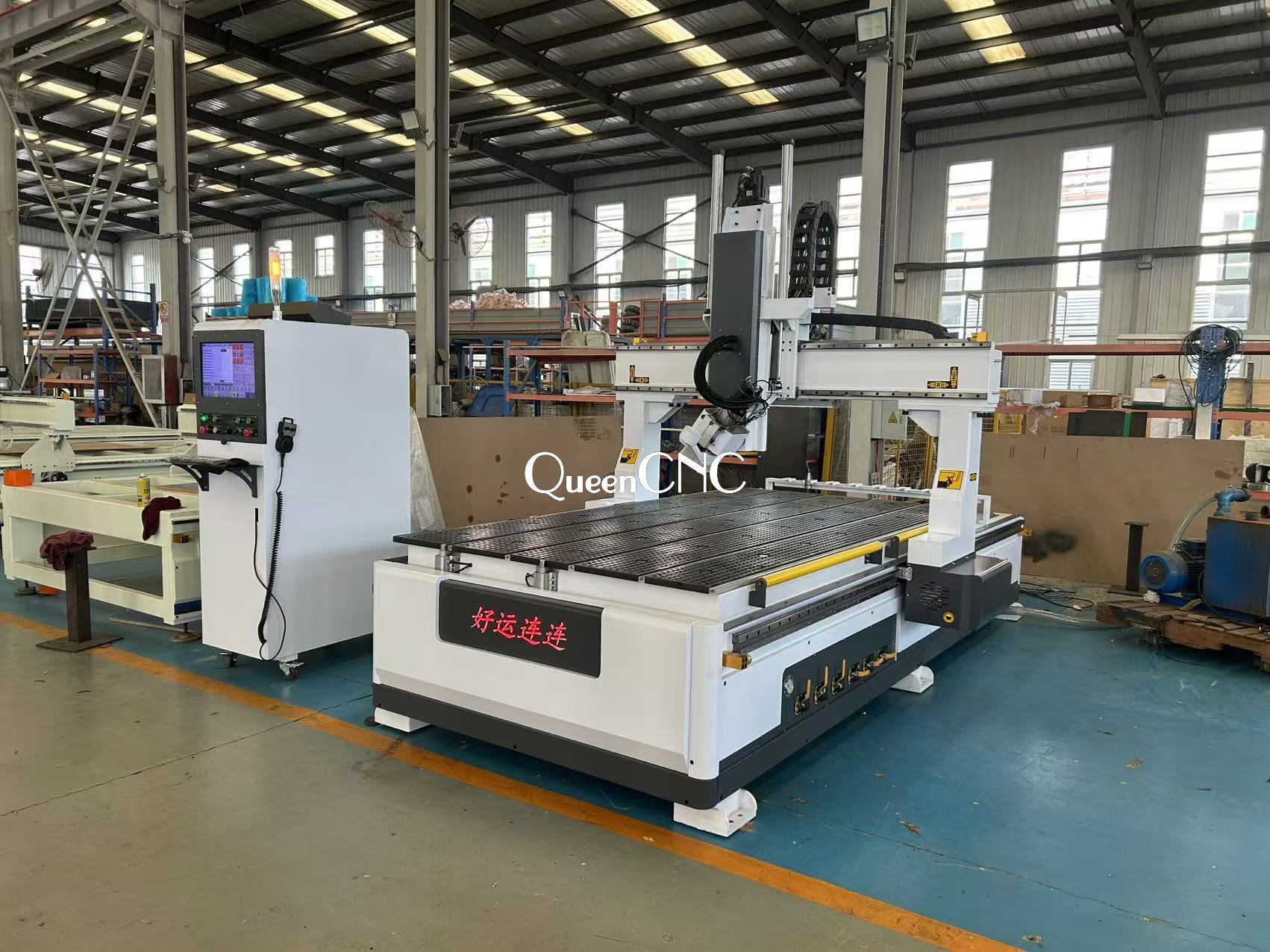

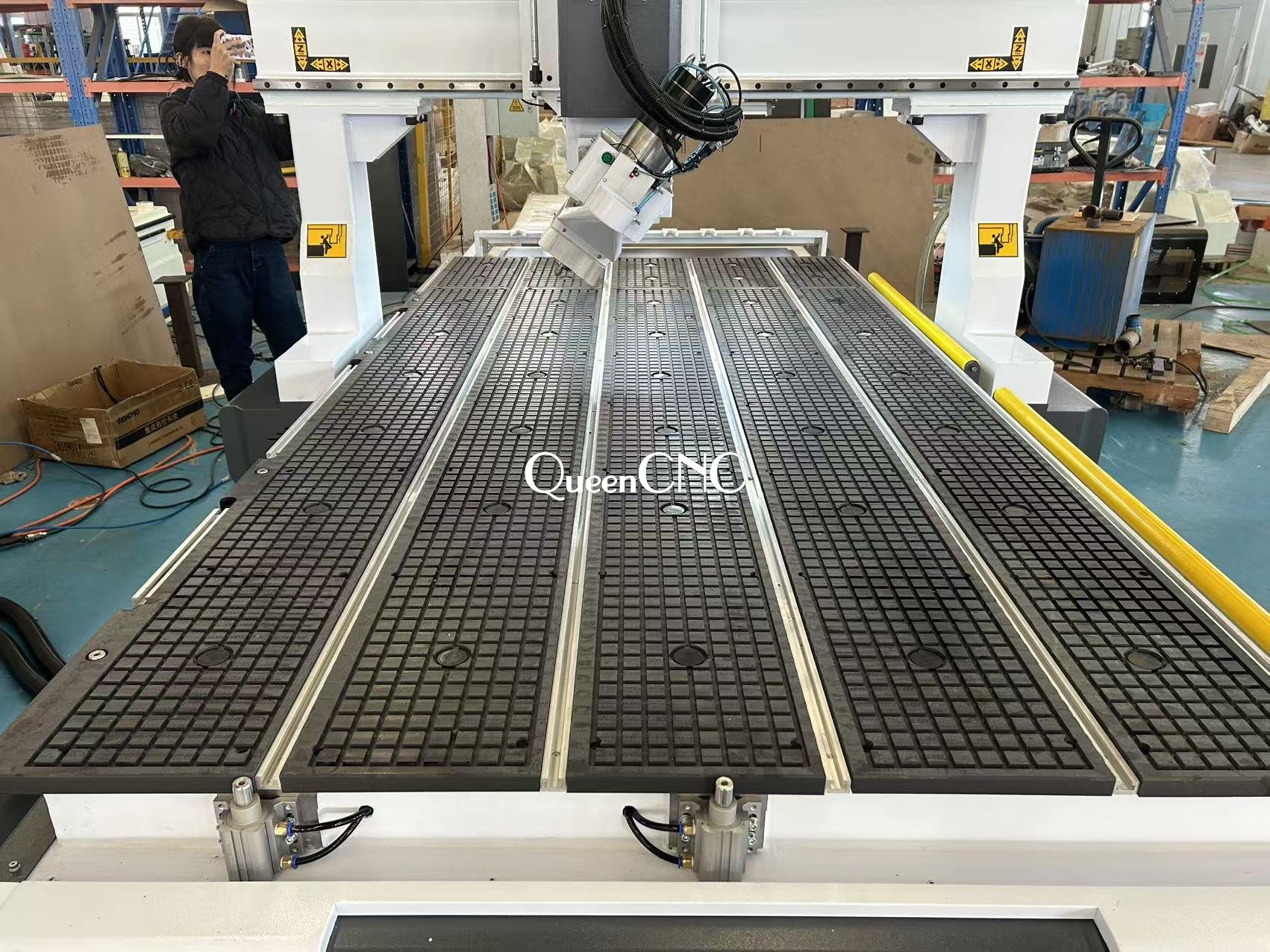

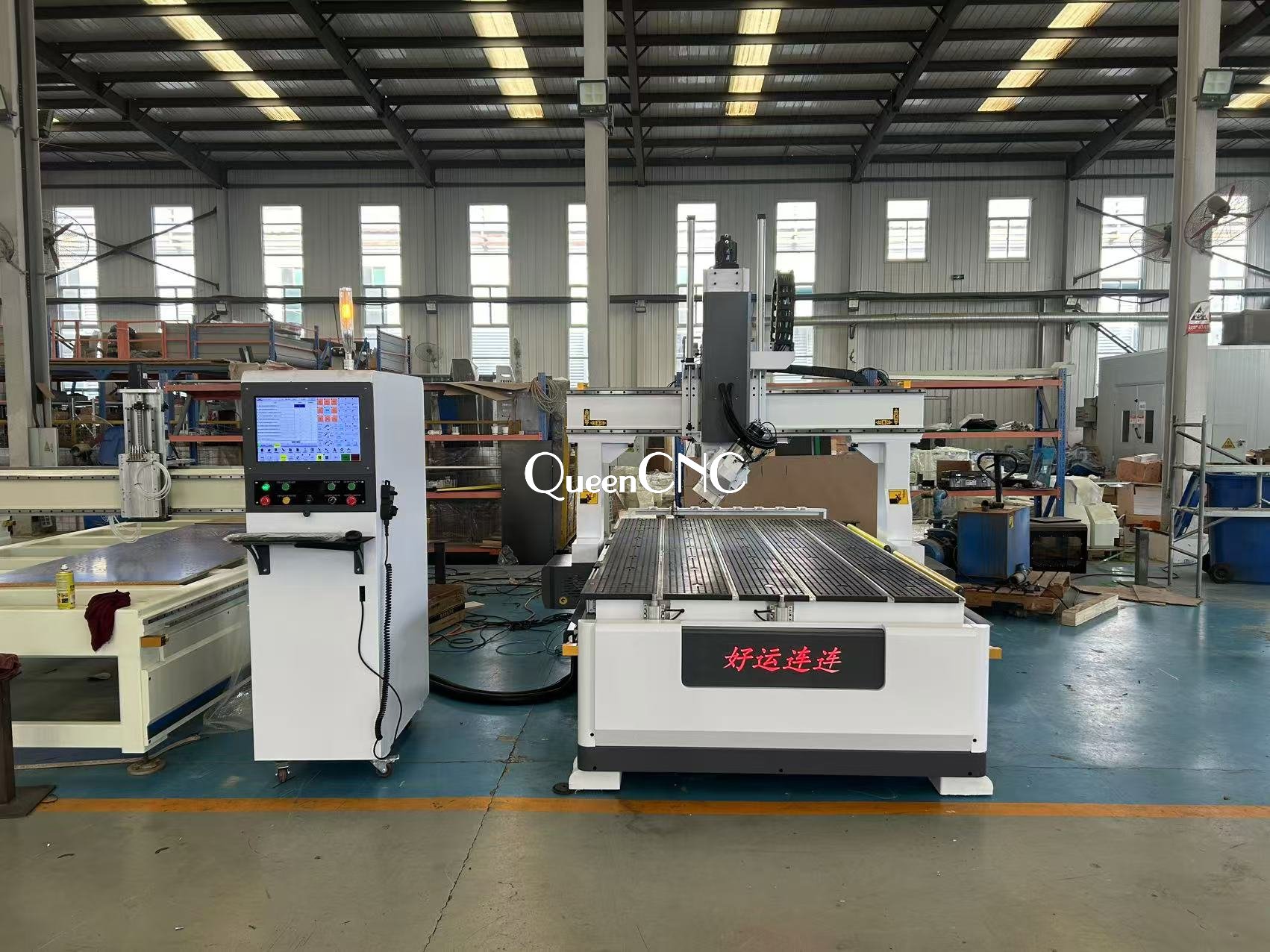

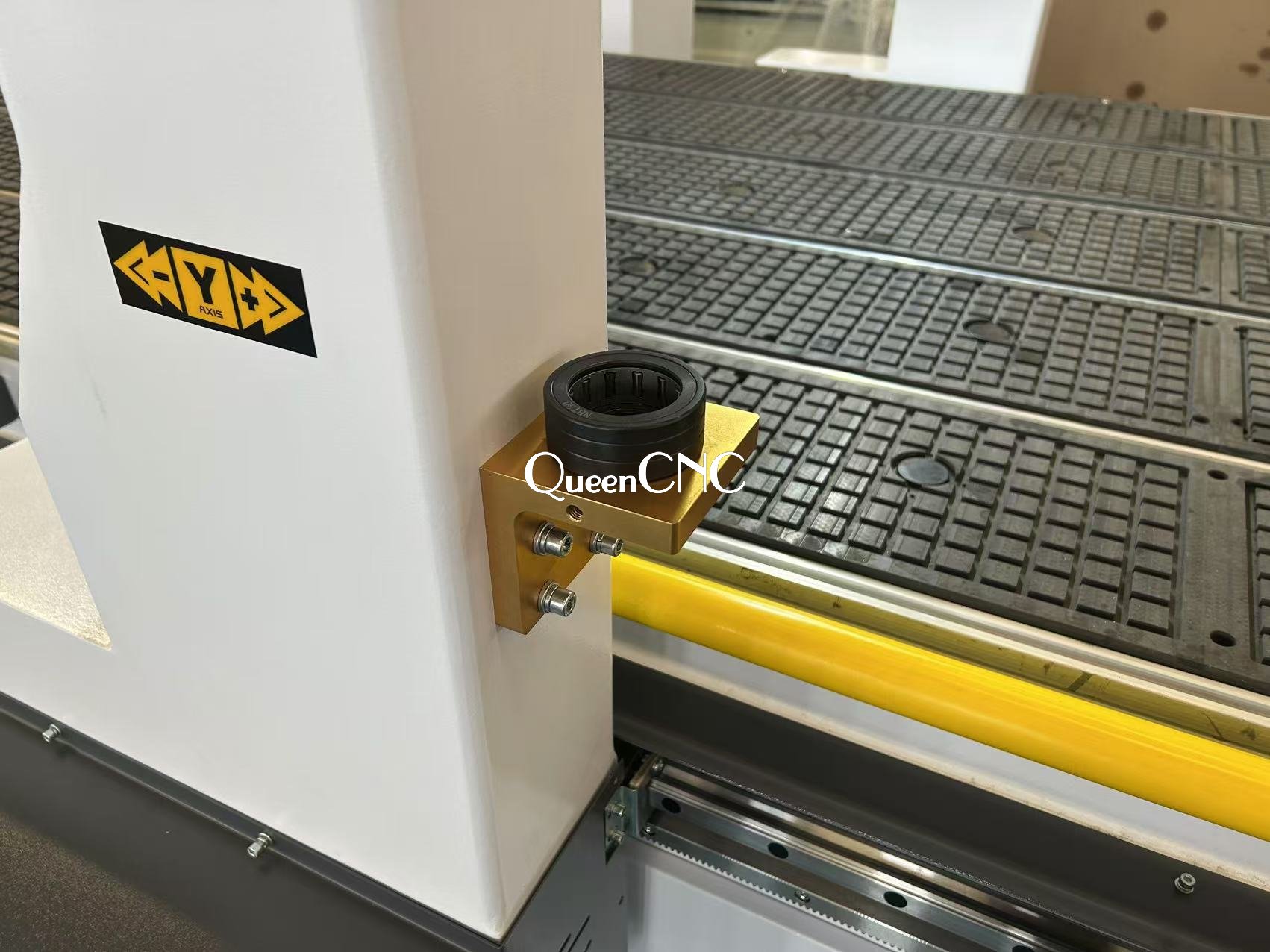

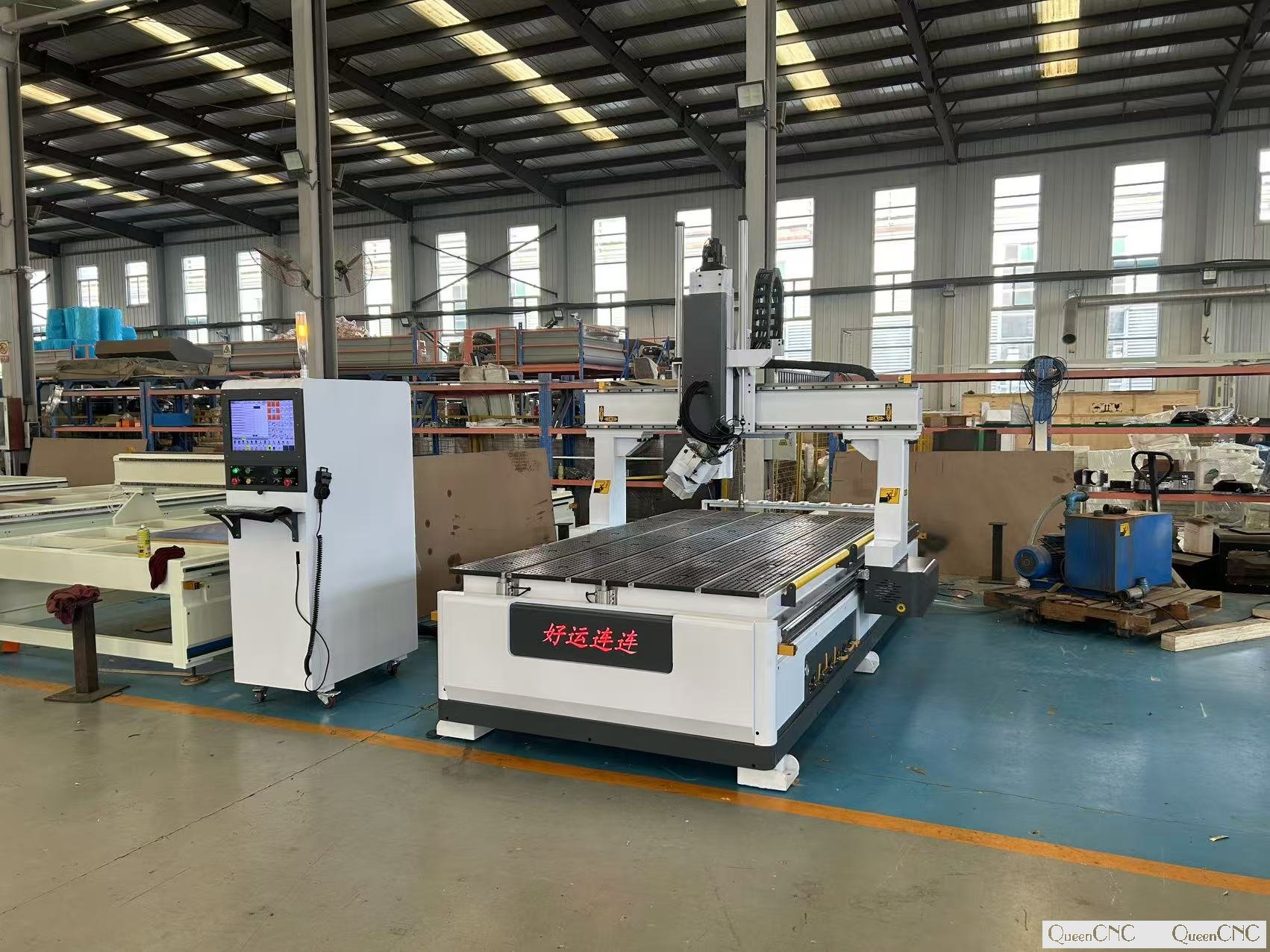

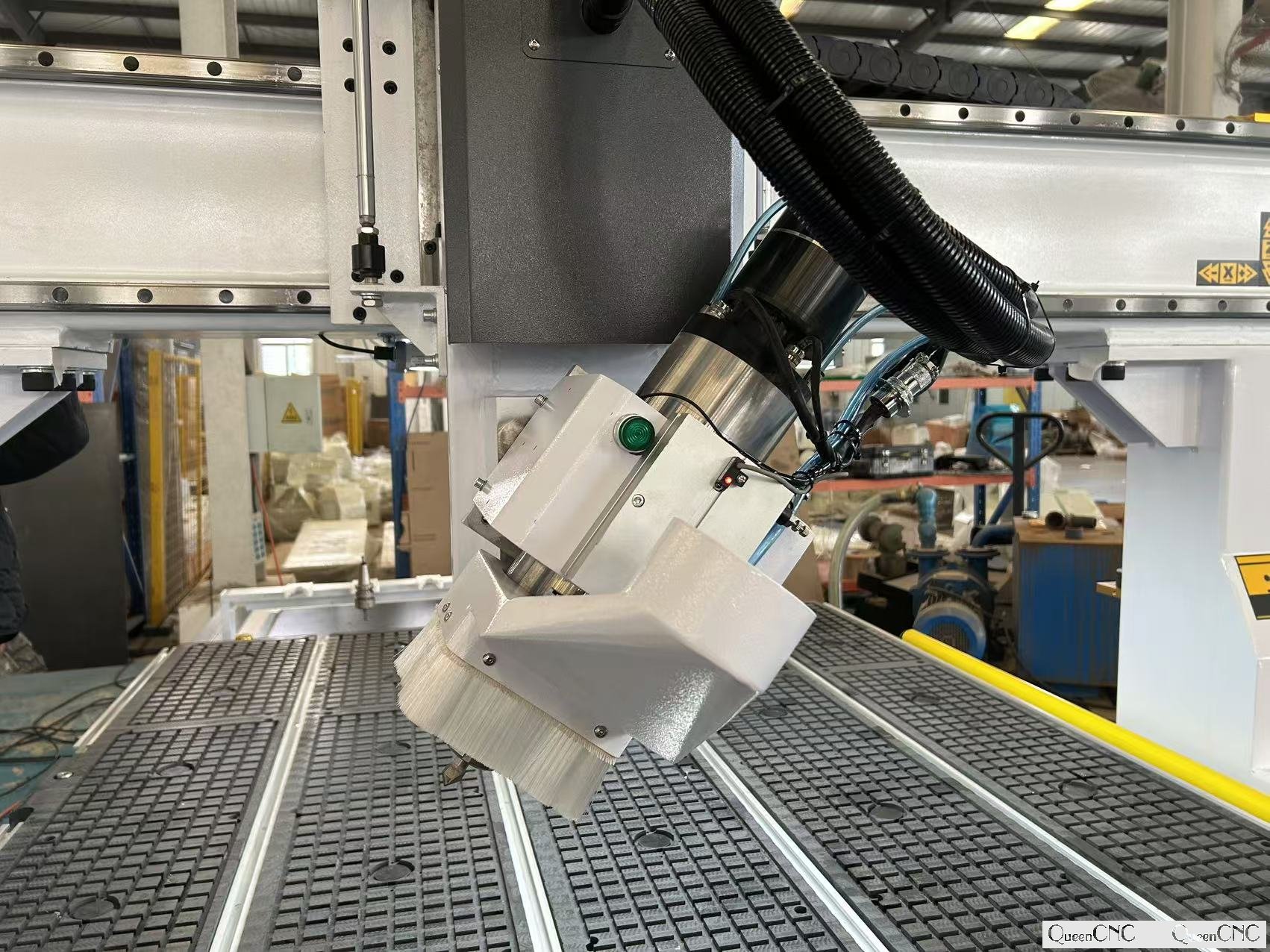

Machine pics:
Samples:
