QN1630 Leather Cutting Machine for Leather Shoe Bags
Release Time:2023-02-02 11:17 Reading Times:
QN1630 Leather Cutting Machine for Leather Shoe Bags
cnc oscillating knife genuine leather cutting machine table plotter machine
used for genuine leather cutting, can detect defects on real leather material, utility of leather material can reach 80%
1,Equipped with TV screen and computer, Screen connect with computer
2, equipped with high dpi camera, can take photo clearly
3, with scanning projector, can take photos of different shape leather materials firstly, then cut one by one
4,with nesting software, can optimize the design automatically
Cnc oscillating knife flatbed cutting machine Application:
flatbed cutting plotter is Mainly for home textile cutting such as sofa, curtain, carpet. leather, canvas, garment
clothes, pvc cutting, can cut roll, except for textile, it can also cut pvc, cardboard, polyester fabric, foam, pvc, leather etc.
material
cnc oscillating knife leather cutting machine can cut artificial leather and genuine leather, used for leather shoe, leather bags making, it has nesting software and projector instruments and let leather utility rate can reach 80%
this flatbed cutting machine with ability to cut EPE, EVA and EPP foam (up to 50mm) and corrugated boxes (up to triple wall) with cutting area 2500*1600mm. Perforation and creasing ability of corrugated material required as well.
Can Choose Different Tools for Different Industry:
1. Round knife--textile, garment, home decoration industry, cut fabric, fiber glass, carbon fiber., vivet, carpet etc.
2, Oscillating knife + creasing wheel----carton box making industry, cut and crease corrugated cardboard, honeycomb cardboard,
paper board etc.
3, Drag knife+Kiss cut+V cut---sign advertisign industry, vinyl sticer cutting, foam cutting
4, Auto feeding---to load unload material automatically, mainly used for leather, textile cutting

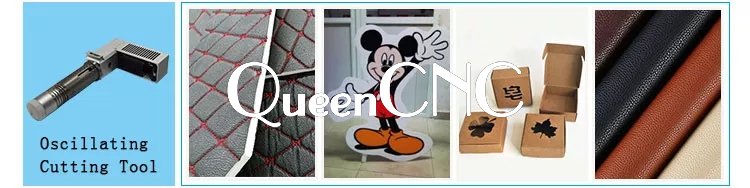

5, Pneumatic cutting tool---used for thick material cutting with thickness less than 120mm
6, ccd camera---used for printed image countour cutting
|

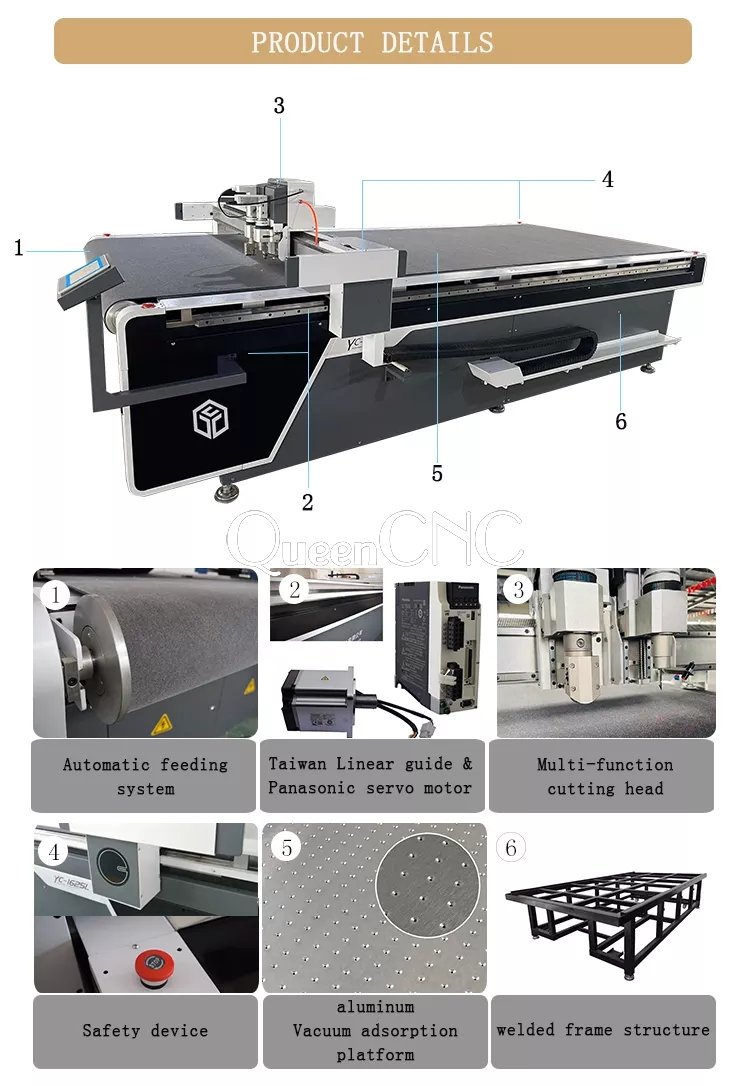

Technical Parameter for Oscillating Knife Flatbed Cutting Plotter Machine |
|
X working size |
1600mm |
|
Y working size |
2000mm |
|
Cutting head/tool (use different tool according to different material cutting) |
Oscillating knife cutting head for medium density material cutting such as foam cutting, eva, kt board, pvc, asbestosOptional Head
Tools:
Vibrating knife + Creasing wheel + V cut +ccd camera for cardboard cutting
Round knife + punching tool+ auto feeding for textile, leather cutting punching
Oscillating knife + kiss cut tool for sign vinyl stick cutting
Spindle: for cutting hard material such as acrylic, foiled foam |
|
Display way |
English LED touch screen |
|
Machine bed |
Thick aluminum bellow bed for better suction |
|
Machine table |
conveyor table |
|
Auto feeding device and deviation recognition device |
Include |
|
Data transfer way |
Intel |
|
Vacuum pump |
9KW air type vacuum pump |
|
Driving system |
Taiwan delta servo driver and motor |
|
Control system |
RD/Rhino control system |
|
Guiding system |
Taiwan TBI square rail |
|
Tool sensor |
With, red dot |
|
Transmission |
Y rack pinion, XZ synchronous steel belt |
|
Cutting speed |
30m/min |
|
Traveling speed |
50m/min |
|
Weight |
About 800kgs |
|
Machine Size |
2200*3500*1600mm |
|
Package situation |
plywood case for flatbed vinyl sticker cutting plotter machine |
|
Power |
380V 3 phase 50HZ |
|
Software |
Vcutworks software |
