QN1625 multi heads cnc knife cutter

Release Time:2023-02-02 11:09 Reading Times:

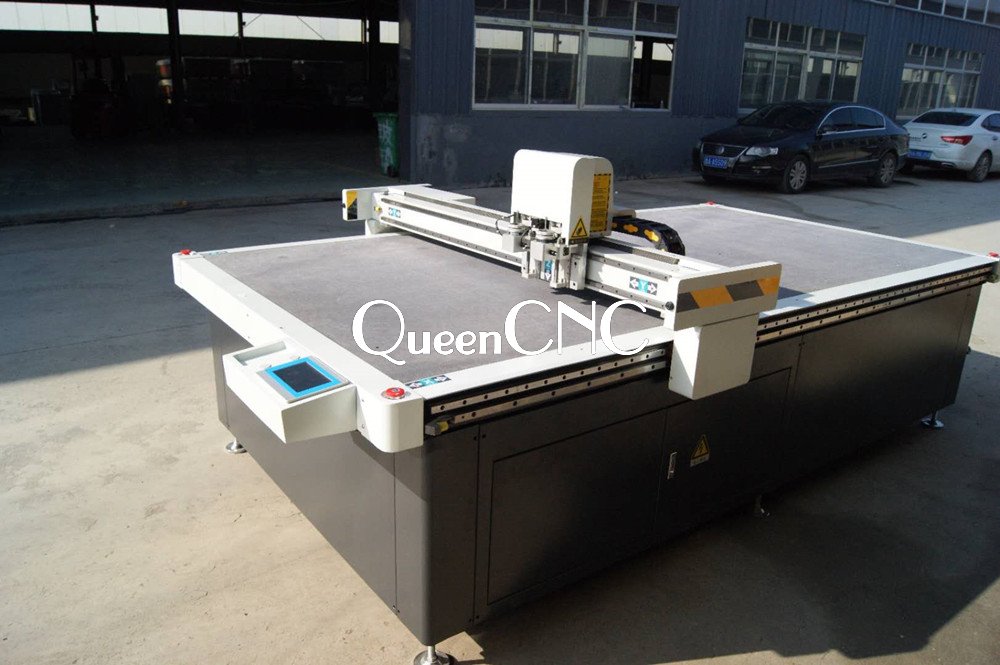

QN1625 multi heads cnc knife cutter

Application of flatbed cutter:
Mainly for different material and design cuttings, such as pneumatic head cut thick material, v cut used to cut 15-45 degree pattern, spindle used to cut hard material such as P3 foam and 5mm acrylic
Cutting Materials: composite material such as carbon fiber, fiber glass, soft glass/pvc, asbestos, plastic sponge, aviation composite material, sound insulation foam, rubber, P3 foam/foam with aluminum foil,eva

Technical Parameter of QN1625 Multi Heads Flatbed Cutter:
X working size	1600mm
Y working size	2500mm
Z working size	100mm
Cutting head	cnc oscillating knife cutting head+V cut tools + Milling Spindle
Display way	English LED touch screen
Machine table	Aluminum bellow Suction Table with 9 suction zone
Data transfer way	Intel
Vacuum pump	9KW air type vacuum pump
Driving system	Taiwan delta servo driver and motor
Control system	RD control system
Guiding system	Taiwan TBI square rail
Tool sensor	With, red dot
Transmission	Y rack pinion, XZ synchronous steel belt
Cutting speed	30m/min
Traveling speed	50m/min
Weight	About 1300kgs
Size	225033001650mm
Power	380V 50HZ
Software	vcutworks, machine has this software, support dxf, plt format file

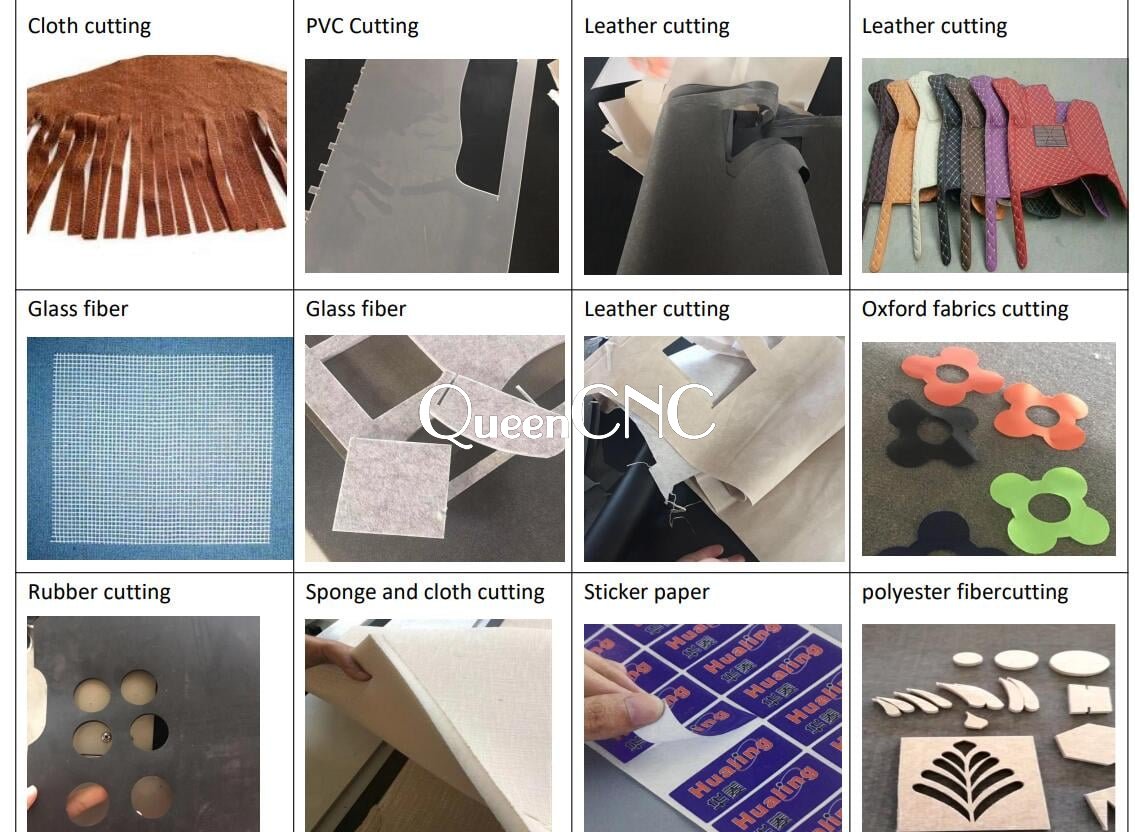

Samples：

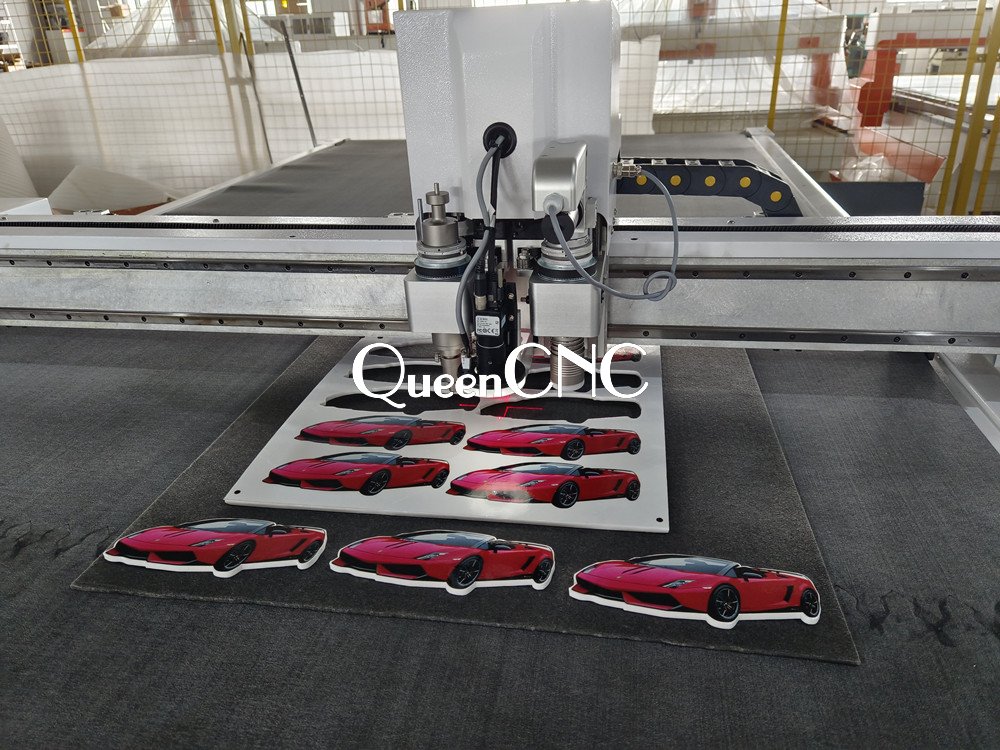

Working video:
