QN1625 cnc digital cutter flatbed cutting machine with doubl

Release Time:2023-02-02 10:39 Reading Times:

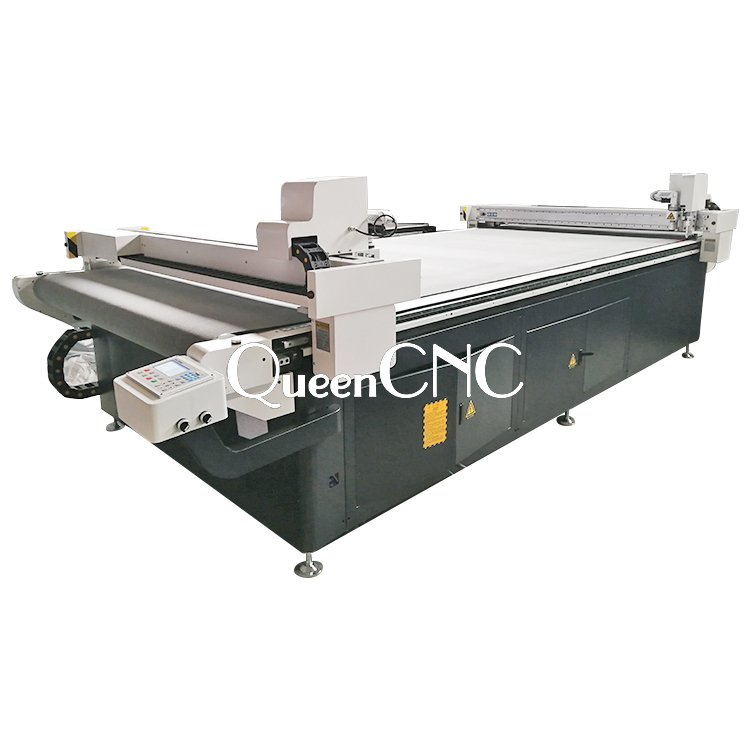

QN1625 cnc digital cutter flatbed cutting machine with double gantry

Features of flatbed cutting plotter machine:
1.This is double gantry machine, machine working size is 160*250cm, you can make a design with size 160*250cm, use two gantry to finish one big design, and each gantry do half design cutting at same time, then can save half time of one sheet cutting.
2, you can also make 2 small design, double gantry work together to get 2 same pieces of work at same time.
3, each gantry can work separately, it can do different design cutting at same time.

Description & Specifications of high precision double heads flatbed cutting machine table:
X working size	1600mm of two heads total working width
Y working size	2500mm
Z working size	max cutting thickness of material is 50mm, need customized the machine, standard machine cutting thickness is less than 10mm
Cutting head	cnc oscillating knife cutting head (can change head into pneumatic knife, round knife etc for different material cutting)
Display way	English LED touch screen
Machine table	Aluminum bellow Suction Table with 9 suction zone
Data transfer way	Intel
Vacuum pump	9KW air type vacuum pump
Driving system	Taiwan delta servo driver and motor
Control system	RD control system
Guiding system	Taiwan TBI square rail
Tool sensor	With, red dot
Transmission	Y rack pinion, XZ synchronous steel belt
Cutting speed	30m/min
Traveling speed	50m/min
Weight	About 900kgs
Size	225033001650mm
Power	380V 50HZ
Software	vcutworks, machine has this software, support dxf, plt format file

Working video:
