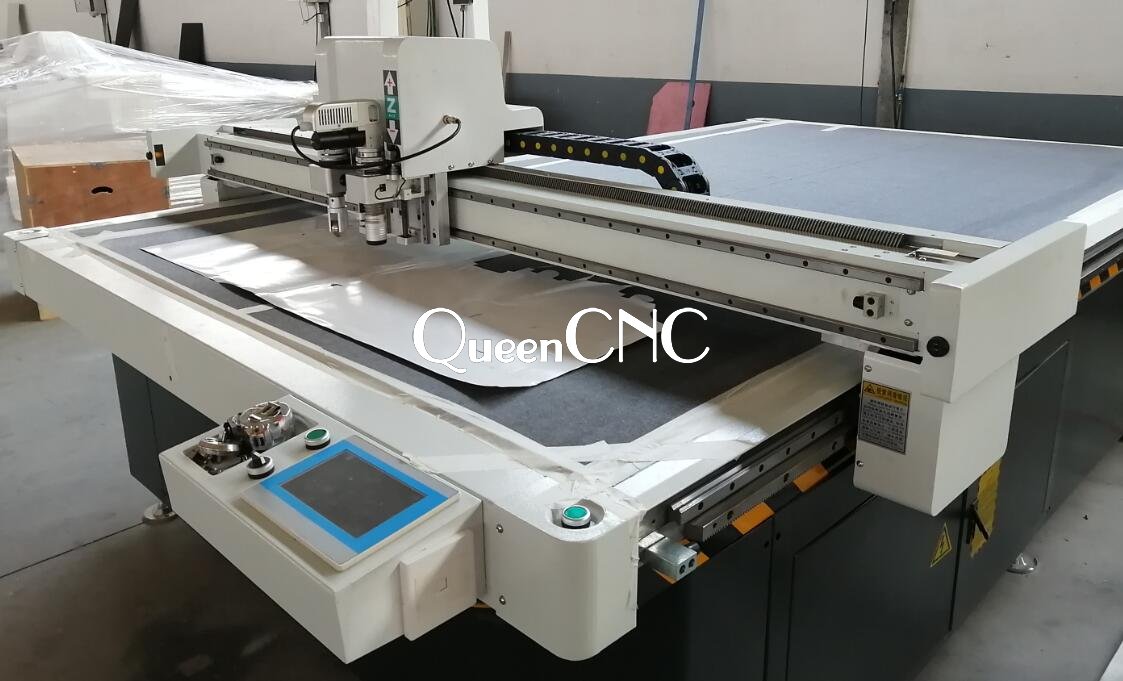

QN1625 CNC Flatbed Cutter Plotter for Carton Box Sample Mak
Release Time:2023-02-02 10:31 Reading Times:
QN1625 CNC Flatbed Cutter Plotter for Carton Box Sample Making The carton proofing machine is a machine used in carton factories to make carton samples.
there are two kinds of cardboard cutting plotter machine, one is mainly for cutting coated paper, cardboard, kraft paper, PVC, stickers with a thickness of less than 1mm
The other carton box sampling machine is to cut 8-30mm thick corrugated paper, honeycomb paperboard, grey board paper, KT board, Chevron board, EVA, etc.

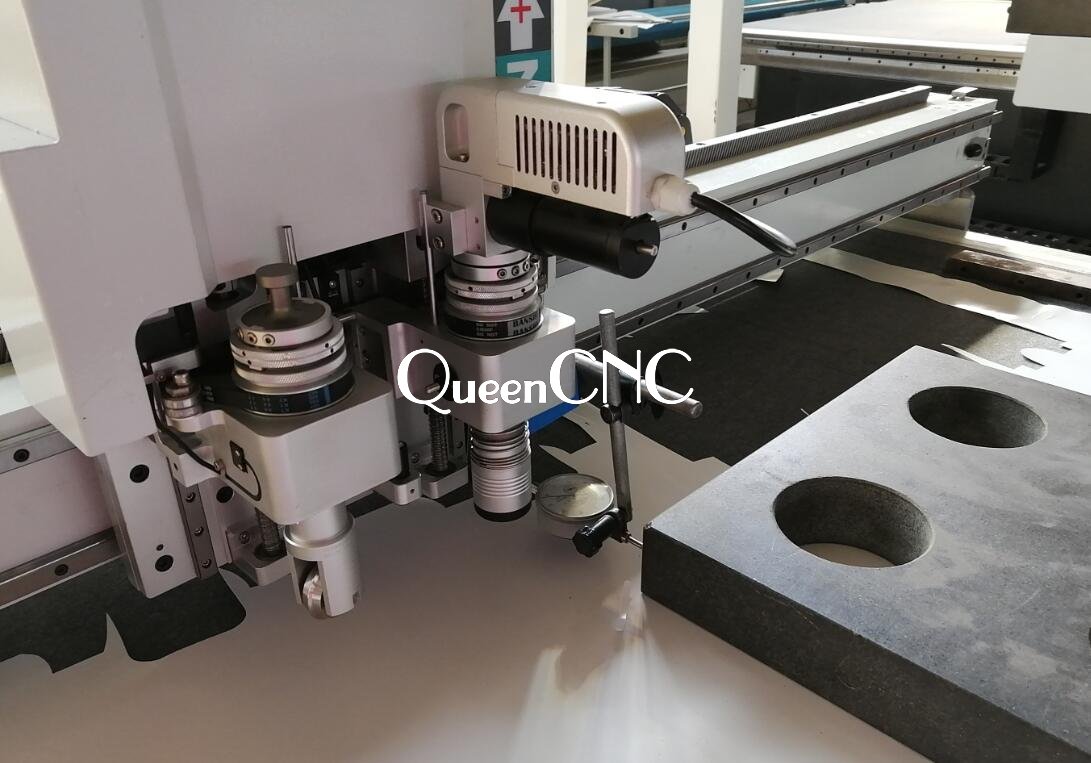

They both have creasing wheel, oscillating knife cutting function. Tools needed:
Vibrating cutter head: cutting corrugated cardboard, EVA, pearl cotton, foam board, etc.
Flat head: Cut E-pit, F-pit corrugated cardboard and grayboard.
Crimping wheel: creasing line of corrugated cardboard.
Small cutter head: cutting cardboard paper.
Pen: Draw a die map.
Some carton proofing machines are also equipped with: knife template cutting head, bottom mold cutting head, V-groove cutting head
Technical Parameter of QN1625 Flatbed Cutting Plotter for Carton Box Making:
X working size
1550mm
Y working size
2500mm
Z working size
10mm
Cutting head
cnc oscillating knife cutting head+Creasing wheel
Display way
English LED touch screen
Machine table
Aluminum bellow Suction Table with 9 suction zone
Data transfer way
Intel
Vacuum pump
9KW air type vacuum pump
Driving system
Taiwan delta servo driver and motor
Control system
RD control system
Guiding system
Taiwan TBI square rail
Tool sensor
With, red dot
Transmission
Y rack pinion, XZ synchronous steel belt
Cutting speed
30m/min
Traveling speed
50m/min
Weight
About 800kgs
Size
2250*3300*1650mm
Power
380V 50HZ
Software
vcutworks, machine has this software, support dxf, plt format file
