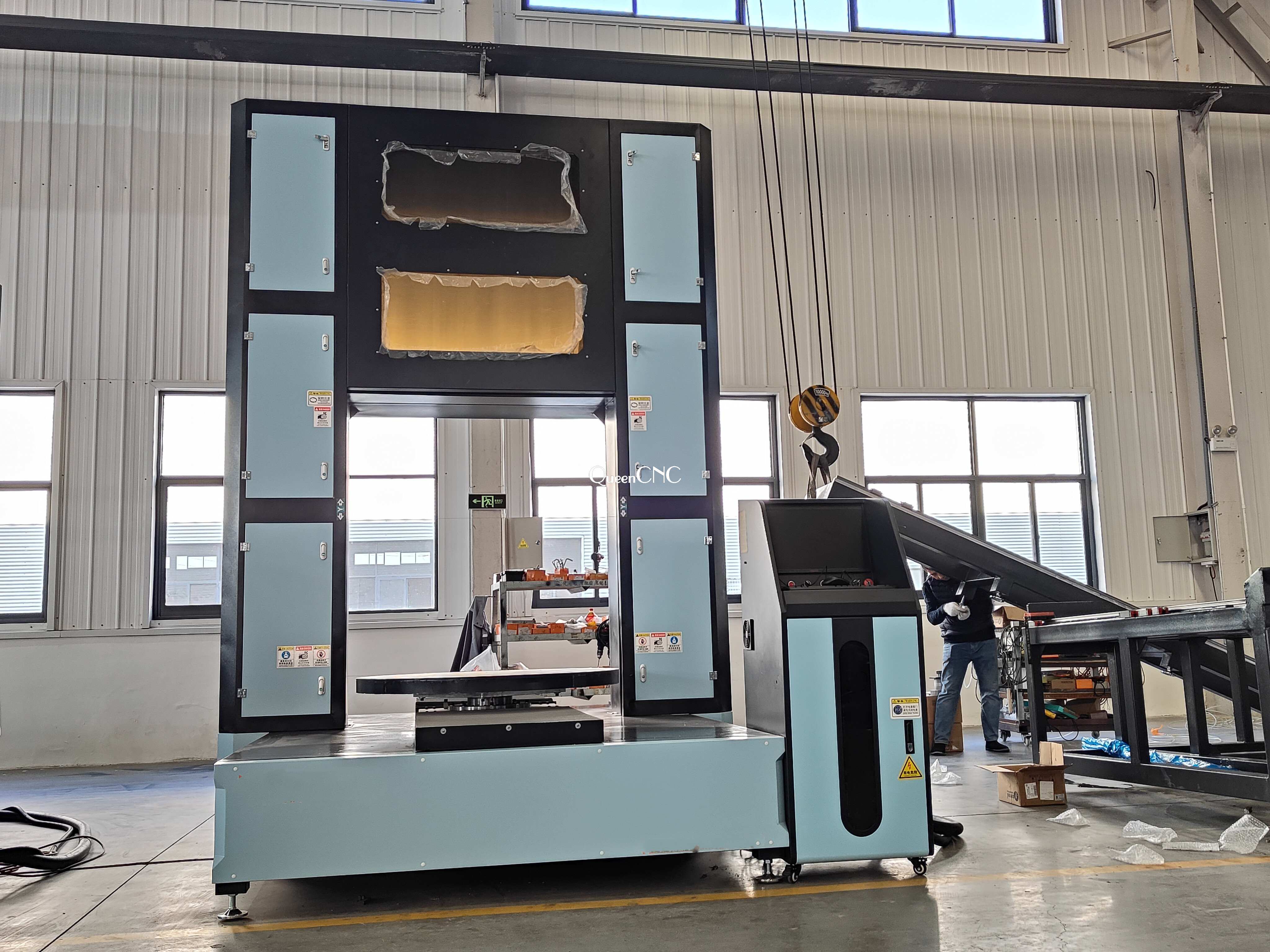

cnc wire foam cutter
| Description & Specifications: | |
| Cutting area | Length 2000mm*width 1000mm*height 1000mm |
| Table surface | T-slot table |
| Traveling Positioning Accuracy | ±0.4mm |
| Repositioning Positioning Accuracy | ±0.5mm |
| Working dpi | ±0.5mm |
| Cutting speed | 500-1500mm/min |
| Machine Structure | Thick welded steel |
| Command | G-code*.u00*.mmg*.plt |
| Working voltage | AC380V/50HZ 3 phase |
| Weight with package | 850KGS |
| Package size | 1.6*3.9*1.4M |
| Control System | Mach3 with computer |
| Guide Rail | Square guide |
| Humidity | 10%-90%(without condensation) |
| Temperature | 10-50℃ |
| Gear box | Small gear box |
| Transmission | High precision helical rack pinion transmission |
| Net weight | 600KGS |
| Driver | Stepper motor and driver |
| Computer | Industrial computer |
| Safety device | Limit switch |
| Spare parts | 5 pieces of wire |
| Wire diameter | 1-3mm |
| Working power | 5KW |
| Control box | Separate |
| Software | included |
