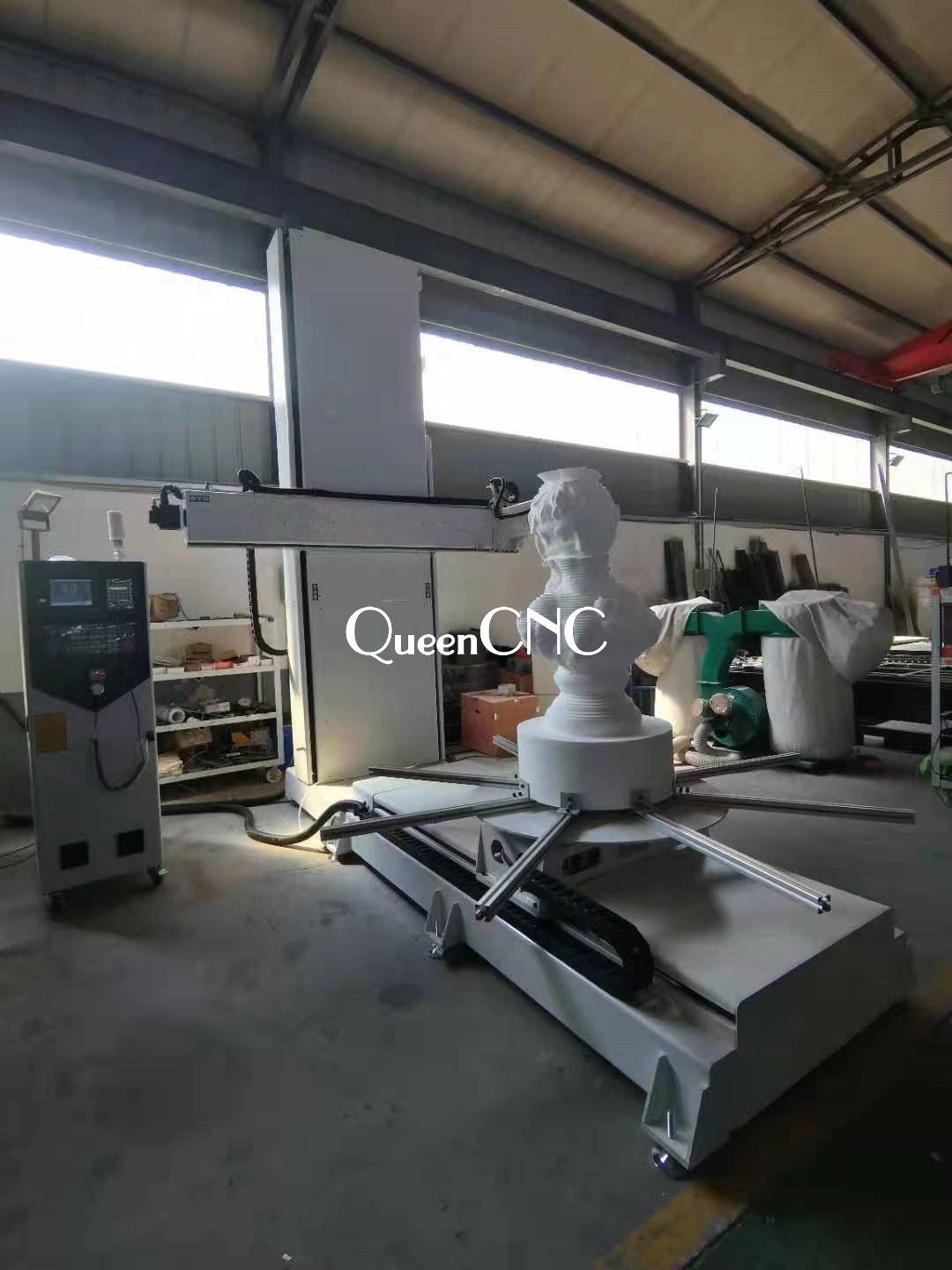

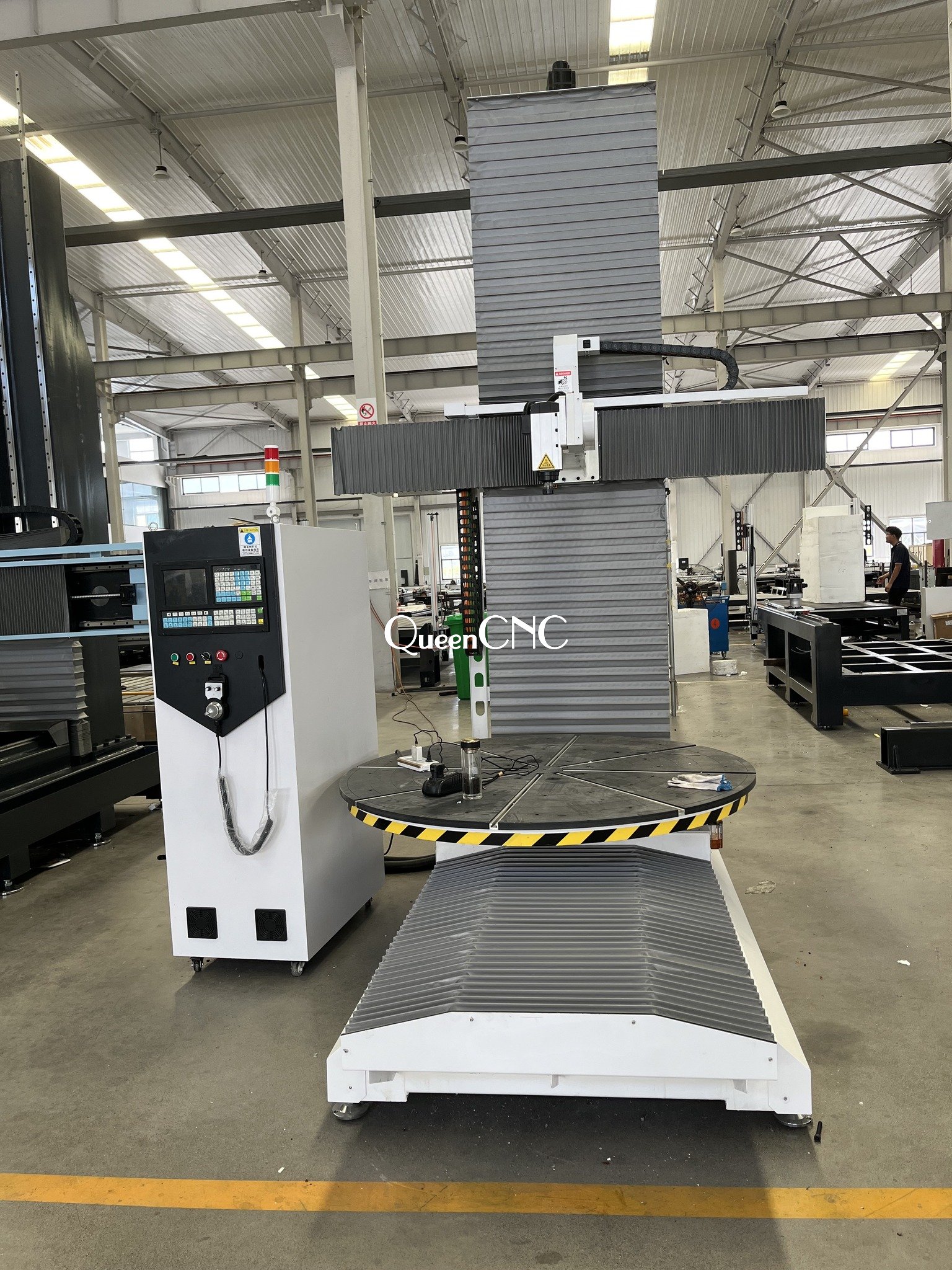

5 axis cnc foam cutting machin
| Model | QN1525 |
| Control system | Taiyuan controller 5 axis |
| Driver and motors | Maxsine Bus Absolute |
| Motor power :3KW | |
| Operation aid | Hand wheel |
| Electrical component | Schneider |
| Electrical cabinet | Sealed design with filter |
| Cable | Power、signal 、Oil line、pneumatic line separate assignment, shielding wire. |
| Spindle | 6.0Kw air cooling |
| Transmission | XY Z axis ball screw |
| Guiding rails | Taiwan 30# linear |
| Ball screw | Taiwan TBI |
| Reducer | Japanese Shimpo Planetary |
| Cooling mode | Air cooling |
| Protection cover | All axis Bellows dust cover |
| Lubrication | Automatic |
| Safety measures | Exceed speed/Emergency/Limit sensor/Air pressure alarm/Electrical Protection |
| Lighting device | Column sides /Gantry bottom LED |
| Dust collection | Semi closed cover Dust collecting hood |
