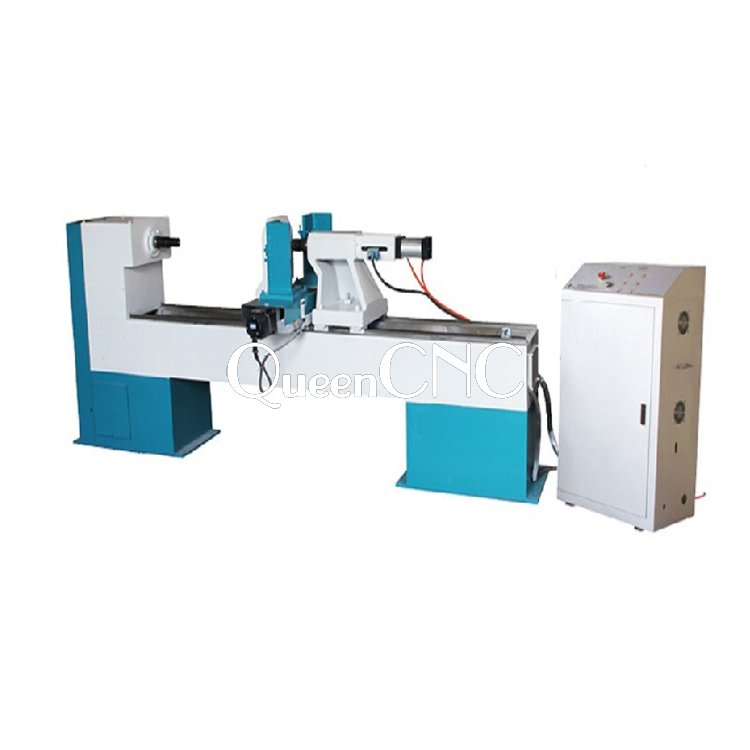

QN1530 Automatic Wood Lathe Machine CNC Woodworking Turning
Release Time:2023-02-02 17:00 Reading Times:
QN1530 Automatic Wood Lathe Machine CNC Woodworking Turning Lathe
|
Model
|
QN3015
|
|
Equipment processing size
|
Rotation diameter (addition of center sleeve): 0--120mm(No center sleeve installed) 0--340mm
|
|
Processing length
|
0-1500mm
|
|
Working area size XYZ
|
280X240X1500mm
|
|
Control axis motor
|
Medium inertia servo motor and supporting servo drive
|
|
Servo control transformer
|
Isolation transformer
|
|
CNC control system
|
Four-axis CNC lathe control system (ROT customized version)
|
|
Control electrical appliances
|
Tianzheng brand related electrical appliances
|
|
Spindle motor
|
5. 5KW spindle motor
|
|
Spindle control inverter
|
Inverter 5.5KW
|
|
Total equipment power
|
8. 5KW
|
|
Motion execution module
|
Tool holder: Taiwan 20 guide rail and Taiwan 16 compact ball screwTool table: Taiwan TBI30 guide rail and Taiwan TBI40 tight ball
screw
|
|
Machine accessories
|
Center set: one set (size can be specified by the customer) Spindle fork: one set (the size can be specified by the customer)
Tailstock needle: one set (size can be specified by the customer) Supplied tools-"Set: Includes 2--10 Allen wrenches, adjustable
wrenches, and tool holder wrenches Turning tool: one set (brand customized model can be replaced with alloy tool set) Others: a U
disk, including: programming teaching videos, operating videos, programming program installation packages code files
|
|
Package dimensions
|
3200mmX1500mmX1200mm
|
|
packing list
|
1pcs
|
|
The overall color of the equipment: gray body and orange-red door guard
|
|
Total Weight
|
2300kg
|

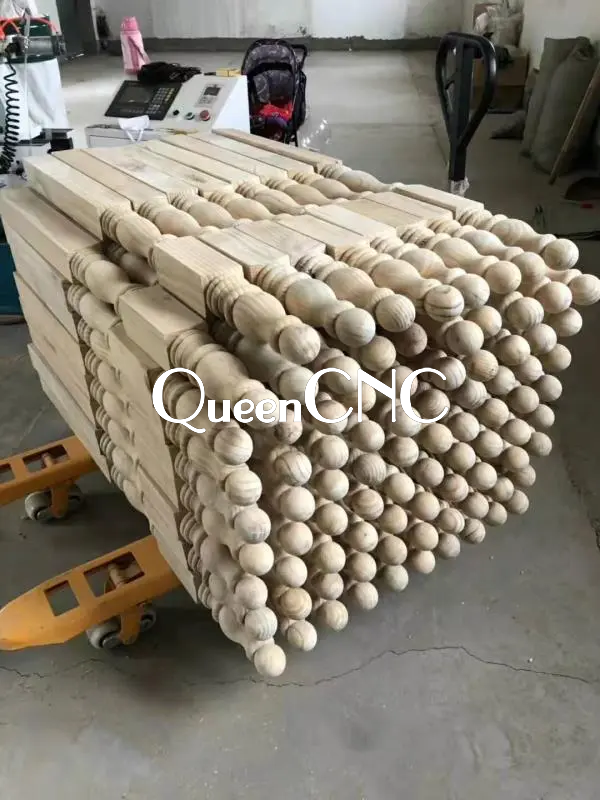

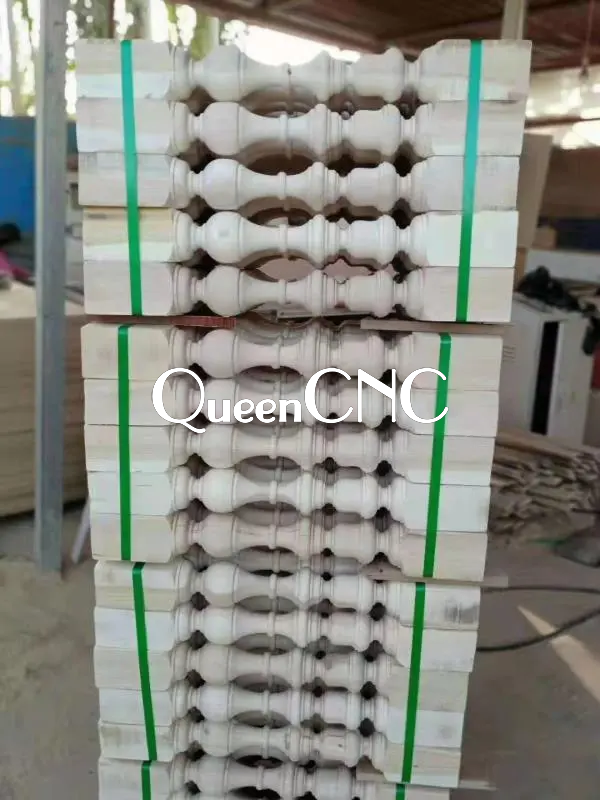

Samples:
