QN1520 1530 automatic CNC wood lathe machines price baseball
Release Time:2023-02-02 16:46 Reading Times:

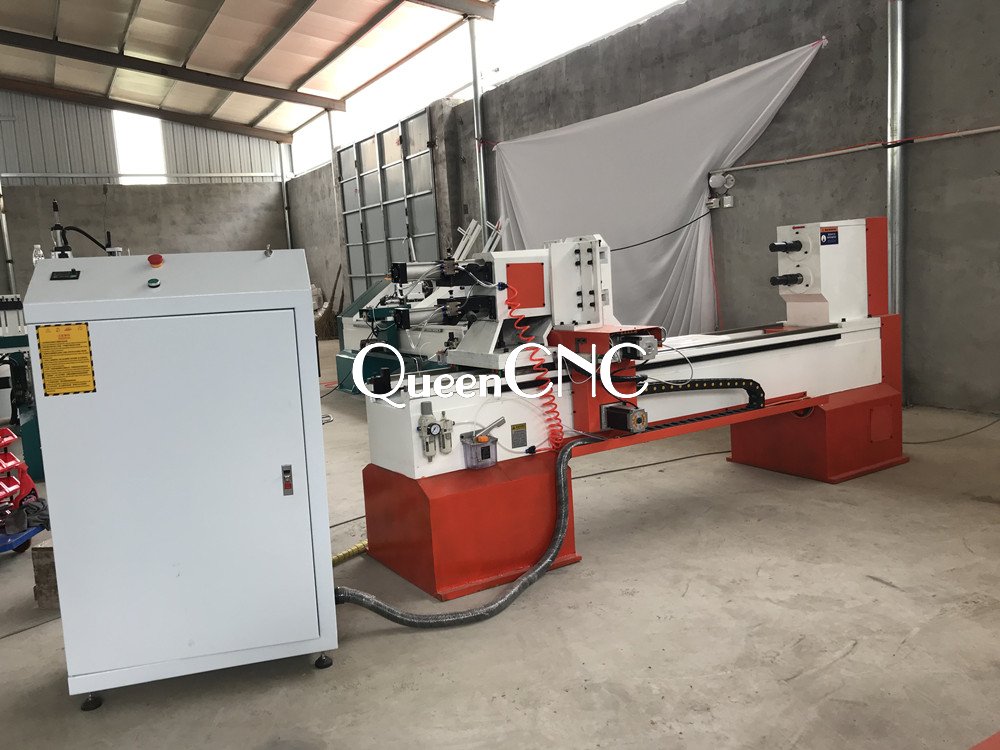

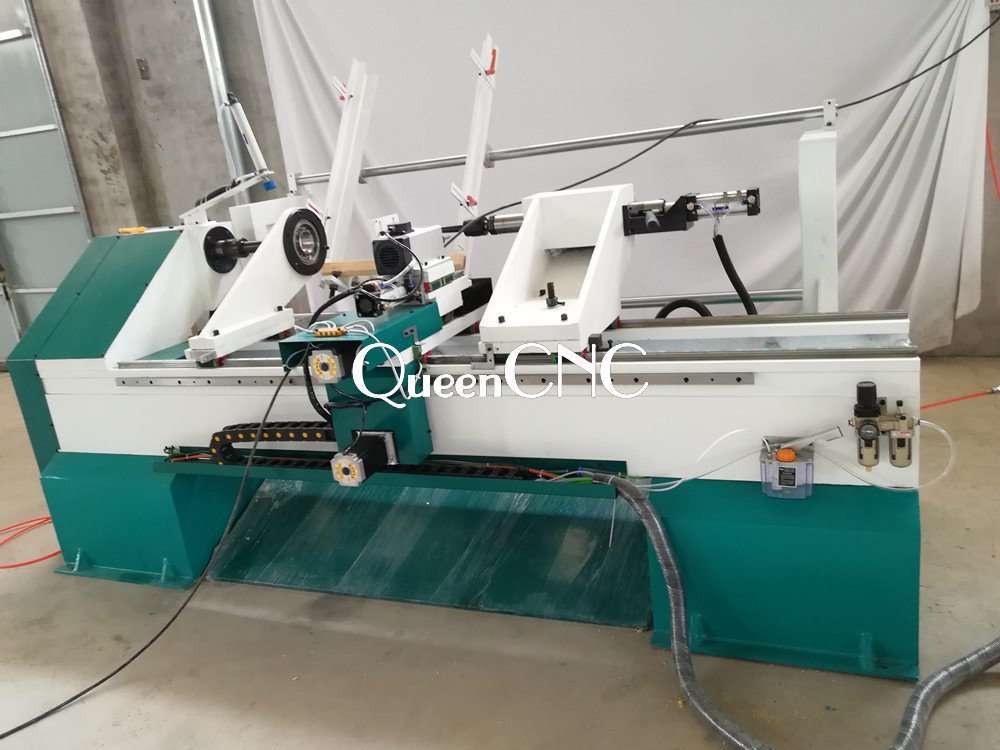

QN1520 1530 automatic CNC wood lathe machines price baseball bat cnc wood turning lathe
Features:
1. Whole machine is welded with seamless steel structure, which is high temperature annealing and
vibrating stress relief, so the lathe body is stabilized and will not be deformed forever. 2. Professional used for wood turning and wooden cylinder engraving, for table legs,stair railing (banisters). 3.Adopting advanced control system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources. 4. Adopt Germany ball screw and Taiwan PMI helical square guide rail with high transmitting precision and longevity. Bid module helical/diagonal rack. 5. Compatible with several CAD/CAM design software, e.g. Type 3, artcam, etc. 6. Rotating speed is adjusted by inverter, and the speed data is shown on controlling cabinet panel. 7. One time tool setting to finish the whole work piece.
|
Model
|
QN1520
|
|
Max turning length
|
200mm-1500mm
|
|
Max turning diameter
|
20mm-200mm
|
|
Control system
|
GXK
|
|
Autofeeding
|
With
|
|
Number of axis
|
One axis
|
|
Maximum feed rate
|
200cm/min
|
|
Inverter
|
Fuling
|
|
Driver
|
YAKO
|
|
Minimum setting unit
|
0.01cm
|
|
Air cooling spindle
|
HQD 4.5kw
|
|
Square rails
|
Taiwan Hiwin
|
|
Spindle motor power
|
4.5kw
|
|
Power supply
|
AC220/380V,50/60hZ
|
|
Weight
|
1600kgs
|

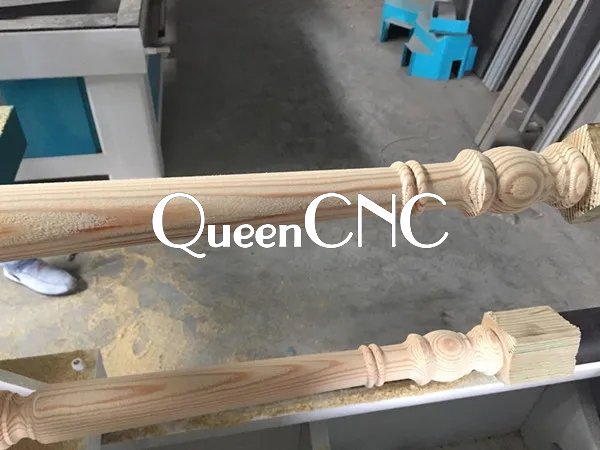

Samples:
