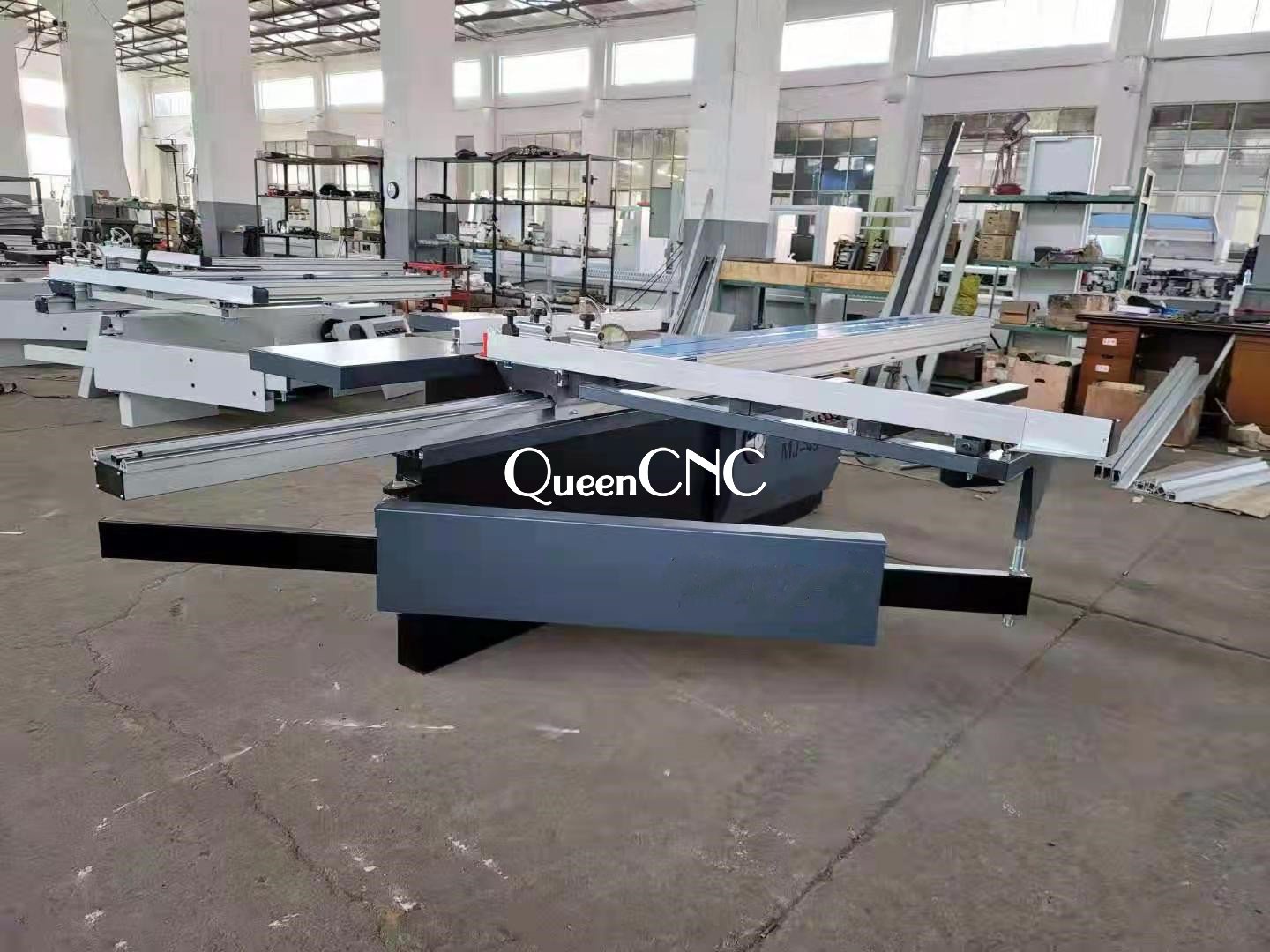

Precision panel saw
| Model | MJ-45-3000 |
| Sliding table size | 3000*410mm |
| Gross cut capacity | 3000mm,have 2800mm,3200mm,3800mm for option,also can be customized |
| Width between saw blade&rip fence | 1250mm |
| Saw blade diameter | 300(250-350)mm |
| Height of cut (300mm) | 70-80mm |
| Main saw spindle Speed | 4500/6000rpm |
| Main spindle diameter | 30mm |
| Tilting saw blade | 0-45-90° |
| Main motor Power | 5.5kw |
| Scoring motor power | 1.1kw |
| Scoring saw blade diameter | 120mm |
| Scoring saw blade speed | 8000rpm |
| Scoring saw diameter | 20mm |
| Weight | 900kgs |
| Machine body Package size | 2200*1150*1100mm |
| Sliding table Pack size | 3350*480*320mm |
