QN1530 plamsa cutting machine
Release Time:2023-02-01 15:22  Reading Times:
QN1530 plamsa cutting machine

Detailed Product Description for CNC plasma cutting machine

CNC Plasma cutting is a process that cuts through electrically conductive materials by means of an accelerated jet of hot plasma. Typical materials cut with a plasma torch include steel, stainless steel, aluminum, brass and copper, although other conductive metals may be cut as well. Plasma cutting is often used in fabrication shops, automotive repair and restoration, industrial construction, and salvage and scrapping operations. Due to the high speed and precision cuts combined with low cost, plasma cutting sees widespread use from large-scale industrial CNC applications down to small hobbyist shops.

Some CNC plasma cutter manufacturers build CNC cutting tables, and some have the cutter built into the table. CNC tables allow a computer to control the torch head producing clean sharp cuts. Modern CNC plasma equipment is capable of multi-axis cutting of thick material, allowing opportunities for complex welding seams that are not possible otherwise. For thinner material, plasma cutting is being progressively replaced by laser cutting, due mainly to the laser cutter's superior hole-cutting abilities.
A specialized use of CNC Plasma Cutters has been in the HVAC industry. Software processes information on ductwork and creates flat patterns to be cut on the cutting table by the plasma torch. This technology has enormously increased productivity within the industry since its introduction in the early 1980s.
CNC Plasma Cutters are also used in many workshops to create decorative metalwork. For instance, commercial and residential signage, wall art, address signs, and outdoor garden art.
In recent years there has been even more development. Traditionally the machines' cutting tables were horizontal, but now vertical CNC plasma cutting machines are available, providing for a smaller footprint, increased flexibility, optimum safety and faster operation.

CNC Plasma Machine,Industrial plasma cutting machine,Hypertherm powersupply,high accuracy,smooth cut.




Model

QN1325/QN1530

2

Processing material

Iron plate, carbon steel,stainless steel, aluminum,etc other metals

3

Effective cutting range(mm)

1300*2500mm

4

Z working area

150mm

5

Cutting mode

Plasma cut only

6

Plasma Power source

Hauyuan 120A plasma source

7

Cutting thickness(mm)

High quality cutting thickness , 15mm thickness

Max carbon sheet cutting thickness at 25mm

8

Cutting speed(mm/min)

8000mm/min

9

Cutting system

Microstep STARFIRE

10

Torch Height Control(THC) mode

Automatic High sensitive THC

11

Software

StarCAM

12

Motors

Stepper motor

13

Emergency stop

Standard equip

14

LCD Display Dimension

7.0Inches

15

Move precision

±0.1mm/m

16

Input Voltage

380V three phase

17

Power

8.5kw

18

Type of gas needed

Air

19

Gas pressure

Max.0.8Mpa

20

Working temperature

-10°C-60°C. Relative Humidity, 0-95%.

21

Host weight(KG)

1450KG

22

Total weight(KG)

1650KG

23

Packing size

2200mm*3900mm*1650mm

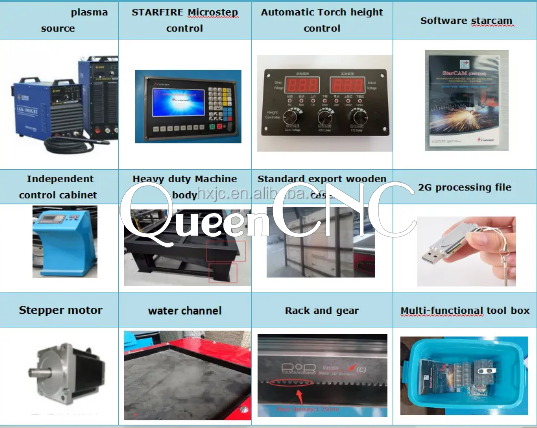

Detailed parts:
 BrandPowerCutting thickness:
Chinese Huyuan
63A6mm
100A15mm
160A20mm
200A30mm
USA imported brand
45A8mm
65A12mm
85A15mm
105A18mm
125A25mm
200A30mm

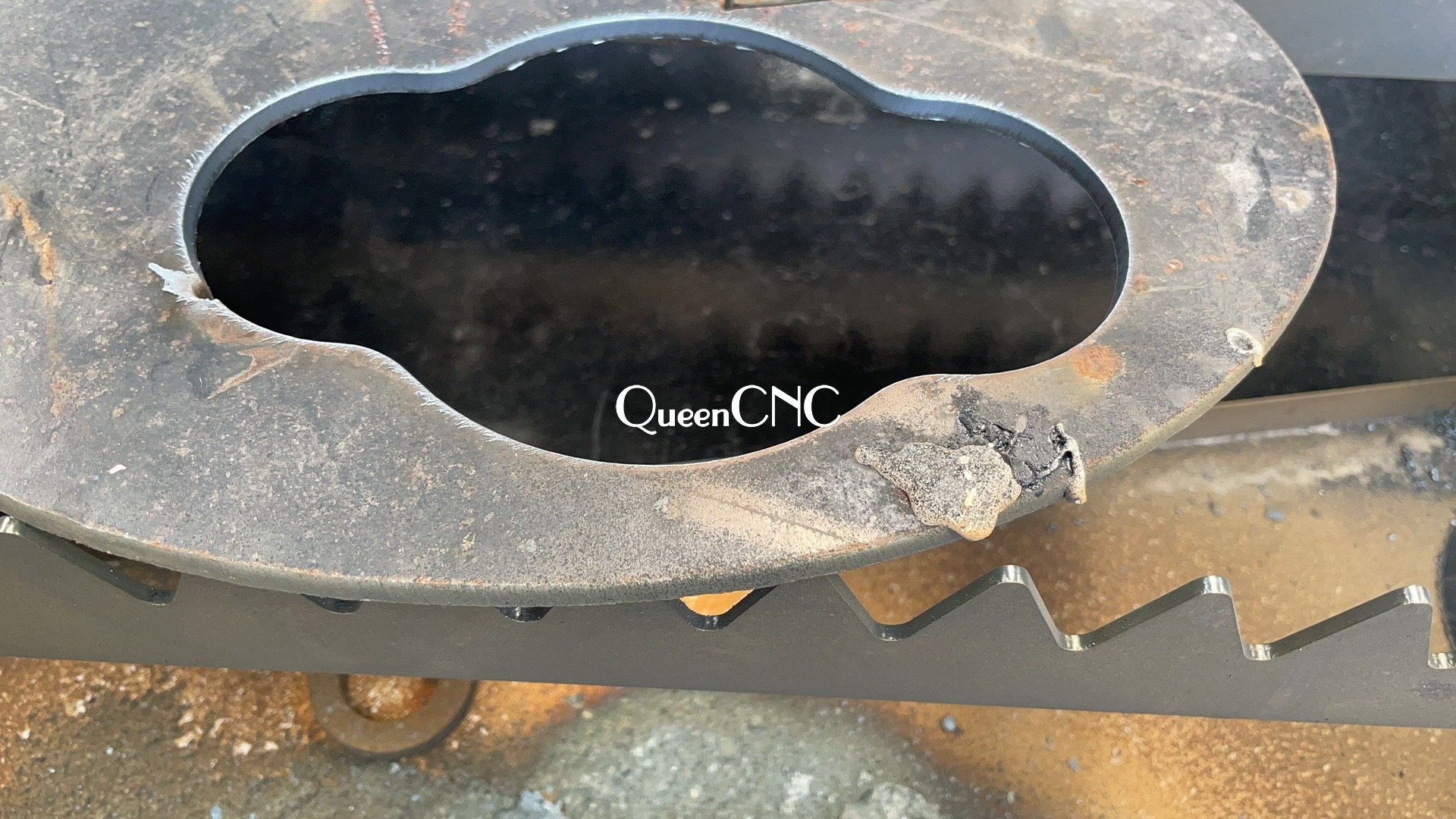

samples:



Model

LD1325

2

Processing material

Iron plate, carbon steel,stainless steel, aluminum,etc other metals

3

Effective cutting range(mm)

1300*2500mm

4

Z working area

150mm

5

Cutting mode

Plasma cut only

6

Plasma Power source

Hauyuan 120A plasma source

7

Cutting thickness(mm)

High quality cutting thickness , 15mm thickness

Max carbon sheet cutting thickness at 25mm

8

Cutting speed(mm/min)

8000mm/min

9

Cutting system

Microstep STARFIRE

10

Torch Height Control(THC) mode

Automatic High sensitive THC

11

Software

StarCAM

12

Motors

Stepper motor

13

Emergency stop

Standard equip

14

LCD Display Dimension

7.0Inches

15

Move precision

±0.1mm/m

16

Input Voltage

380V three phase

17

Power

8.5kw

18

Type of gas needed

Air

19

Gas pressure

Max.0.8Mpa

20

Working temperature

-10°C-60°C. Relative Humidity, 0-95%.

21

Host weight(KG)

1450KG

22

Total weight(KG)

1650KG

23

Packing size

2200mm*3900mm*1650mm
