Automatic All-in-one Letter Bending Machine
设备优势：Advantages
1 独立双刀，双开槽系统，真正实现不同种类、不同材质间的灵活加工。Independent double slotting system, the real realization of different types of materials freely processing.
2，1 刨刀和铣刀开槽系统都实现自动调节切割深度，操作简易。Automatic adjustment of cutting depth for both planer and milling cutter slotting, easy to operate

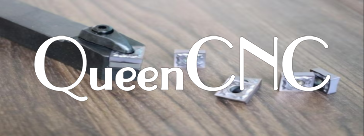

3，3. 刨刀采用硬质合金成品刀粒，成本低、切割稳定、美观，刀粒含多个刀尖可单独使用且免维护免研磨，基本实现设备零费用运行。刨刀系统自动对刀，免调试切割深浅。The planer is made with hard alloy finished , cutting stable and smooth , blade grain with a number of tips can be used separately,maintenance-free,and free grinding,low cost. Automatic adjust for plane blade,free adjust for slotting depth.
4，精密铣刀可前后左右摆刀，角度自动识别，加工多种规格铝型材。Precision milling cutter can swing all around,Identify angle automatically, processing variety of aluminum profile.
5，丝杠加双方轨定位传动，力度更大，切割更稳定。Roller screw and double rail positioning for transmission ,more powerful, more stable cutting采用双刀式交替拍弧机构及专利加装式挤弧结构，使能切换自如，无缝对接，换料无需重新调试，使能弯弧最小弧度更小，应对复杂字体的加工。One-step switch system for double-pole alternate bending for metal coil,and patent extrusion bending system for aluminum profile,switch freely, no need adjust again when change materials.
6，大功率伺服系统控制、精度高、速度快、扭矩大、提高做字效率。High power servo control system , high precision, fast speed, high torque, improve working efficiency.
7，带有长度闭环控制系统，长度精度软件控制，误差≤0.1mm。With length closed-loop control system, length precision software control, error≤0.1mm.
8，独立托料架，保证设备送料稳定性。Independent material rack, to ensure the stability of equipment feeding.
9，整机镀硬铬，耐磨耐腐蚀。Full chrome plating for machine,Wear-resistant and corrosion-resistant
10，软件系统简单，易学，便于操作。Software can switch between two slotting system freely, simple interface, easy to learn and operate.
Machine sepcs:
加工高度material height |
200mm |
|
加工材料 applicable materials |
不锈钢、镀锌板、铁、铝、铜等平板
金属以及铝边带、铝型材等异形材料
Stainless steel, galvanized sheet, iron, aluminum, copper and other
Metal coil;
edge aluminum , aluminum profile or other special-shaped profile |
|
文件格式file format |
dxf、ai、plt |
最小折圆半径Minimum Bending Radius
|
R=3 MM |
材料厚度Material Thickness
|
0.3-1.2mm |
峰值功率Peak Power
|
2000W |
|
长度精度Length Accuracy |
0.1mm/米meter |
|
送料扭矩Feeding Torque |
>45Nm |
|
刨刀开槽扭矩峰值Planer Slotted Torque Peak |
>100Nm |
|
弯弧扭矩峰值Arc Bending Torque Peak |
>100Nm |
外型尺寸Dimensions
|
1900*900*1600 |
|
加工件表面处理Surface Treatment of Work-piece |
整体镀硬铬full chrome plating |
净重N.Weight
|
550kg |
电源Power
|
AC220V |
工作气压Working Pressure
|
0.3-0.6mpa |
Samples:
