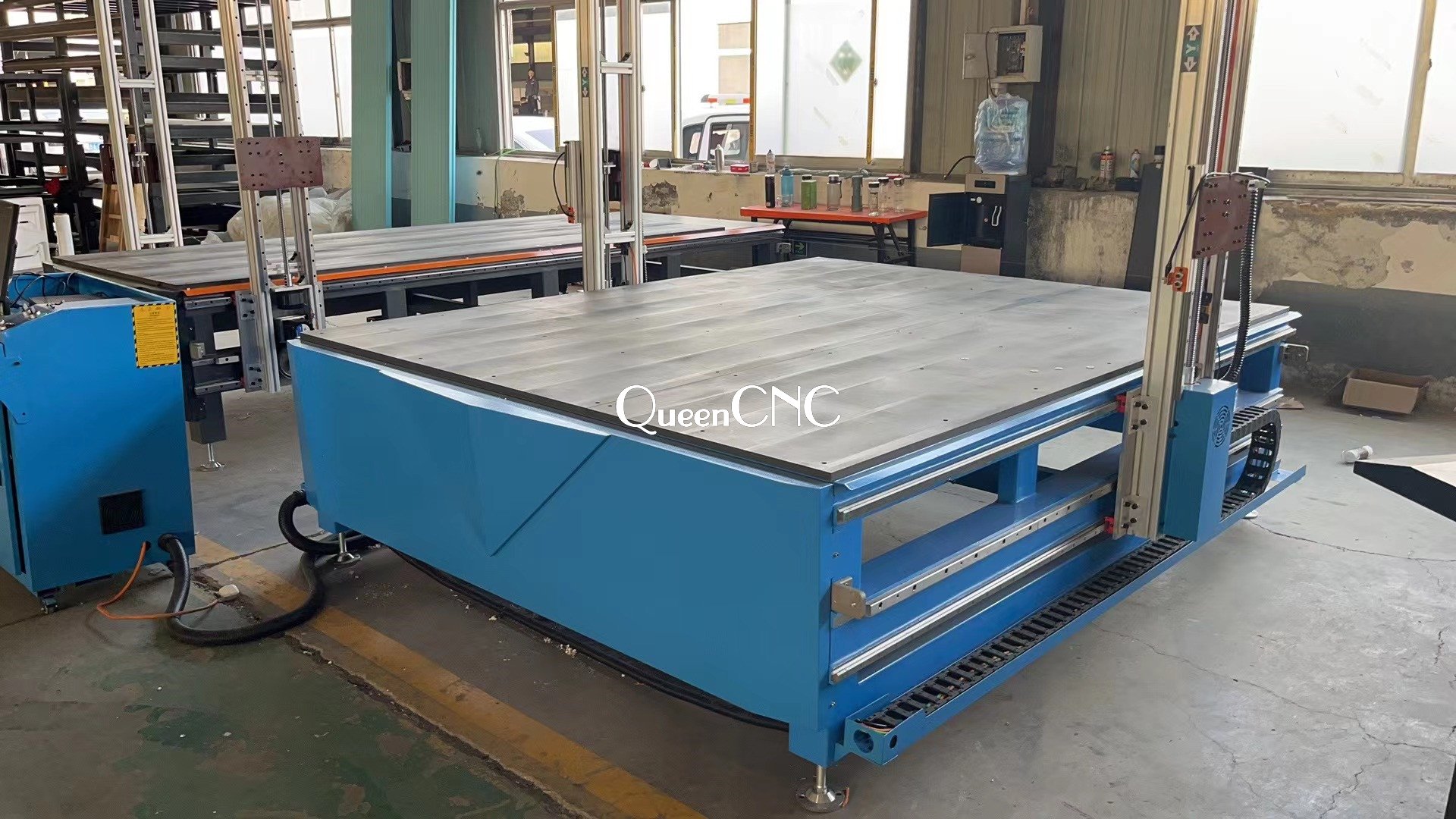

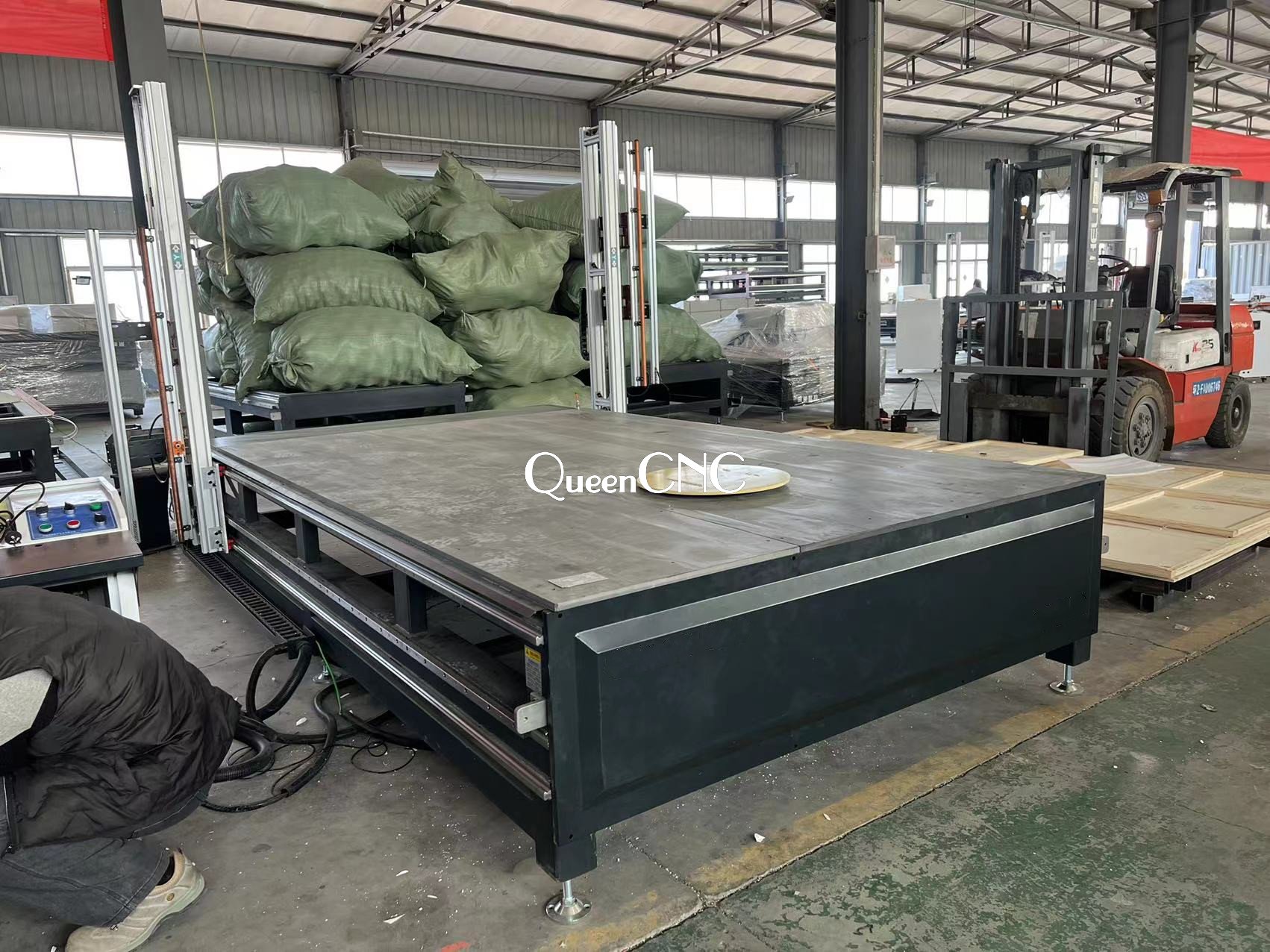

Hot wire foam cutting machine
| Description & Specifications: | |
| X Working Area | 1300mm |
| Y Working Area | 3000mm |
| Z Working Area | 1300mm |
| Traveling Positioning Accuracy | ±0.5mm |
| Repositioning Positioning Accuracy | ±0.2mm |
| Control system | Mach3 |
| Working dpi | ±0.04mm |
| Rotating Speed | 0-6000mm/min |
| Machine Structure | Thicken welded steel |
| Command | G-code*.u00*.mmg*.plt |
| Control System | DSP control system |
| Software | Auto CAD |
| Guide Rail | Round guide |
| Machine table | Thicken PVC |
| Weight with package | 1100kgs |
| Package dimension | 5200*1700*1200mm |
| Working voltage | AC220V/20HZ |
| Computer | Yes,one set |

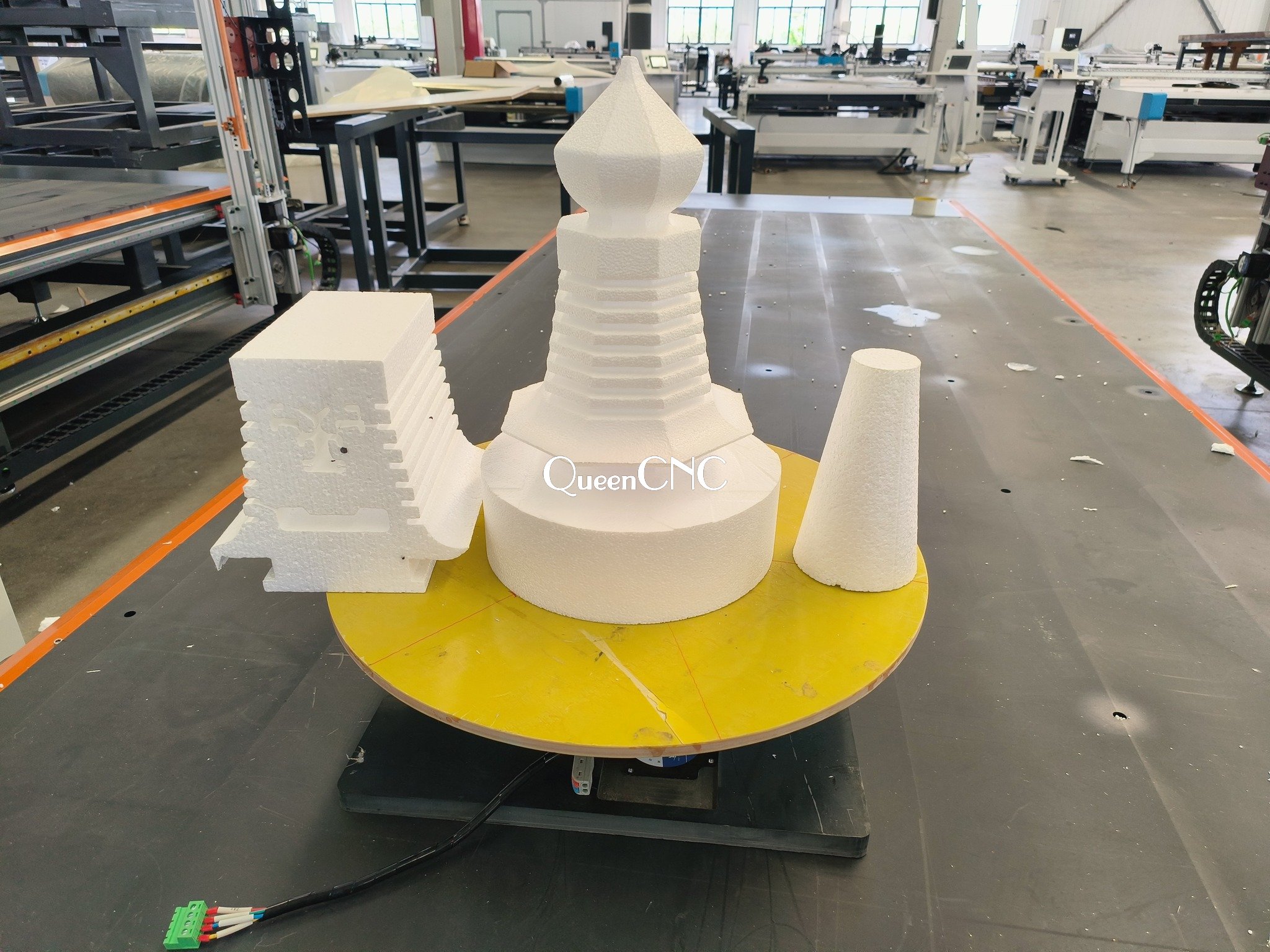

| Rotate plate | Yes,one piece |
