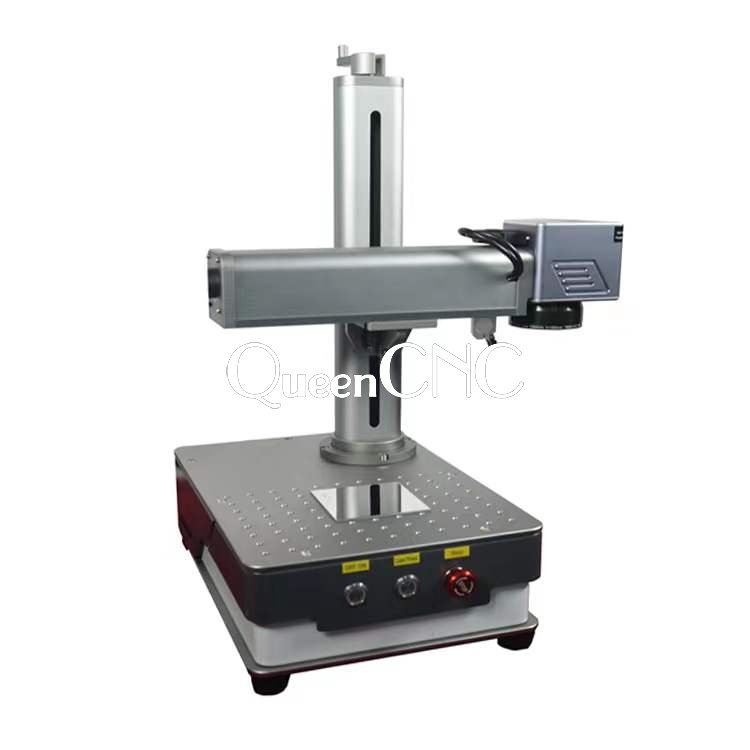

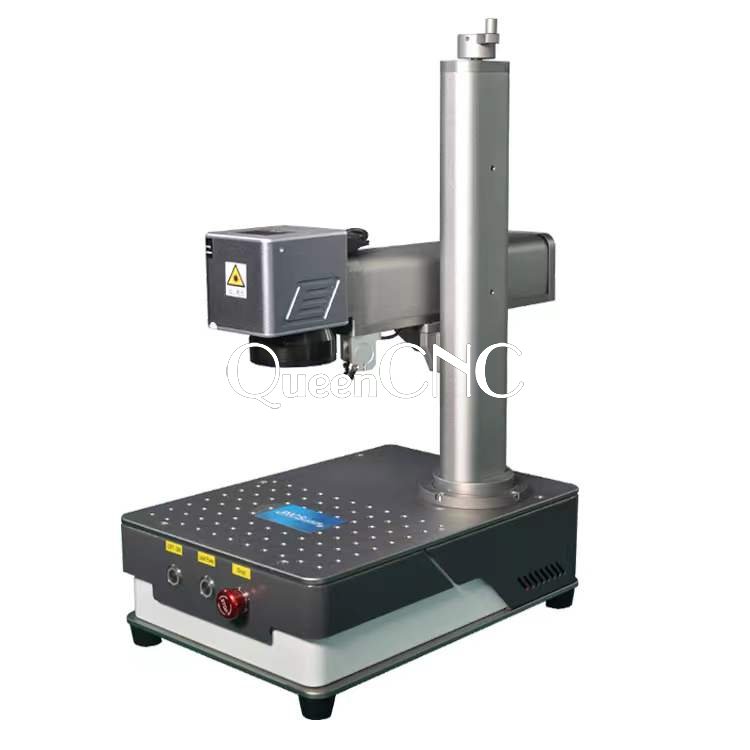

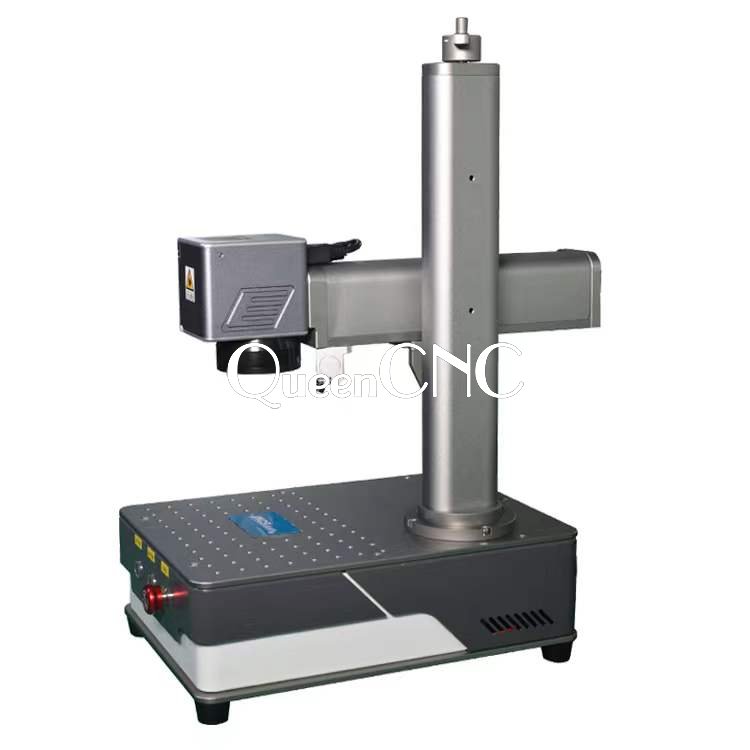

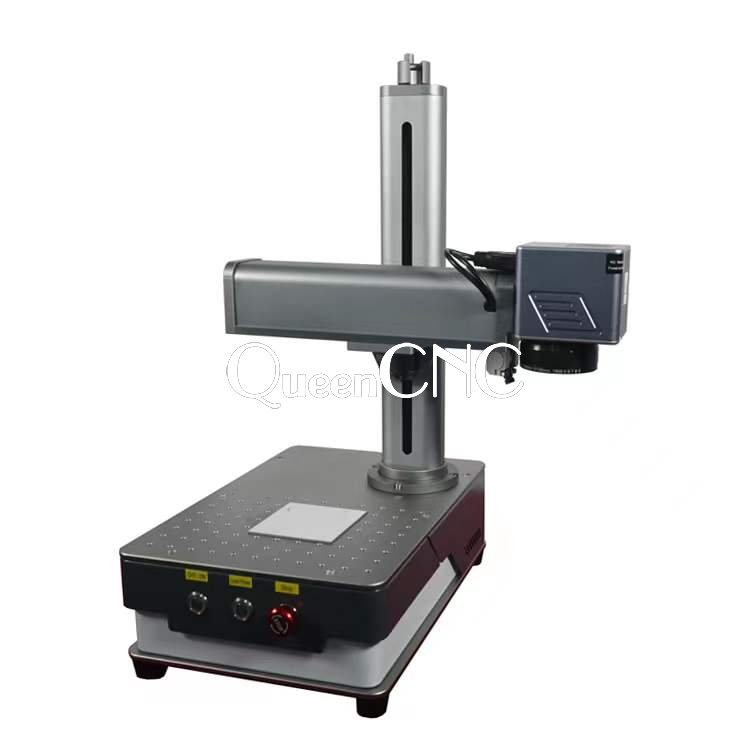

Fiber laser marking machine
| Type specification | QN-F20 | QN-F30 | ||
| Wave length of laser | 1064nm | |||
| Laser repetition frequency | 20kHz~100kHz | |||
| Laser power | 20W | 30W | ||
| Marking scope | 70*70 / 100*100 / 200*200mm | |||
| Laser sources | Fiber module | |||
| Laser Head | Scanning head | |||
| The minimum focus facula diameter | 20μm | |||
| Minimal character | 0.01mm | |||
| Marking speed | ≤7000mm/s | |||
| Repeated accuracy | 0.0025mm | |||
| Cooling ways | Force-air Cooling | |||
| Power supply | 220V/ 50Hz/2kVA | |||
| Process Material | All kinds of metal and part of Non-metal Materials | |||
| Support format | PLT, BMP, DXF, JPG, TIF, AI etc | |||
| Package | Standard Crate for export | |||
