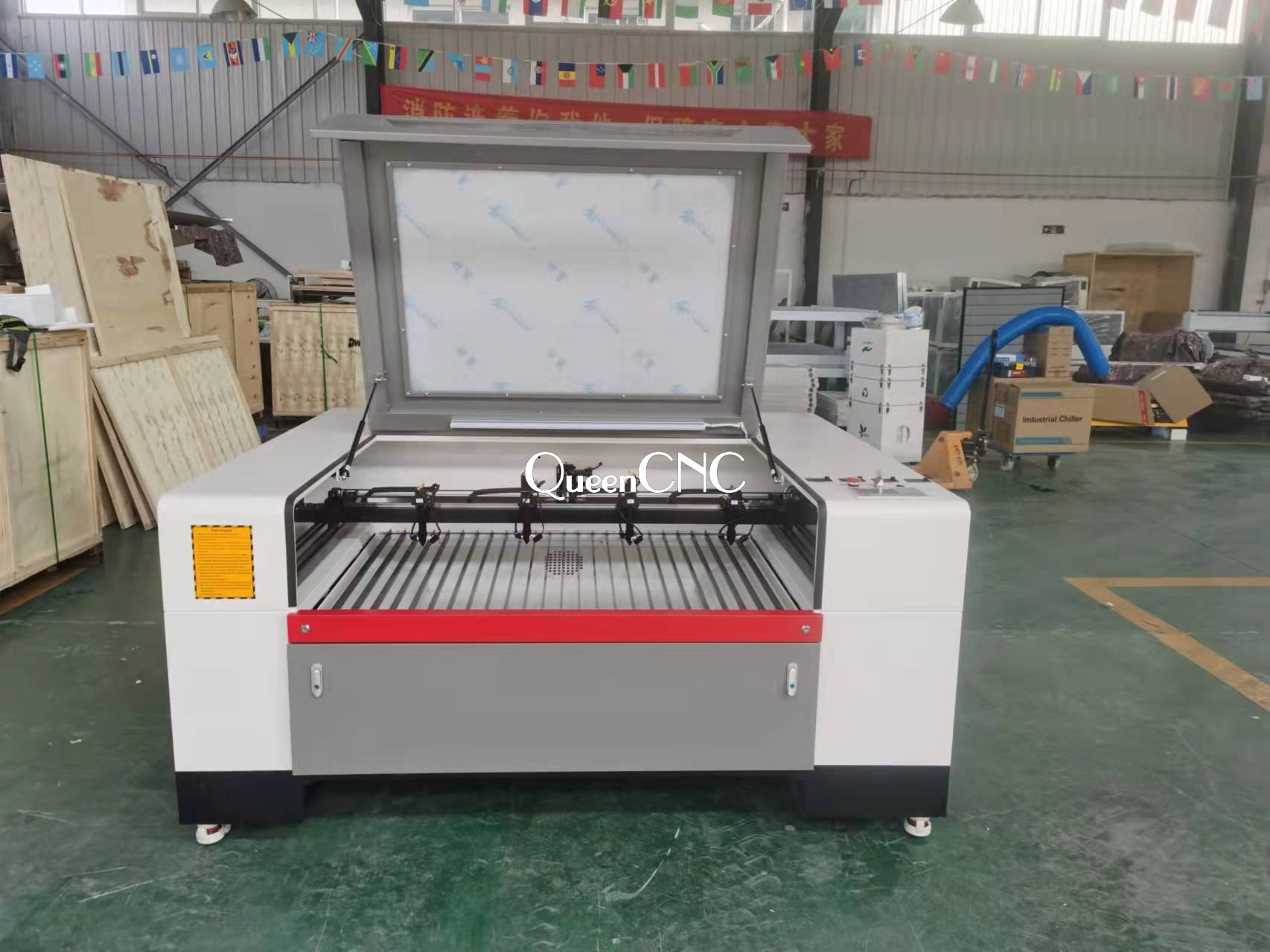

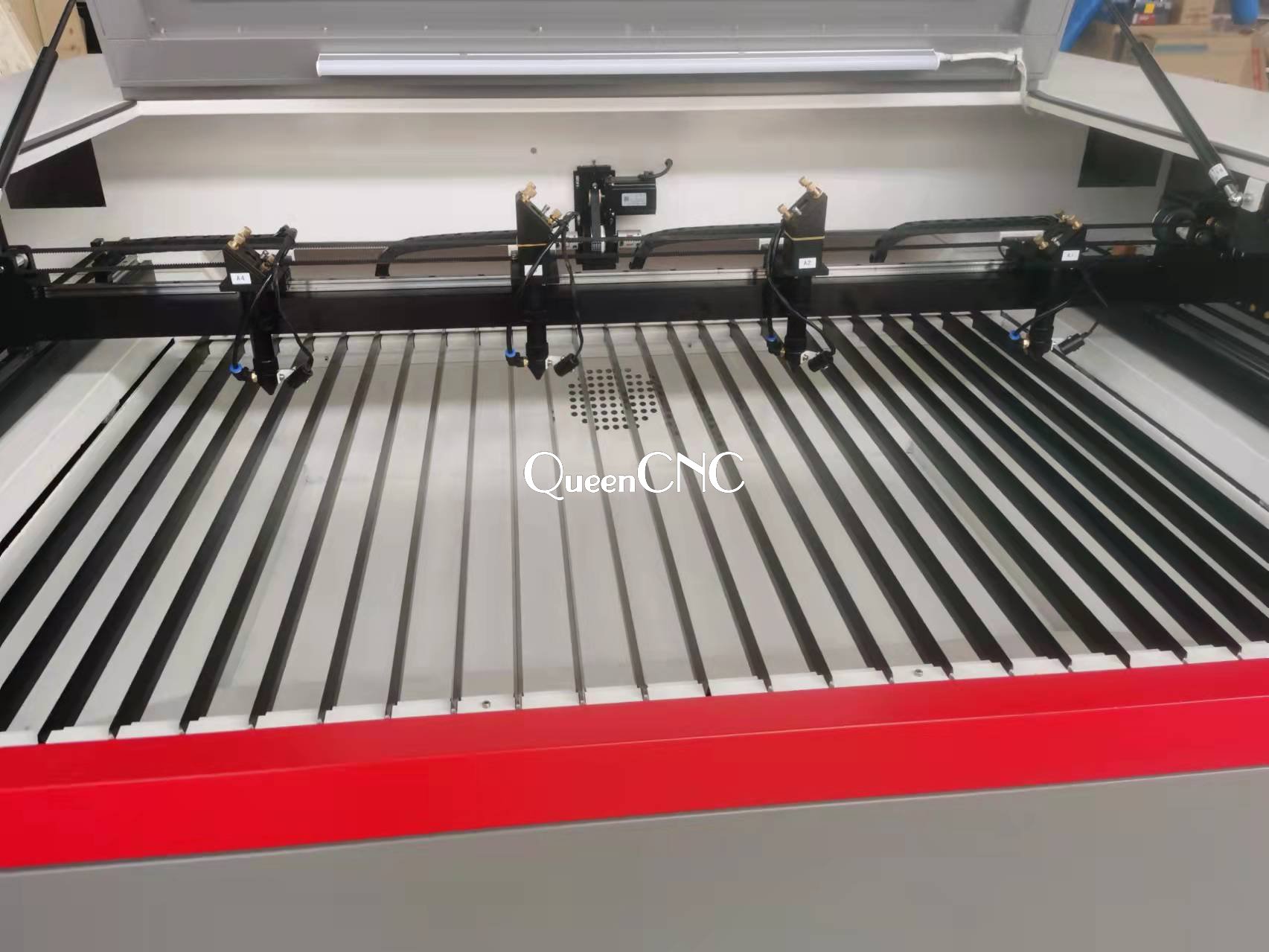

Co2 laser engraving and cuttin
| model | QN-1610 |
| Cutting area | 1600x1000mm |
| Machine dimension | 2200x1930x1110mm |
| Packing dimension | 2330x2250x1290mm |
| Laser type | Hermetic and detached CO2 glass laser tube |
| Laser power | 60w, 80w, 100w, 120w, 150w (high quality, long lifespan) |
| Cooling way | Water cooling and protection system |
| Laser energy control | 0.1~100% set by software and control panel |
| Speed control | 0.1~100% set by software and control panel |
| Location accuracy | ±0.01mm |
| Engraving speed | 0.1~1000mm/s |
| Cutting speed | 0.1~500mm/s |
| Control software | RDWorksV8 |
| Display panel | LCD display |
| Supporting format | BMP, PLT, DXF, AI, DST |
| Software support | Support AutoCAD,CorelDraw, Photoshop, adobe Illustrator |
| Operating environment | Windows98/2000/XP/win7/8, vista |
| Working voltage | AC110V/60HZ or AC220V/50HZ |
| Min.shaping character | Letter: 1mm*1mm |
| Running environment | Temperature:0-45°, Humidity: 5%-95% |
| Memory Buffer | 128MB |
| Gross power | <2000W |
| Net weight | 400KG |
| Gross weight | 500KG |
| Standards parts | Water pump, air pump, air exhaust fan etc. |
| Optional parts | cw5000 water chiller, cw3000 water chiller, overhead ccd camera |
| Spare parts | Laser tube, mirror and lens |
