Specs and features of QN9060 laser engraving machine:
1. The open software interface, compatible with Autocad, Coreldraw, went sculpture, Photoshop and other vector graphics design software.
2. 2. The machine is equipped with blade and honeycomb table, two working surfaces.

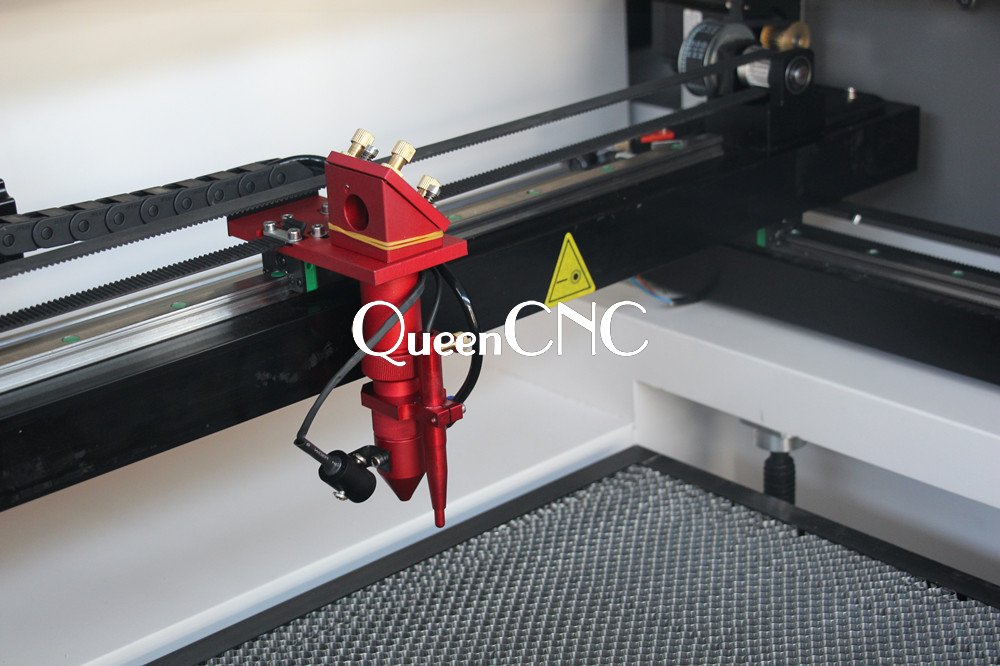

3. 3. CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, long service time.
4. 4. Brand quality lens and mirrors. High transmittance, good focusing, reflection effect.
5. 5. Ruida Controller system, support online/offline working, English language system, adjustable cutting speed and power.
6. 6.Equipped with water break protector, better protect laser, extend the life of laser.

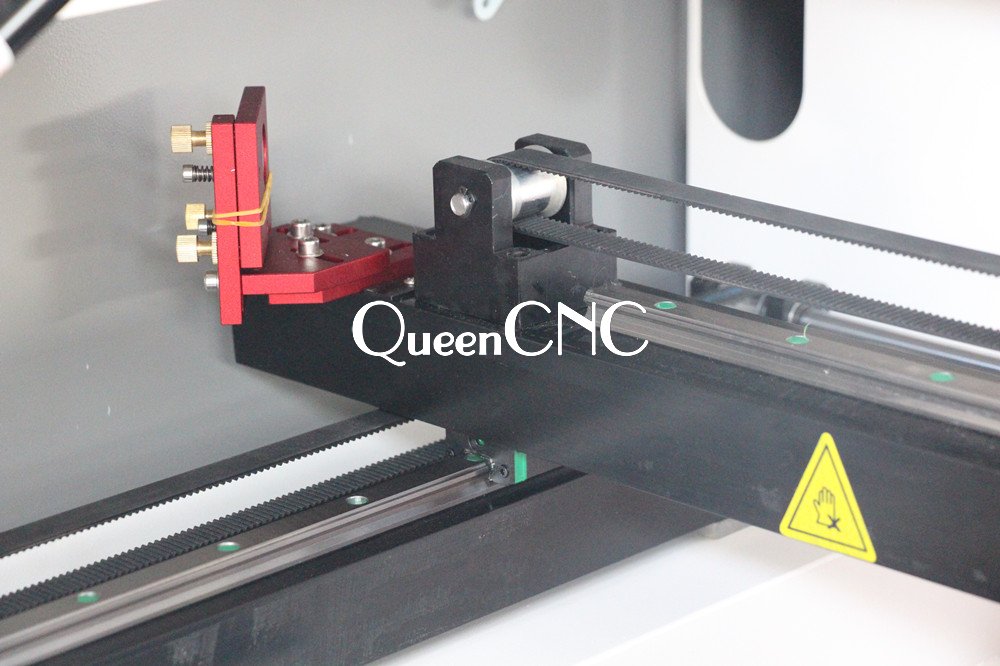

7. 7. High accuracy stepper motors and drivers,belt transmission,linear square guide rails to make the cutting edge smooth and in high precision.
8. 8. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the
9. workpiece length.
Model No.
6090
Working Area
600x900mm
Laser Power
60W/80W/100W/150W
Laser TypeLaser
C02 Sealed Laser Tube,Water-cooled,10.6μm
Engraving Speed
0-60000mm/min
Laser Output
1-100% Software Setting
Reposition Accuracy
±0.01mm
Power Supply
220V/50HZ,110V/60H2
Operating Temperature
0-45°C
Operating Humidity
5-95%
Min. Shaping Character
English 1.0x1.0mm
English 1.0x1.0mm
Windows
Graphic Format Supported
PLT,DXF,BMP,AI,DST etc
Software Supported
TAJIMA, CorelDraw, Photoshop, AutoCAD
Cooling Mode
Water-cooling and Protection System
Applicable Materials:
Wood, bamboo, jade, marble, organic glass,crystal,plastic,garments,paper,leather,penelope,rubber,ceramic,glass, textile cutting,industrial prototyping, industrial marking, sign making, medical part marking, aerospace, architectural modeling, specialty advertising, plastics fabricating ,flexo, point of purchase, rubber stamps, picture framing, gift manufacturing, bar coding,engraving ,gasket cutting, puzzles, cabinetry, awards & recognition, personalized pens, door pulls, cut scroll patterns, games & toys, finger joints, inlays & overlays, fraternity paddles, music boxes, light switch plates, jewelry boxes, parts marking, router templates, desk sets, scrap booking, photo albums, jewelry, crafts, Italian charms.
Applicable Industry:
Advertisement, arts and crafts, leather, toys, garments, model, building upholster, computerized embroidery and clipping,
packaging and paper industry. Samples:
