2000x7000mm co2 laser cutting machine with 8 heads for Braz

Release Time:2025-07-02 16:14 Reading Times:

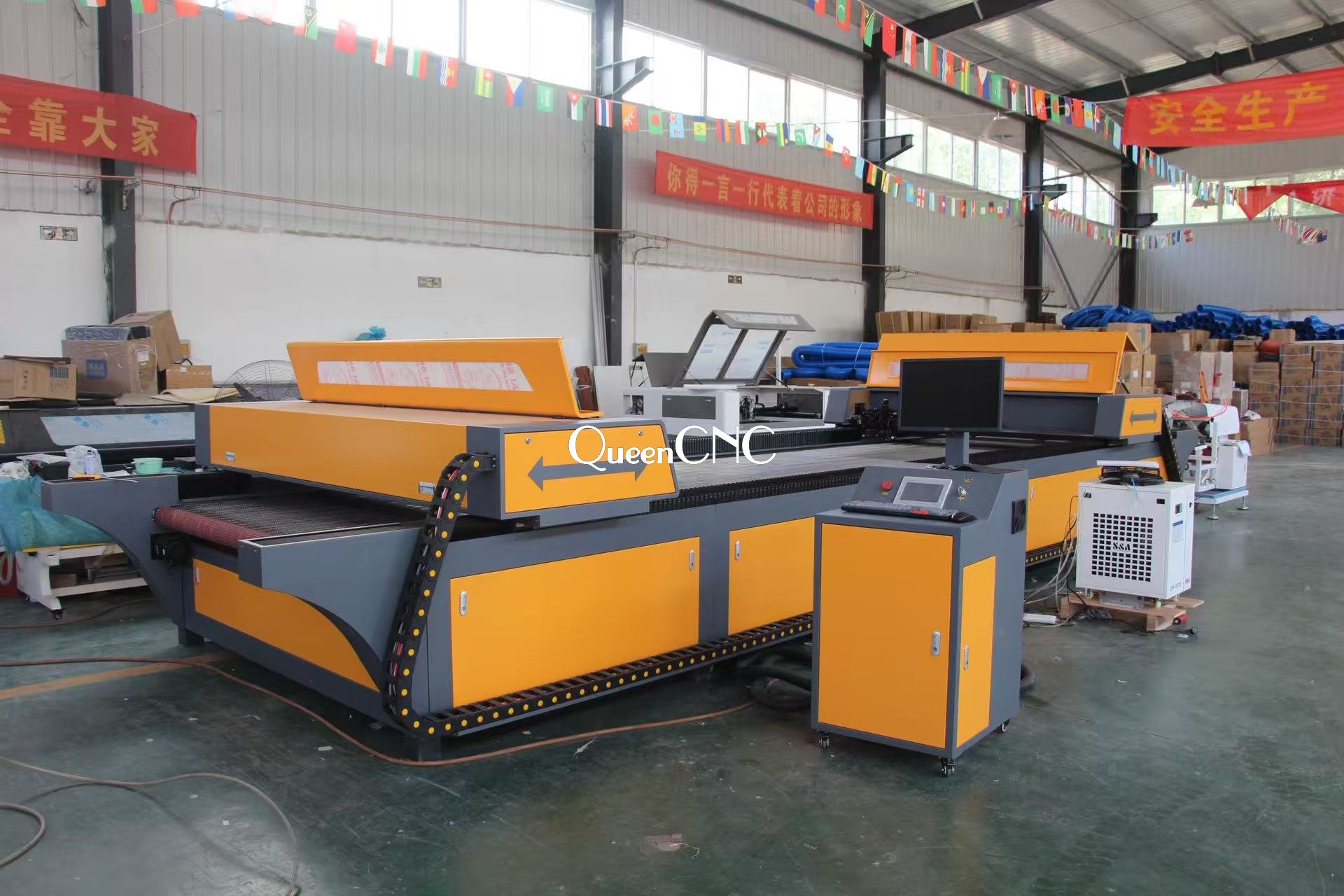

2000x7000mm co2 laser cutting machine with 8 heads for Brazil customer

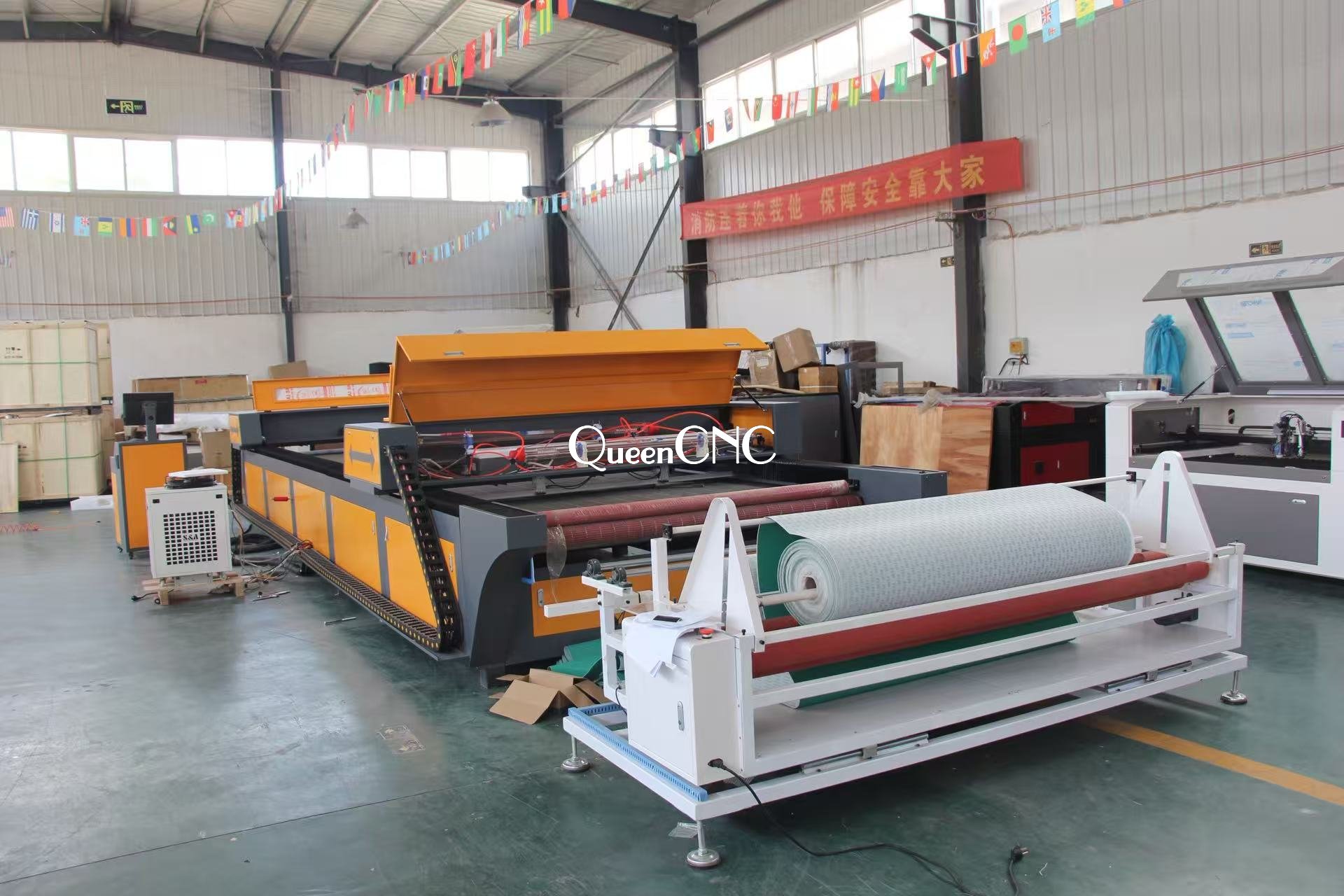

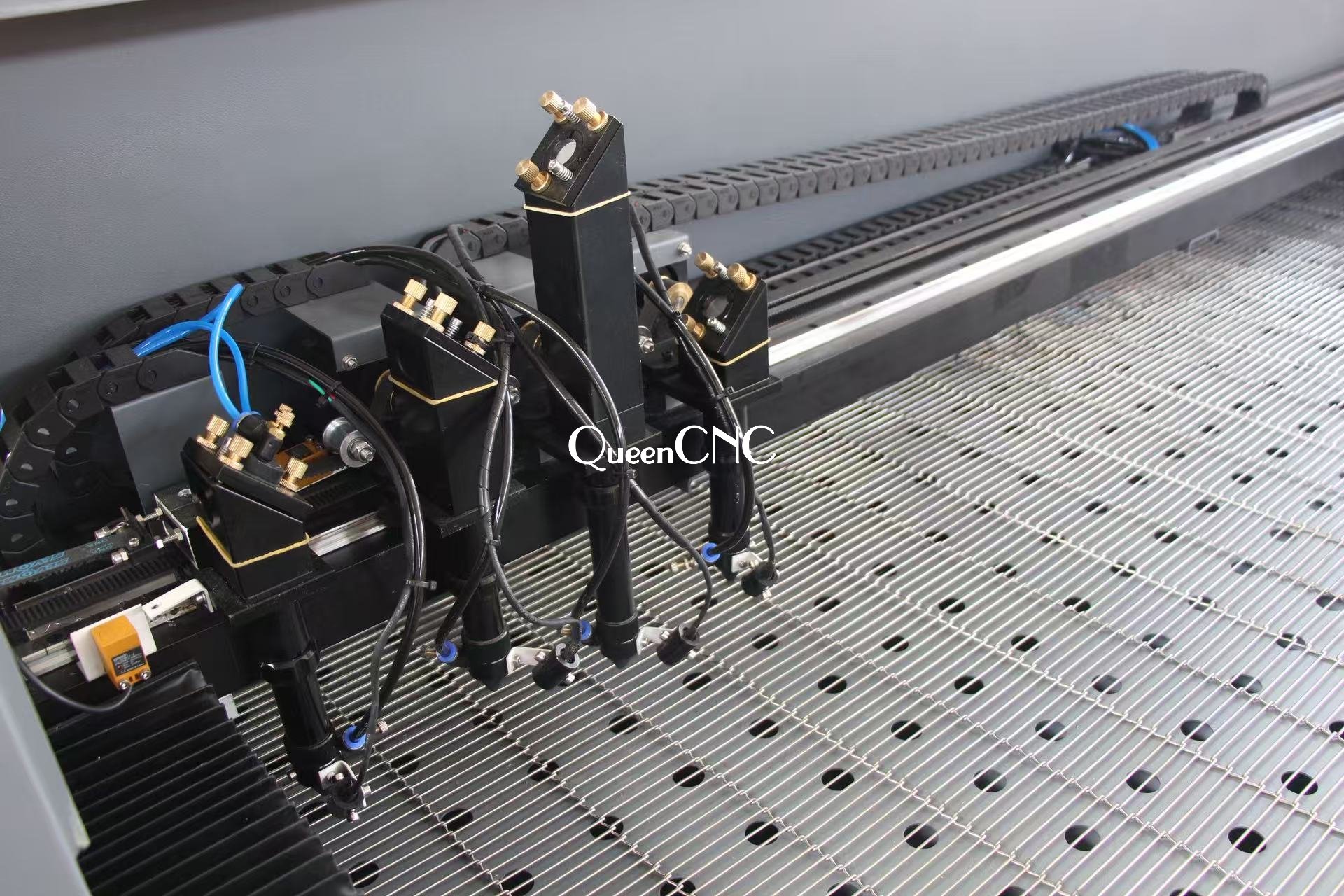

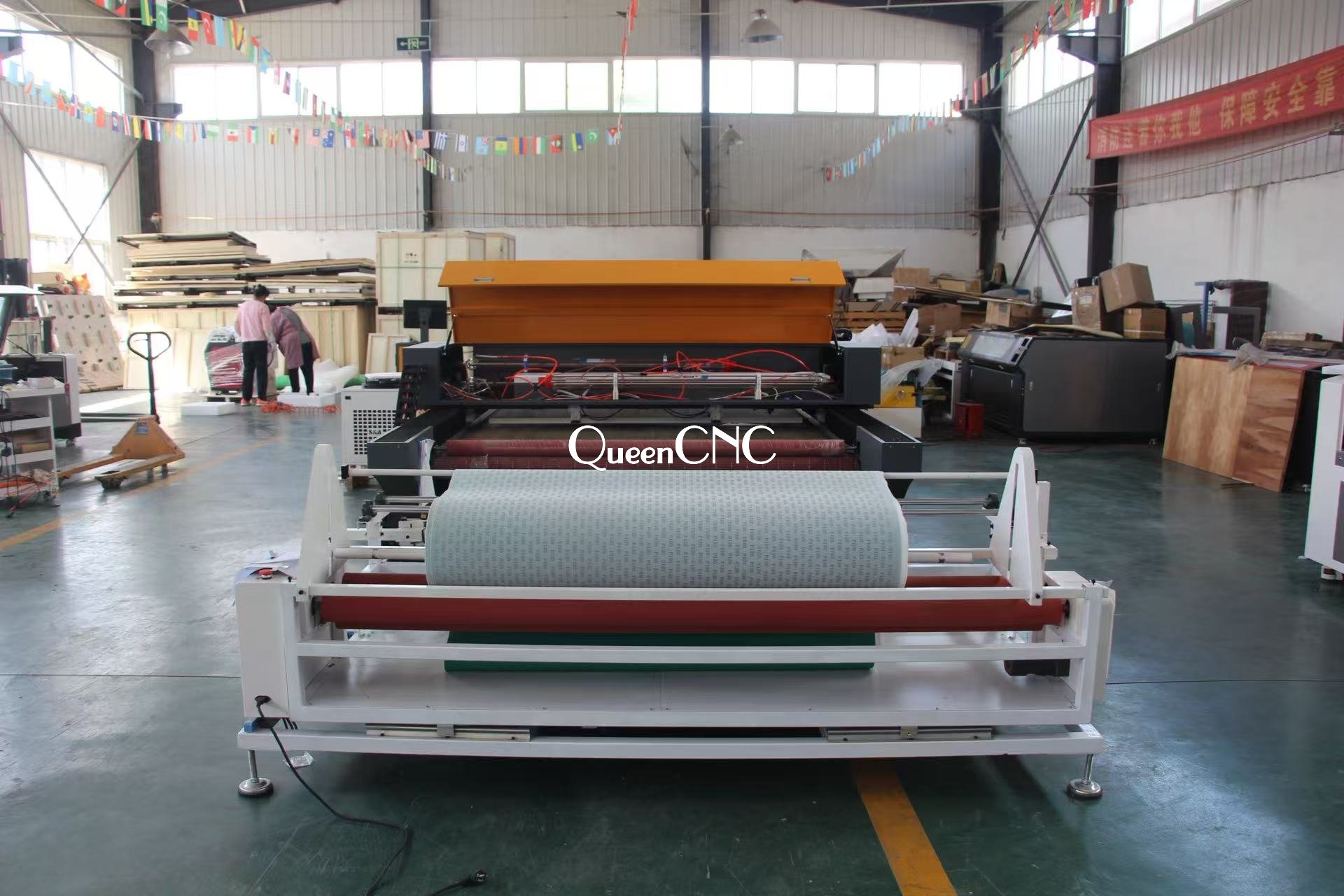

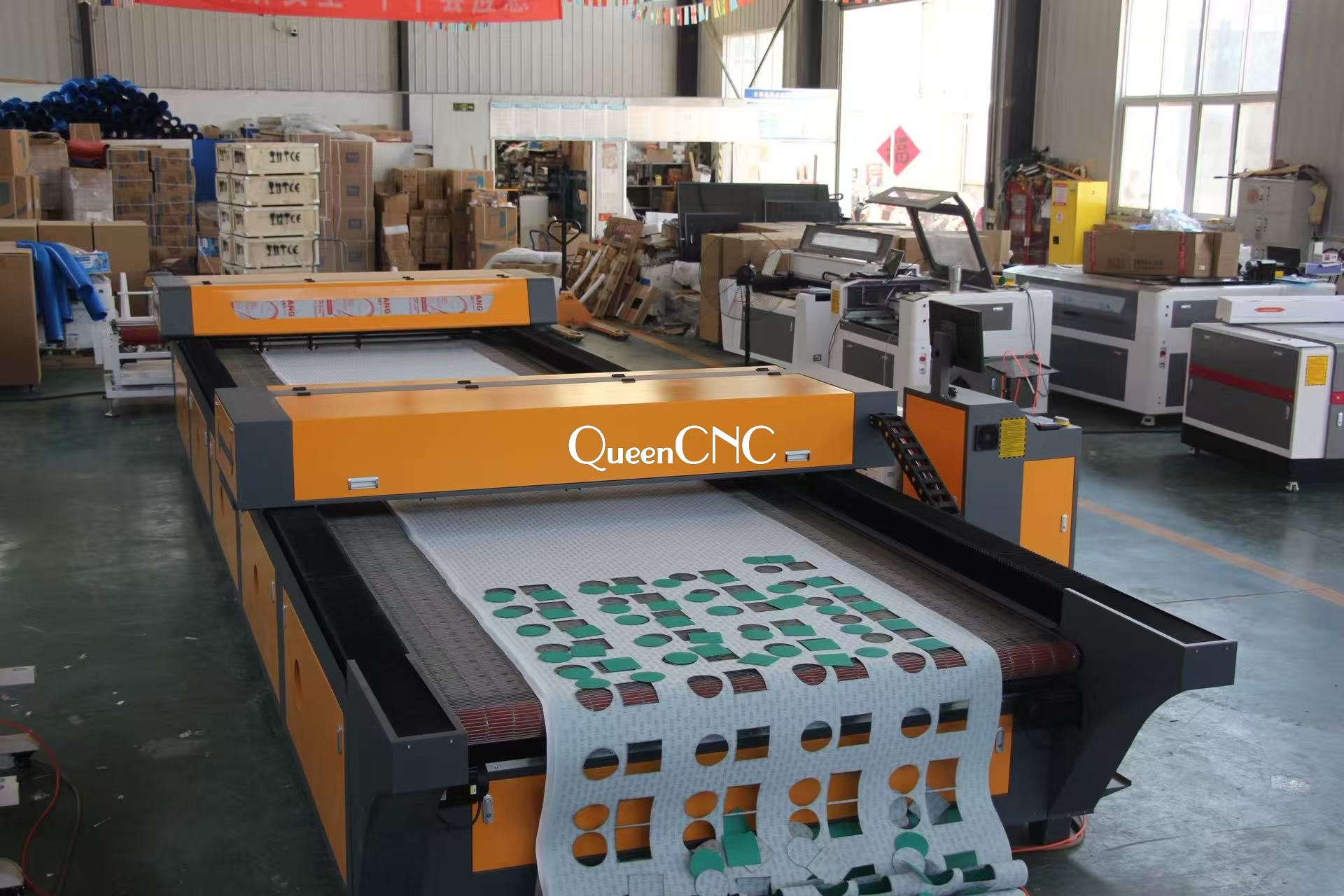

This machine was ordered by a customer who used for cutting abrasive paper.machine adopt auto feeding sytem and 8 heads working independently which will highly improve working efficiency.

Machine main specs:

Effective working area	2000*7000mm dual gantry
Driver and motor	Leadshine hybird servo motor 758
Laser type	Hermetic and detached co2 laser tube
Laser power	8 pieces Yongli 150w laser tube(H6) and power supply,each head working independently
Control card	RD6612U control card,support Portuguese
Water chiller	Two sets CW6000AN water chiller

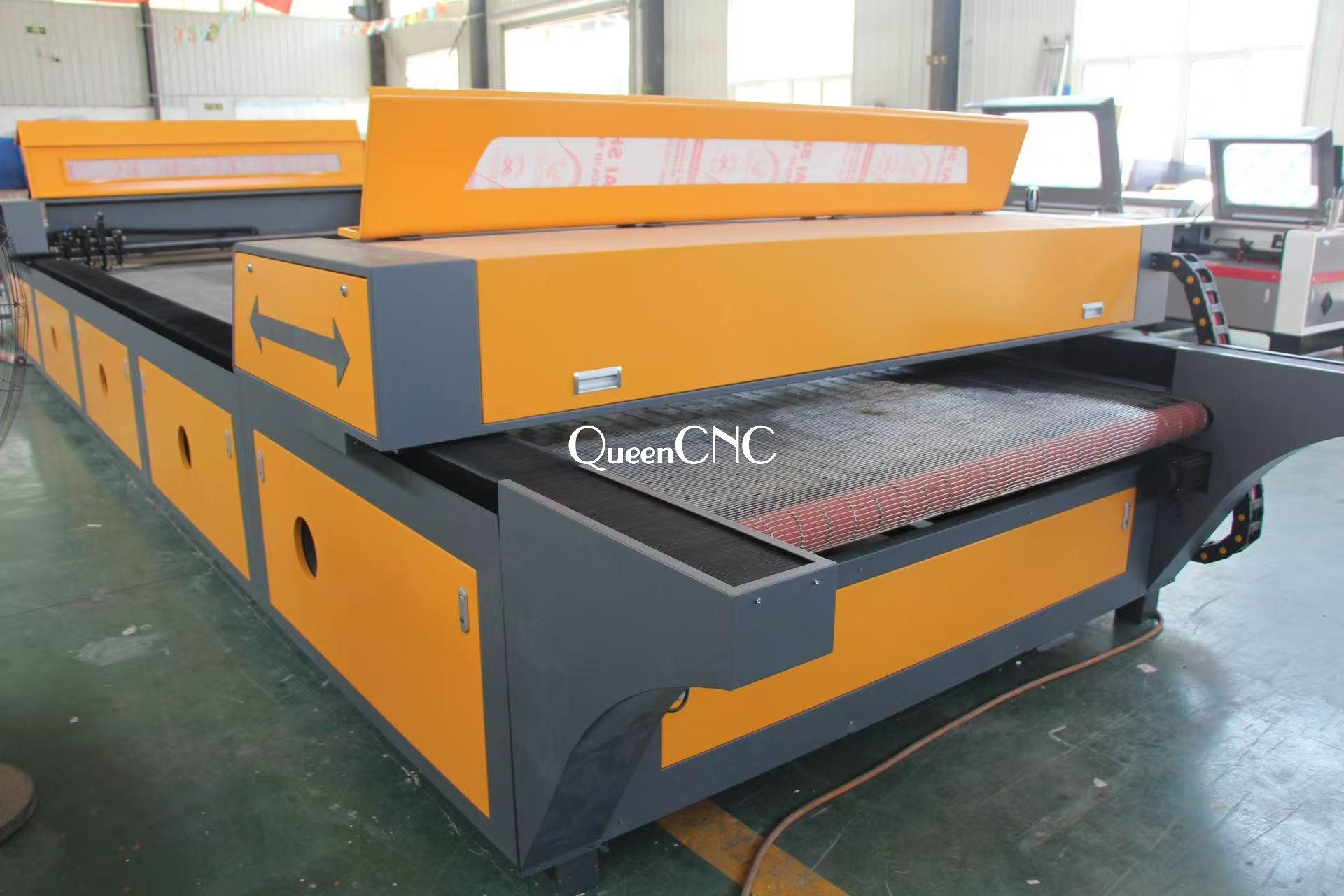

Working table	Autofeeding steel table

Cooling down method	Water cooled and protection system
MAX Engraving speed	0-75000mm/min
MAX cutting speed	0-40000mm/min
Resolution	4500dpi
Mini character	English 1*1mm
Lens and mirror	US II-VI lens
System environment	WINDOW2000/WINDOW XP/WIN 7/WIN10
Graphics format supported	BMP/HPGL/PLT/DST/AI
Compatible software	CorelDraw/AutoCAD/Photoshop
Guid rail	Taiwan HIWIN linear guider
Transmission	Y axis rack and reducer transmission X axis belt transmission
deviation correcting device	Yes
Fan	Yes,550w
Interface	USB
Red light positioning	Yes
Power source	AC220v,50/60HZ,single phase
Net weight	2400KG
Gross weight	2500KG
