Standard 1325 CNC Router Machine (4x8ft) for Woodworking & Furniture

Technical Specifications

Working size 1300*2500*300mm
Machine table Vacuum table with T-slot
Spindle 4.5kw air cooled spindle
Spindle dust shoe Yes
Driver motor Leadshine servo motor 750w and drivers
Inverter Fuling inverter
Control system DSP control system
Linear rails T-win linear square rails imported from Taiwan
Z axis transmission TBI ball screw transmission
Transmission Rack and pinion
Tool sensor Yes
Limit switch Yes
Oiling system Yes
Voltage 220v, single phase, 50/60Hz
Max cutting speed 30m/min
Max engraving speed 45m/min
Machine frame Thicken steel welded, heavy duty design
Net weight 1200KG
Gross weight 1300KG

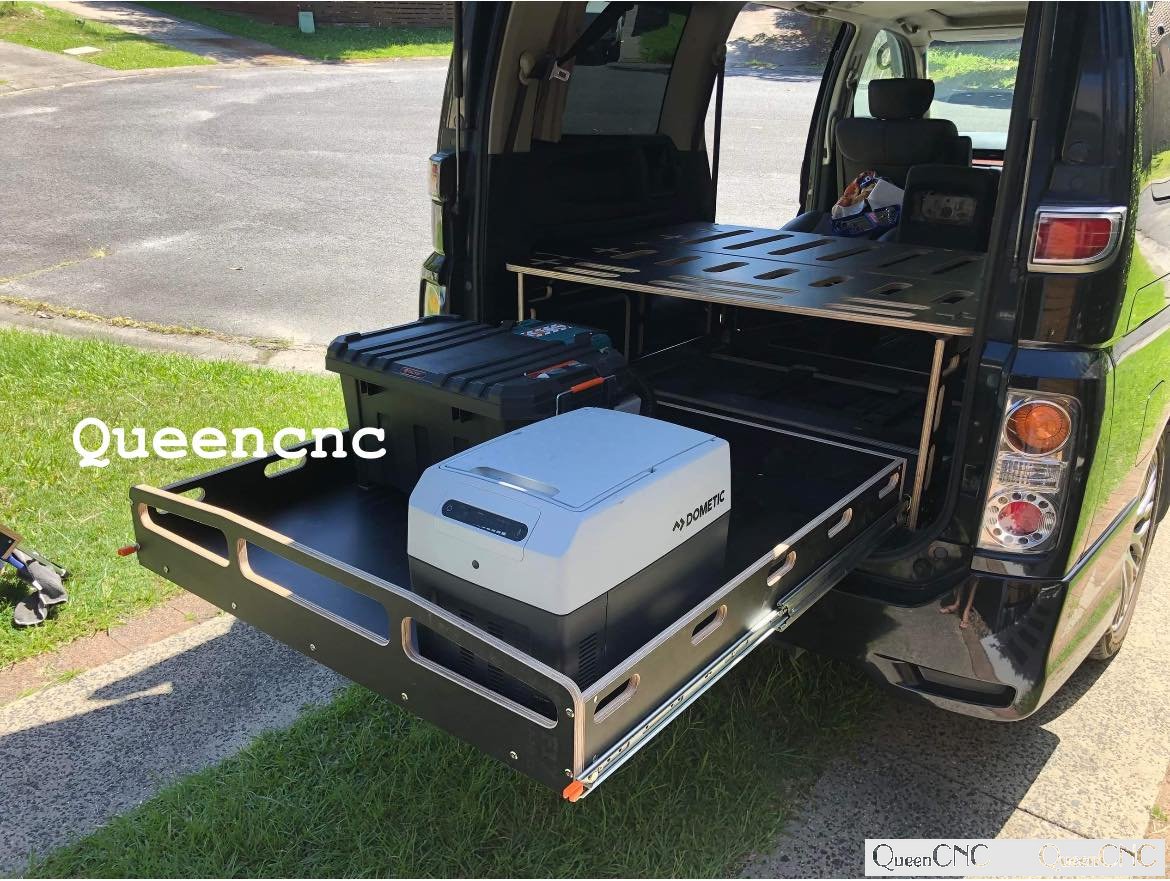

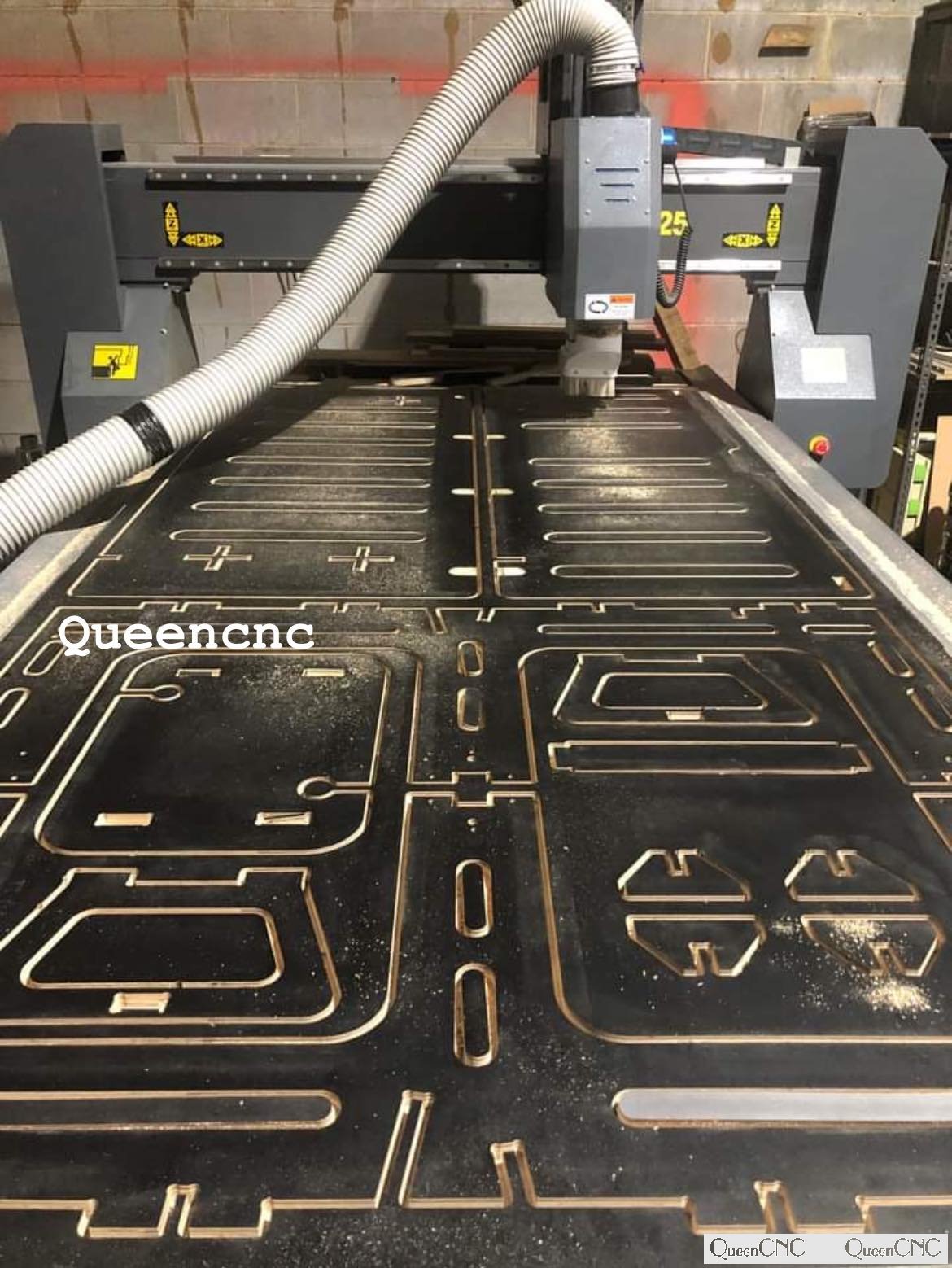

Samples:

Advantages of Queen 1325 Basic CNC Router

  • Industrial-Grade Steel Structure: Our 1325 frame undergoes a professional aging test and is processed by a 5-axis machining center. This prevents bed deformation over years of heavy use, unlike cheap aluminum-profile alternatives.
  • Precision Calibration (Not Just Assembly): Every guide rail is installed using Dial Indicator Calibration. We ensure every millimeter of the 4x8ft travel is perfectly leveled and aligned.
  • Full Hardware Integrity: Every mounting hole is precision-drilled by machine, ensuring maximum mechanical rigidity and long-term accuracy.
  • High-Torque Drive System: Equipped with genuine Leadshine drives, providing smooth cutting for MDF, plywood, acrylic, and solid wood without losing steps.
  • 24-Hour Rigorous Testing: Before shipping, every basic 1325 undergoes a 24-hour continuous break-in period.

Frequently Asked Questions

Q1: Is this machine suitable for a 4x8 (1220x2440mm) sheet? A: Yes, perfectly. The 1325 model (1300mm x 2500mm) is specifically designed to handle standard 4x8ft international sheets with extra room for clamping.

Q2: I am a beginner. Is the 1325 easy to operate? A: Yes! We provide a "Plug and Play" solution with tutorials and 24/7 technical support.

Q3: Can I upgrade this machine later (e.g., adding a rotary axis)? A: Yes, our design supports future upgrades like a rotary axis for table legs.
