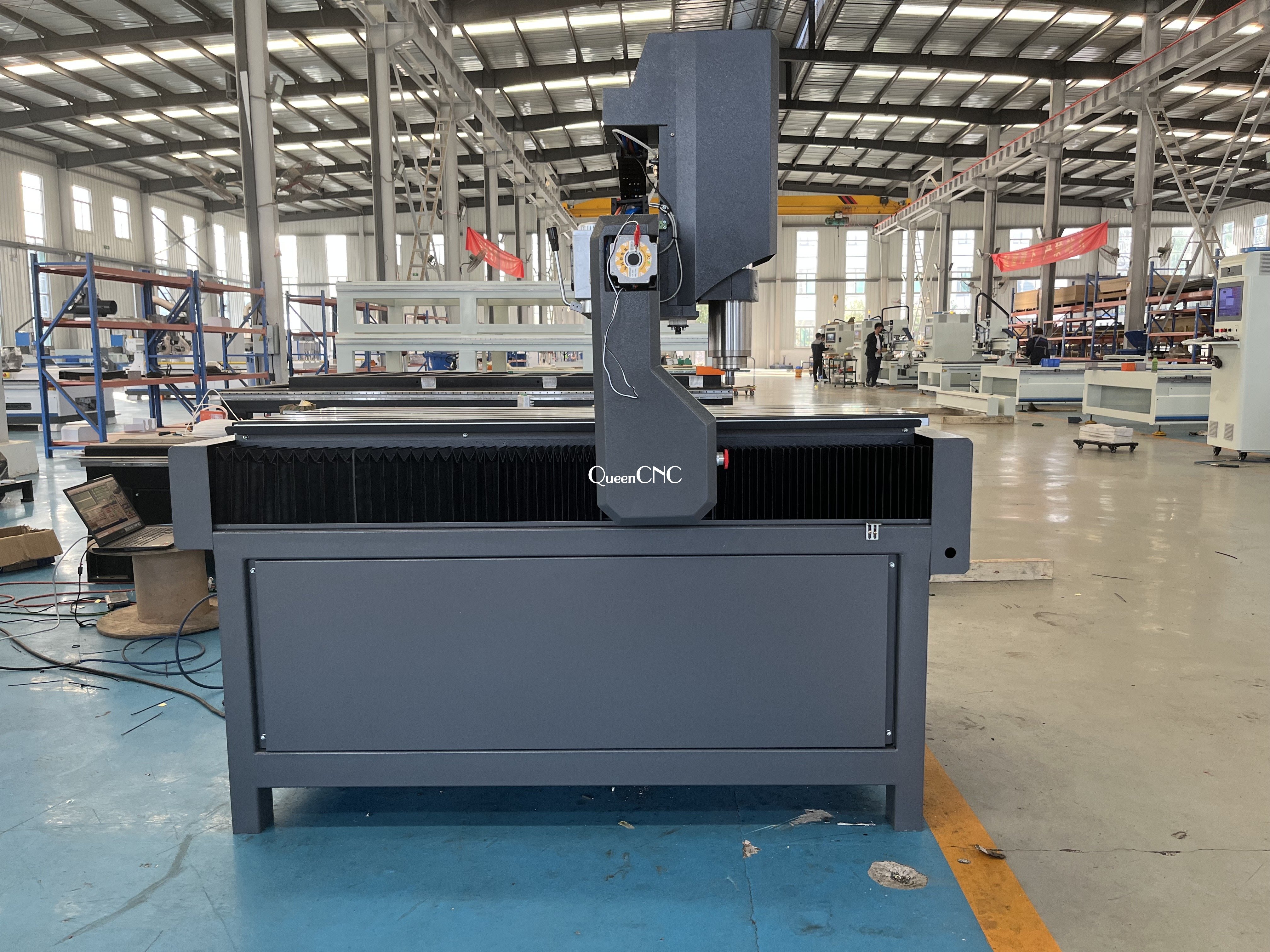

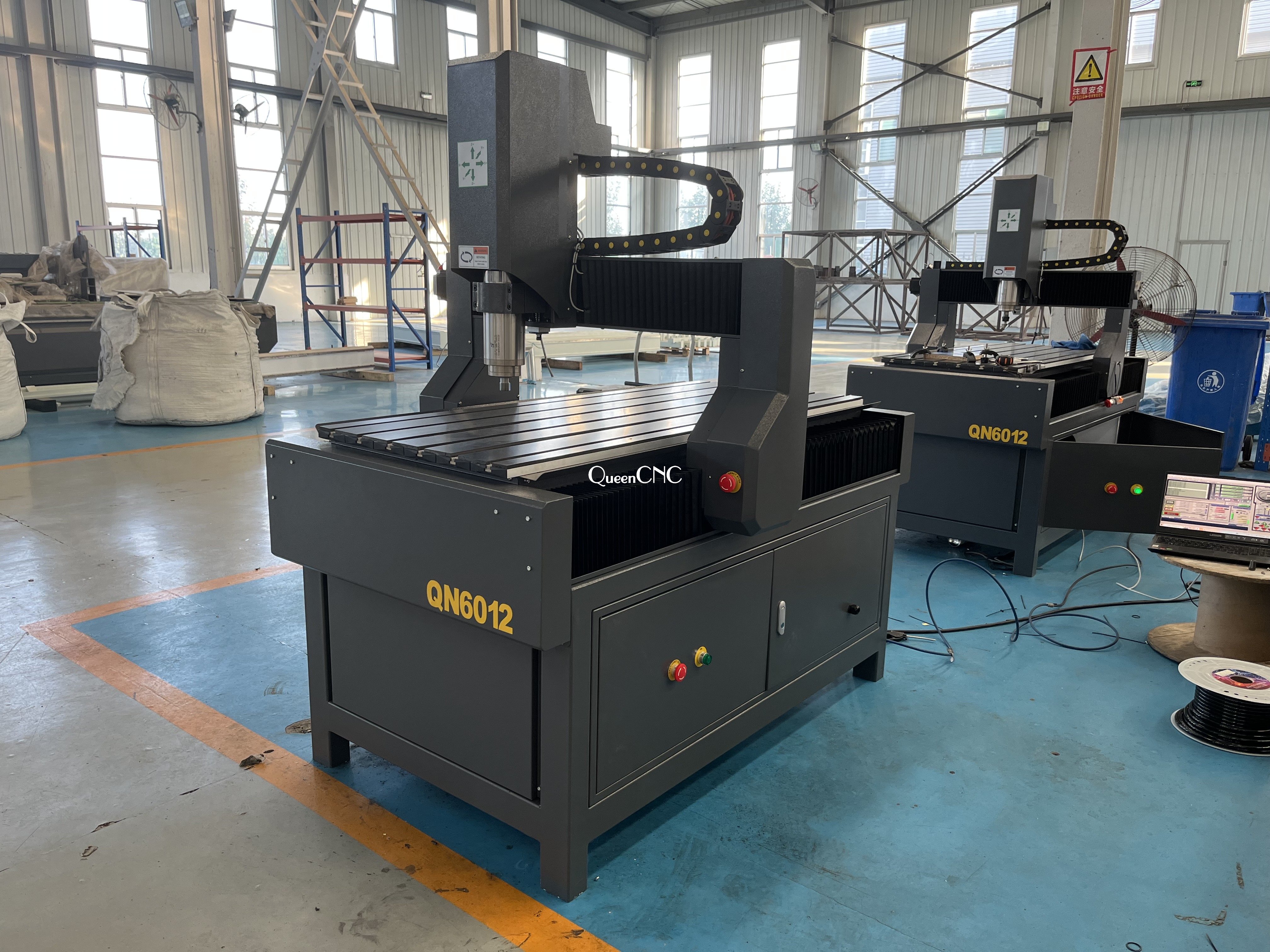

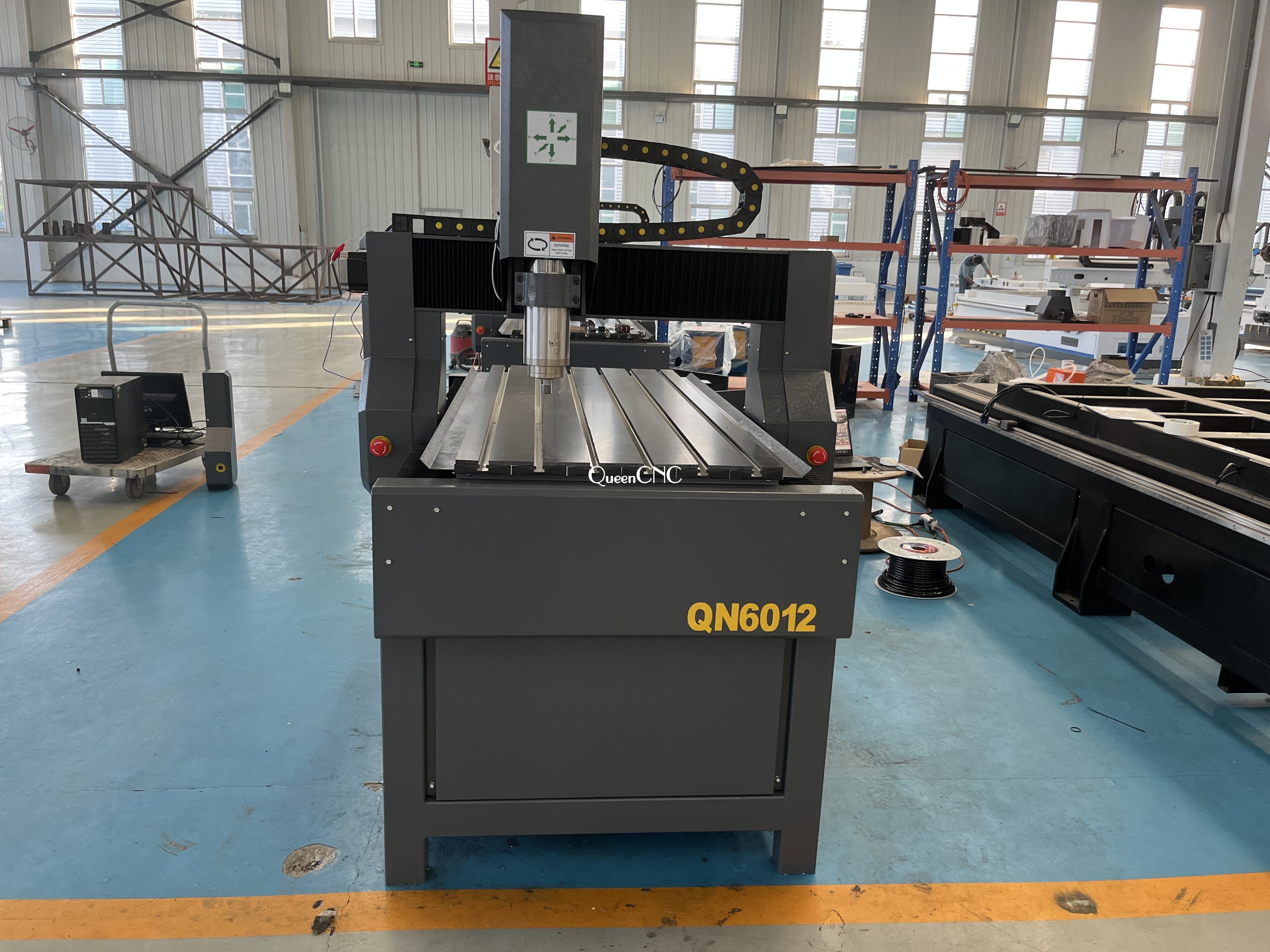

Cnc Router
| Working size | 600*1200*200mm |

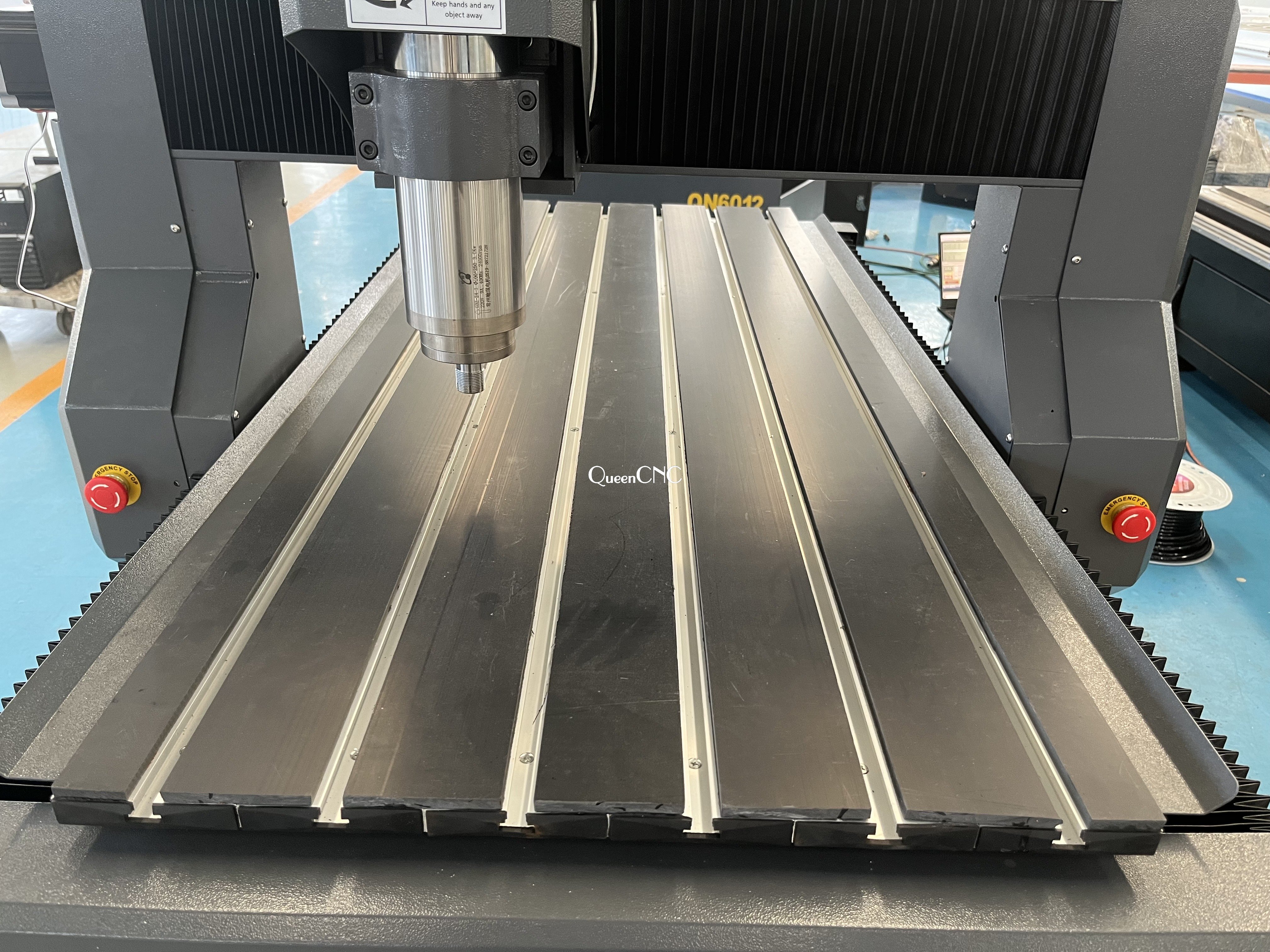

| Machine table | Thicken alloy aluminum table |
| Spindle | 3.0kw air cooled spindle |
| Spindle dust shoe | Yes |
| Driver motor | Leadshine 450B Stepper motor and drivers |
| Inverter | 3.7kw Fuling inverter |
| Control system | Mach3 control system |
| Linear rails | linear square rails imported from taiwan |
| Z axis transmission | TBI ball screw transmission |
| Transmission | Ball screw drive |
| Tool sensor | Yes |
| Limit switch | Yes |

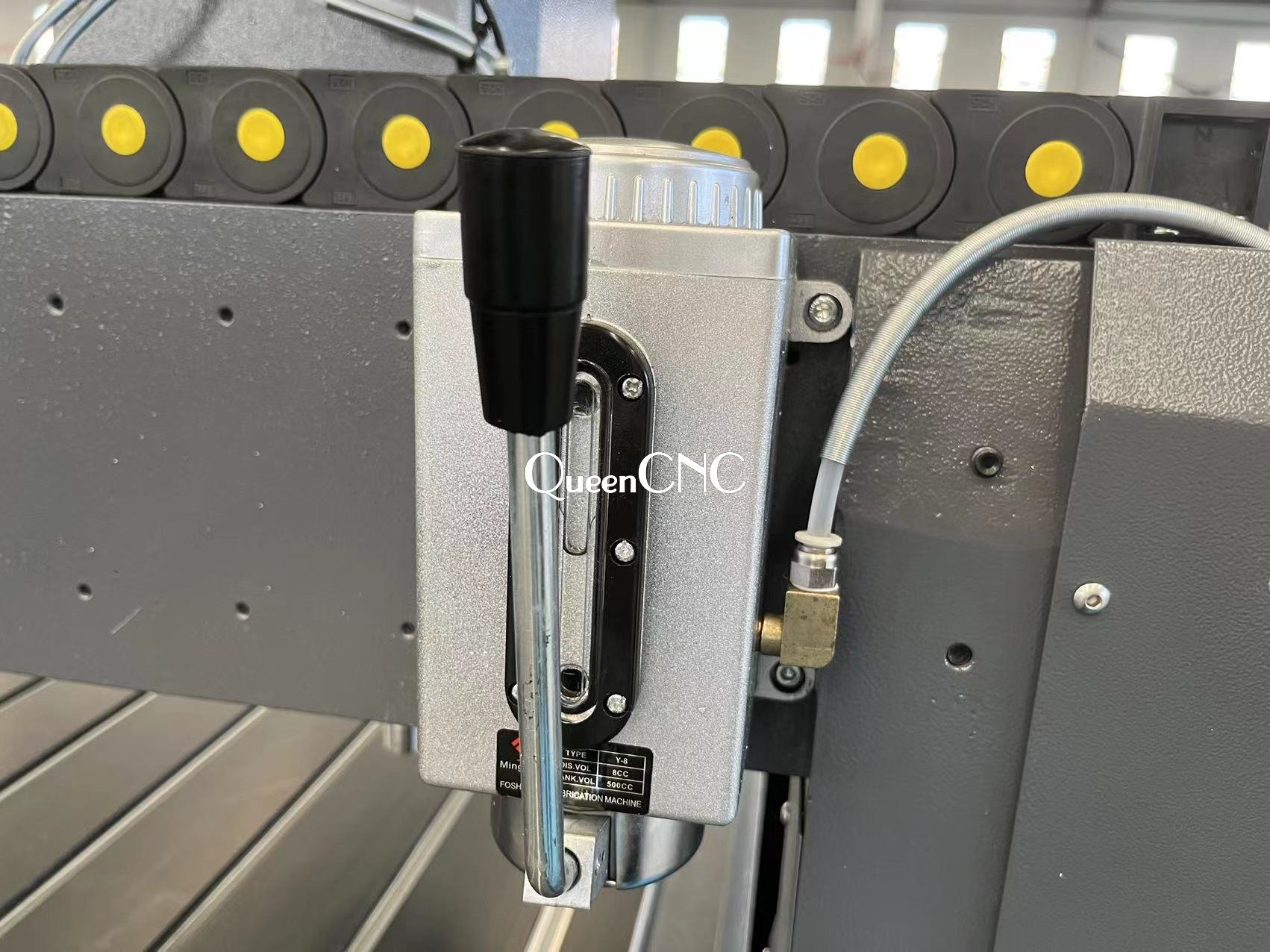

| Oiling system | Yes |
| Voltage | 220v,single phase,50/60HZ |
| Max cutting speed | 20m/min |
| Max engraving speed | 35m/min |
| Machine frame | Thicken steel welded ,heavy duty design |
| Net weight | 400KG |
| Gross weight | 450KG |
