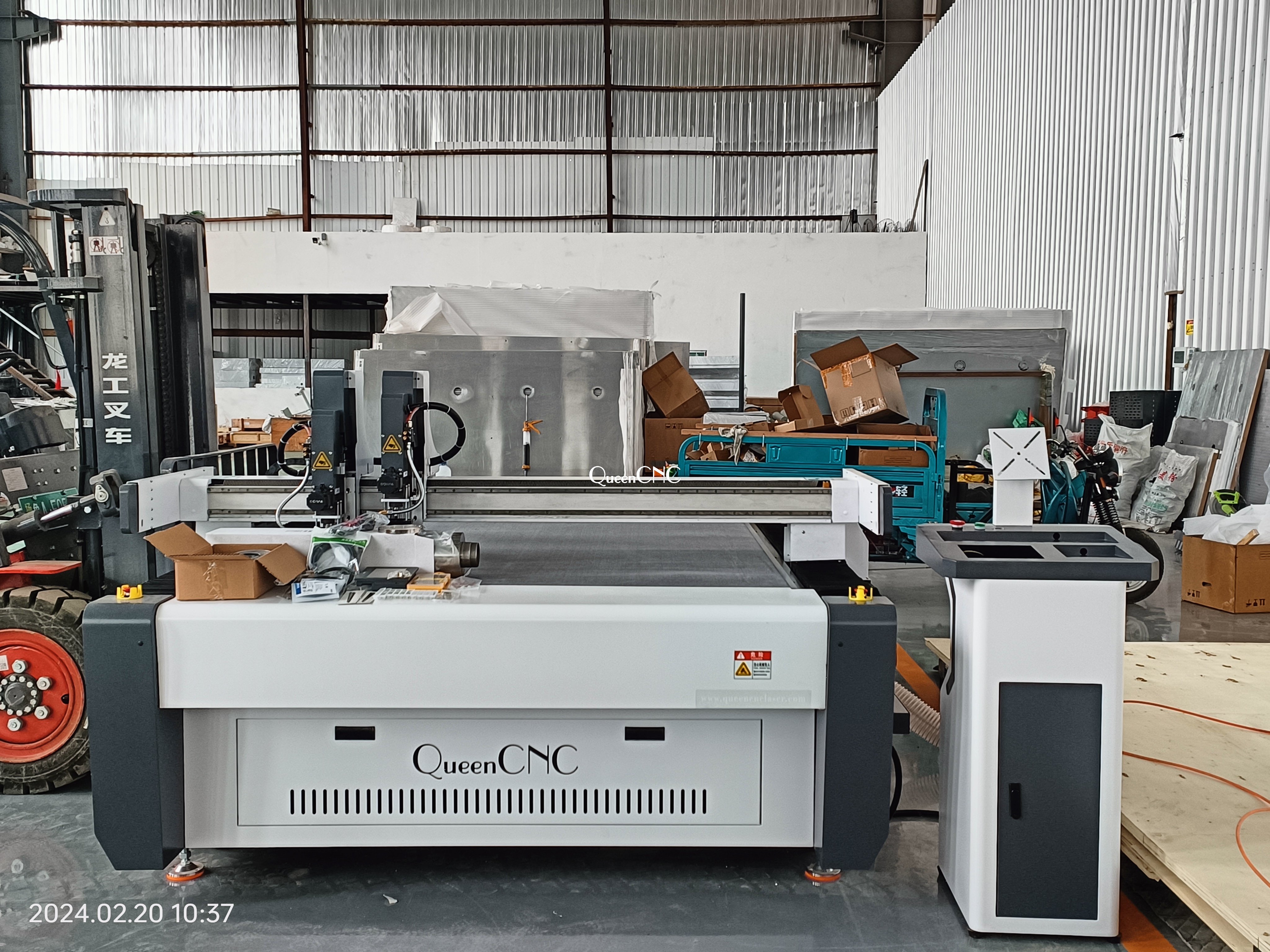

Cnc digital cutter
| X working size | 1600mm |
| Y working size | 2500mm |
| Z working size | 100mm |

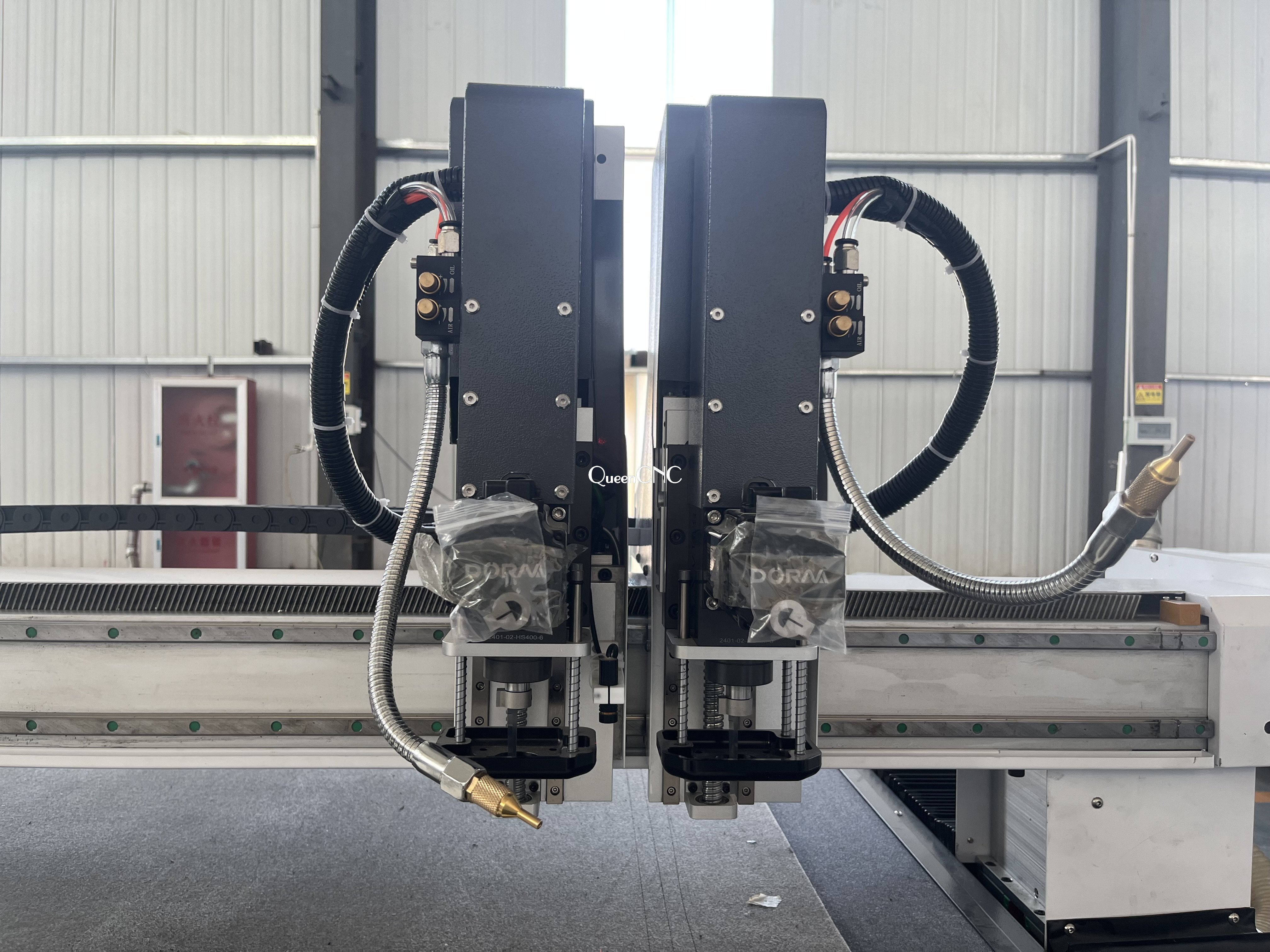

| Cutting head | Dual oscillating knife heads |
| Display way | English LED touch screen |

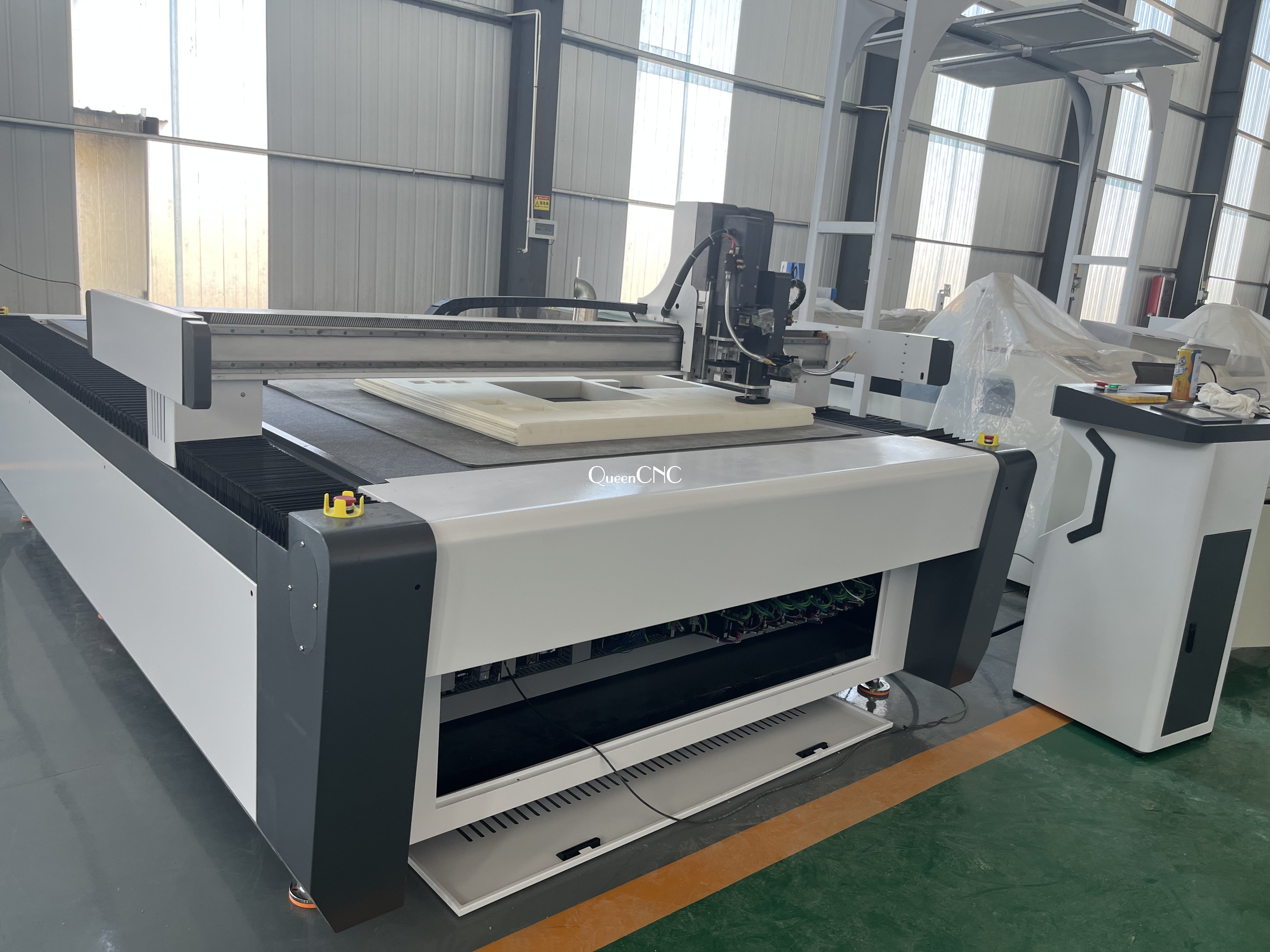

| Machine table | Suction Table, suitable for textile, sponge and other soft material |
| Data transfer way | Intel |
| Vacuum pump | 7.5KW water type vacuum table |
| Driving system | servo driver and motor |
| Control system | Ruida controller |
| Guiding system | Taiwan TBI 20 |
| Tool sensor | with |
| Transmission | Y rack pinion, XZ synchronous steel belt |
| Cutting speed | 800-1200mm/s |
| Traveling speed | 50m/min |
| Weight | About 1200kgs |
| Power | 220v,single phase power |
| Software | Autocad, machine has this software |
| Machine weight | 1300KG |
